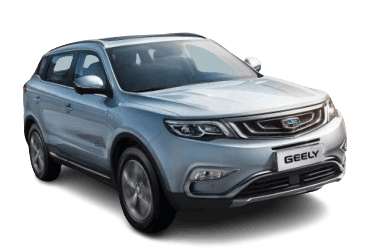

This article provides detailed fuse box diagrams and descriptions for the Geely Atlas (first-generation / chassis code NL-3), covering model years 2016 through 2022.
Fuse IF20 in the passenger compartment controls the cigarette lighter circuit.
Passenger Compartment Fuse Box
The fuse box is located on the driver’s side, behind the access panel.
Access panel location.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| IF01 | Left power windows | 20 |
| IF02 | Right power windows | 20 |
| IF03 | Cabin HVAC blower motor | 40 |
| IF05 | Rear window wiper | 10 |
| IF08 | Climate control module (A/C) | 10 |
| IF09 | Ignition circuit (IG2) | 10 |
| IF10 | Power exterior mirrors | 10 |
| IF11 | Power sunroof | 20 |
| IF12 | Heated windshield | 10 |
| IF13 | Steering column combination switch | 10 |
| IF14 | Ignition circuit (IG1) | 30 |
| IF15 | PEPS module (Manual Transmission) | 20 |
| IF16 | Airbag control module (SRS) | 10 |
| IF17 | Ignition circuit (IG1) | 10 |
| IF18 | Main accessory circuit (ACC) | 20 |
| IF19 | Rear 12V power outlet | 15 |
| IF20 | Front 12V power outlet / Cigarette lighter | 15 |
| IF21 | Accessory circuit (ACC) | 10 |
| IF22 | All-Wheel Drive (4WD) module | 15 |
| IF23 | Engine Control Unit (ECU) | 15 |
| IF24 | Central locking system | 20 |
| IF25 | PEPS module | 10 |
| IF26 | Gateway module | 10 |
| IF27 | Body Control Module (VSM) | 30 |
| IF28 | Front windshield wipers | 20 |
| IF29 | Brake lights | 10 |
| IF31 | Luggage compartment 12V power outlet | 15 |
| IF32 | Transmission Control Unit (TCU / AT) | 15 |
| IR01 | Cabin HVAC blower motor relay | - |
| IR02 | Ignition circuit (IG2) relay | - |
| IR03 | Power mirror unfold relay | - |
| IR04 | Power mirror fold relay | - |
| IR05 | Windshield wiper de-icer relay | - |
| IR06 | Ignition circuit (IG1) relay | - |
| IR07 | Accessory circuit (ACC) relay | - |
Engine Compartment Fuse Box
To access the main fuse box, remove the upper front bumper trim panel (1), then detach the trim panel on the left inner fender (2).
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| EF01 | Power seat adjustment | 30 |
| EF02 | Passenger compartment fuse box main fuse (ALT) | 60 |
| EF03 | ABS / ESP control module | 40 |
| EF04 | ABS / ESP hydraulic unit | 40 |
| EF05 | Front fog lights | 15 |
| EF06 | Climate control system (A/C) | 10 |
| EF07 | Radiator cooling fan (high speed) | 50 |
| EF08 | Radiator cooling fan (low speed) | 30 |
| EF09 | Engine Management System (EMS) | 30 |
| EF10 | Electronic Fuel Injection (EFI) | 15 |
| EF11 | Oxygen sensor (O2) | 10 |
| EF12 | Heated rear window | 20 |
| EF14 | Passenger compartment fuse box main fuse (B+) | 60 |
| EF16 | Left headlight high beam (see EF29) | 10 |
| EF17 | Right headlight high beam (see EF29) | 10 |
| EF18 | Engine Management System (EMS) module (JLD-4G20) | 10 |
| EF19 | Horn | 15 |
| EF20 | Fuel pump | 15 |
| EF22 | Low beam headlights (see EF24 and EF25) | 20 |
| EF24 | Right headlight low beam (see EF23) | 10 |
| EF25 | Left headlight low beam (see EF23) | 10 |
| EF26 | Fuel injectors (JLD-4G20) | 10 |
| EF27 | Driver seat heater | 15 |
| EF28 | Front passenger seat heater | 15 |
| EF29 | High beam headlights (see EF16 and EF17) | 20 |
| EF30 | Heated exterior mirrors | 10 |
| EF35 | Main fuse 1 | 150 |
| EF40 | Main fuse 2 | 100 |
| EF41 | Electric Power Steering (EPS) | 80 |
| ER01 | Front fog lights relay | - |
| ER02 | Climate control (A/C) relay | - |
| ER03 | Radiator cooling fan high-speed relay | - |
| ER04 | Radiator cooling fan low-speed relay | - |
| ER05 | Main relay | - |
| ER06 | Heated rear window relay | - |
| ER07 | High beam headlight relay | - |
| ER08 | Horn relay | - |
| ER09 | Fuel pump relay | - |
| ER10 | Starter relay | - |
| ER11 | Low beam headlight relay | - |
| ER12 | Front passenger seat heater relay | - |
| ER13 | Front passenger seat heater relay | - |
| High-Current Fusible Links | ||
|
||
| EF40 | Main fuse 2 | 100 A |
| EF41 | Electric Power Steering (EPS) | 80 A |
