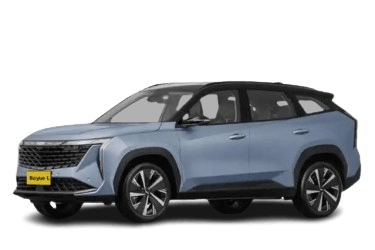

This article provides a comprehensive overview of the fuse and relay diagrams for the Geely Atlas Pro Mk2 / Boyue and the Proton X70 (Third Generation; CMA platform; chassis code FX11) for model years 2021 through 2026.
In the passenger compartment fuse box, fuses IF01 and IF02 protect the electrical circuits for the 12V cigarette lighter socket and USB charging ports.
Passenger Compartment Fuse Box
Located behind the lower dashboard storage compartment on the driver's side.
Access overview.
General view of the passenger compartment fuse panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component Protected | Rating (A) |
| IF01 | Cigarette lighter socket | 15 |
| IF02 | USB accessory power | 10 |
| IF03 | Infotainment head unit | 7.5 |
| IF04 | Power mirrors / Drive mode switch / Wireless phone charger | 7.5 |
| IF05 | Auxiliary / Backup power supply | 15 |
| IF08 | Airbag system (SRS) | 5 |
| IF09 | Body Control Module (BCM) | 7.5 |
| IF10 | Electric Power Steering (EPS) / Electronic Stability Control (ESC) | 10 |
| IF11 | Gateway module | 7.5 |
| IF12 | Engine Management System (EMS) / Transmission Control Unit (TCU) / Electronic Control Suspension (ECS) | 10 |
| IF13 | Belt Starter Generator (BSG) / DC-DC converter | 10 |
| IF14 | Electronic Steering Column Lock (ESCL) | 10 |
| IF15 | Battery Management System (BMS) module | 10 |
| IF17 | Power seat adjustment | 10 |
| IF18 | Air conditioning (A/C) climate control | 7.5 |
| IF19 | Transmission Control Module (TCM) | 10 |
| IF21 | Lane Departure Warning (LDW) system | 10 |
| IF22 | Heated/Cooled cup holder | 10 |
| IF23 | Ignition 2 (IG2) circuit | 10 |
| IF25 | Climate control / Instrument cluster / Rain & light sensor (RLS) / Telematics Box (T-Box) | 10 |
| IF26 | Infotainment head unit | 15 |
| IF27 | Electronic Steering Column Lock (ESCL) | 15 |
| IF28 | Power folding side mirrors | 7.5 |
| IF29 | Gateway module / Passive Entry Passive Start (PEPS) / InBlue system | 10 |
| IF30 | Door courtesy lights | 10 |
| IF31 | BCM central door locking module | 20 |
| IF32 | OBD-II diagnostic port | 10 |
| IF33 | All-Wheel Drive (AWD) system | 15 |
| IF34 | Interior lighting control module (BCM-INT-LAMP) | 15 |
| IF35 | 360° panoramic camera system / Display screen | 10 |
| IF36 | Tire Pressure Monitoring System (TPMS) / Transmission Control Module (TCM) | 10 |
| IF37 | Electronic Gear Shift Module (EGSM) / Hands-Free Access (HFA) | 10 |
| IF38 | Daytime Running Lights (DRL) | 20 |
| IF39 | Exterior lighting control module (BCM-EXT-LAMP) | 20 |
| IF40 | Heated steering wheel | 15 |
| SB01 | Left power windows | 25 |
| SB02 | Right power windows | 25 |
| SB03 | Power Tailgate (PTG) module | 20 |
Engine Compartment Fuse Box
Located beneath the protective plastic trim panel on the left side of the engine bay.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component Protected | Rating (A) |
| ER01 | Starter relay 1 | |
| ER02 | Starter relay 2 | |
| ER04 | Fuel pump relay | |
| ER05 | Main power relay | |
| ER06 | Low beam headlight relay | |
| ER07 | High beam headlight relay | |
| ER08 | Horn relay | |
| ER09 | A/C compressor clutch relay | |
| ER10 | Radiator cooling fan relay | |
| ER12 | Cooling fan relay (Low speed) | |
| ER13 | Cooling fan relay (High speed) | |
| ER14 | Windshield wiper relay | |
| ER15 | Rear window wiper relay | |
| ER16 | Rear window defroster relay | |
| ER17 | Heated windshield relay | |
| MF01 | Electric Power Steering (EPS) | 80 |
| MF02 | Alternator | 150 |
| SF01 | Accessory (ACC) & Ignition 1 (IG1) | 50 |
| SF02 | Anti-lock Braking System (ABS) 1 | 60 |
| SF03 | Anti-lock Braking System (ABS) 2 | 40 |
| SF04 | Dual-Clutch Transmission 1 (DCT1) | 30 |
| SF05 | Positive battery terminal feed (IP_BOX) | 60 |
| SF06 | Dual-Clutch Transmission 2 (DCT2) | 30 |
| SF07 | Power seat adjustments | 30 |
| SF08 | Starter motor | 30 |
| SF09 | Radiator cooling fan | 40 |
| SF10 | Heated glass and power mirrors system | 20 |
| SF11 | Ignition 2 (IG2) | 40 |
| SF13 | Radiator cooling fan | 60 / 80 |
| SF14 | HVAC heating system power supply | 25 |
| EF01 | Dual-Clutch Transmission 3 (DCT3) / Airbag Control Module 1 (ACM1) | 15 / 30 |
| EF02 | Dual-Clutch Transmission 4 (DCT4) / Airbag Control Module 1 (ACM1) | 15 / 30 |
| EF03 | Engine Management System (EMS) module | 10 |
| EF04 | Intelligent Battery Sensor (IBS) | 5 |
| EF05 | Fuel pump feed | 20 |
| EF06 | Transmission Control Unit (TCU) / Electronic Control Suspension (ECS) | 15 / 30 |
| EF07 | Brake light switch | 10 |
| EF08 | Engine sensors (ENG SNR) | 15 |
| EF09 | Engine Management System (EMS) control module | 30 |
| EF10 | Engine solenoid valves (B+) | 10 |
| EF11 | Ignition coils | 15 |
| EF12 | Oxygen (O2) sensor | 15 |
| EF16 | Starter Drive Feed (ST F/D) | 5 |
| EF19 | Heated rear seats | 15 |
| EF20 | Heated windshield | 10 |
| EF21 | Heated exterior side mirrors | 10 |
| EF22 | Right low beam headlight | 10 |
| EF23 | Left tail / position lamps | 10 |
| EF24 | Left high beam headlight | 10 |
| EF25 | Right high beam headlight | 10 |
| EF26 | A/C compressor clutch | 10 |
| EF27 | DC-DC converter / Battery Management System (BMS) | 10 |
| EF28 | Horn | 15 |
| EF29 | Belt Starter Generator (BSG) system | 5 |
| EF30 | Rear window wiper | 15 |
| EF31 | Front windshield wiper | 30 |
| EF32 | Audio amplifier | 30 |
