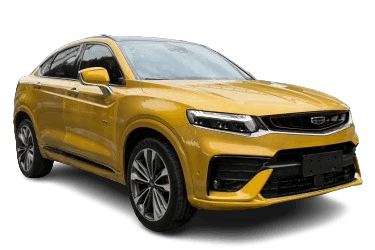

This guide provides a detailed overview of the fuse box diagrams for the Geely Tugella, also known as the Geely Xingyue (first generation; CMA platform; chassis code FY11), covering the 2019–2025 model years.
Fuses IF01 and IF02 in the passenger compartment fuse box protect the electrical circuits for the auxiliary power outlet (cigarette lighter) and USB charging ports.
Engine Compartment Fuse Box
The fuse box is located on the left side of the engine compartment. To access the fuses, remove the upper trim cover panel.
Fuse box access location.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | A/C compressor relay | |
| R2 | Horn relay | |
| BF01 | Battery positive (+) terminal fuse block | 150 |
| BF02 | EPS (Battery Positive Terminal Fuse Box) | 80 |
| MF01 | Electric coolant pump | 60 |
| MF02 | Alternator | 150 |
| EF01 | 8AT Transmission Control Unit (TCU) | 15 |
| EF02 | Gearshift selector module 1 | 20 |
| EF03 | 2.0TD Engine Management System (EMS) | 10 |
| EF04 | Instrument panel box (IG2) | 25 |
| EF05 | Gearshift selector module 2 | 20 |
| EF06 | Fuel pump | 25 |
| EF07 | Horn | 15 |
| EF08 | Solenoid valves and sensors | 10 |
| EF09 | Oxygen (O2) sensor | 10 |
| EF10 | Ignition coils | 15 |
| EF11 | 2.0TD Engine Management System (EMS) | 20 |
| EF17 | EPS ignition supply (IG) | 7.5 |
| EF18 | ESP ignition supply (IG) | 7.5 |
| EF19 | EMS/TCU ignition supply (IG) | 7.5 |
| EF21 | Brake light switch | 10 |
| EF22 | Left low beam headlamp | 15 |
| EF23 | Right low beam headlamp | 15 |
| EF24 | Left high beam headlamp | 15 |
| EF25 | Right high beam headlamp | 15 |
| EF26 | A/C compressor | 10 |
| EF28 | Front windshield wiper | 30 |
| EF29 | Battery monitoring sensor | 5 |
| EF30 | Front heating module 1 | 15 |
| EF31 | Front heating module 2 | 15 |
| EF32 | Audio amplifier | 25 |
| EF33 | Active grille shutter motor & fan relay | 10 |
| SF01 | Cooling fan | 60 |
| SF02 | ESP module 2 | 60 |
| SF03 | ESP module 1 | 40 |
| SF04 | Rear window defogger | 30 |
| SF05 | Starter motor | 30 |
| SF06 | Cooling fan | 40 |
| SF09 | Right door control module | 30 |
| SF11 | Left door control module | 30 |
| SF12 | Instrument panel box (B+) | 80 |
| SF13 | Instrument panel box (ACC & IG1) | 60 |
| SF14 | Driver seatbelt pretensioner module | 25 |
Passenger Compartment Fuse Box
The fuse panel is located on the driver side of the dashboard. To access the fuses, remove the plastic cover panel.
Fuse panel access location.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| IF01 | Front cigarette lighter / 12V outlet | 15 |
| IF02 | USB charging ports | 10 |
| IF03 | Drive mode selector switch | 7.5 |
| IF04 | Wireless smartphone charger* | 7.5 |
| IF05 | Luggage compartment auxiliary power outlet | 15 |
| IF08 | Supplemental Restraint System (SRS airbags) | 5 |
| IF09 | Gearshift control unit | 7.5 |
| IF10 | Head-Up Display (HUD)* | 10 |
| IF11 | Cup holder assembly | 10 |
| IF12 | Engine compartment ignition (IG) supply | 15 |
| IF13 | Central gateway module | 7.5 |
| IF14 | Windshield washer pump | 15 |
| IF15 | Belt-Driven Starter Generator (BSG) system | 10 |
| IF18 | Climate control system (A/C) | 7.5 |
| IF21 | Adaptive Front-Lighting System (AFS) | 15 |
| IF23 | Geely Control Module (GCM) | 10 |
| IF25 | Instrument panel cluster | 10 |
| IF26 | Audio / Infotainment system | 15 |
| IF27 | Electronic gear selector | 10 |
| IF28 | OBD II diagnostic port | 7.5 |
| IF29 | Passive Entry & Passive Start (PEPS) system | 10 |
| IF31 | Heated rear seats | 10 |
| IF32 | Power sunroof | 30 |
| IF33 | All-Wheel Drive (AWD) system | 25 |
| IF34 | Body Control Module 2 (BCM 2) | 15 |
| IF35 | 360° Panoramic View System | 10 |
| IF36 | Brake light switch | 10 |
| IF39 | Power front passenger seat | 30 |
| IF40 | Windshield defroster | 10 |
| SB01 | Power tailgate | 30 |
| SB02 | Power driver seat | 30 |
| SB03 | Body Control Module 1 (BCM 1) | 25 |
