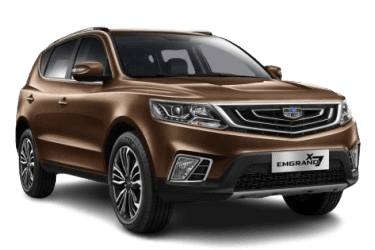

This guide provides detailed fuse and relay box diagrams for the Geely Emgrand X7 (first generation; NL platform; chassis code NL-4 / NL-3 facelift) for model years 2016, 2017, 2018, 2019, 2020, 2021, 2022, and 2023.
Fuse IF27 in the passenger compartment fuse box controls the cigarette lighter / 12V power socket.
Passenger Compartment Fuse Box
The interior fuse box (junction box) is located on the driver’s side of the dashboard. To gain access, open the protective cover.
Location and access example.
| Passenger Compartment Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Circuit Protected |
| IF01 | 10 | Rear fog lamps |
| IF02 | 25 | Left power window |
| IF03 | 10 | Tire Pressure Monitoring System (TPMS) |
| IF04 | 25 | Right power window |
| IF05 | 20 | Front windshield wipers |
| IF06 | 15 | Transmission Control Unit (TCU) (B+ constant power) |
| IF07 | 20 | Power door locks |
| IF08 | 5 | Gateway module (GW) |
| IF09 | 10 | Around View Monitor (AVM) / 360° camera system |
| IF10 | 5 | HVAC blower fan |
| IF11 | 15 | Electronic Steering Column Lock (ESCL) |
| IF12 | 15 | Heated seats |
| IF13 | 20 | Power sunroof |
| IF14 | 10 | Airbag control module (SRS) (IG+) |
| IF15 | 10 | Engine control module (IG+) |
| IF16 | 10 | EPS & SAS modules (IG+) |
| IF17 | 15 | Transmission Control Unit (TCU) (IG+) |
| IF18 | 10 | Instrument cluster (IG+) |
| IF19 | 10 | Body Control Module (BCM) / Around View Monitor (AVM) |
| IF20 | 5 | Wireless phone charger |
| IF21 | 10 | Reverse lamps |
| IF22 | 10 | Windshield washer pump |
| IF23 | 5 | Neutral position sensor (JLD-4G20 engine) |
| 10 | Air conditioning (A/C) system | |
| IF24 | 10 | Rear windshield wiper |
| IF25 | 10 | Blower switch / fan relay |
| IF26 | 10 | Audio system / Radio (ACC) |
| IF27 | 15 | Cigarette lighter / 12V power outlet (ACC) |
| IF28 | 10 | Vehicle Security Module (VSM) (ACC) |
| IF29 | 10 | Power sunroof |
| IF30 | 10 | Power exterior mirrors |
| IF31 | 15 | Tailgate lock actuator backup power supply |
| IF32 | 10 | Heated exterior mirrors |
| IF33 | - | Spare |
| IF34 | 10 | Immobilizer antenna coil / Passive Entry Passive Start (PEPS) |
| IF35 | 10 | Vehicle Security Module (VSM) (B+ constant power) |
| IF36 | 20 | Vehicle Security Module (VSM) (B+ constant power) |
| IF37 | 10 | Instrument cluster & A/C control module |
| IF38 | 15 | Diagnostic Link Connector (OBD-II port) / Audio system |
| IF39 | 10 | Door courtesy lamps & brake light switch |
| SB01 | 25 | Heated rear window (Defroster) |
| SB02 | 30 | Accessory (ACC) relay |
| SB03 | 20 | Ignition 2 (IG2) relay |
| SB04 | 25 | Power seats |
| SB05 | 30 | Ignition 1 (IG1) relay |
Engine Compartment Fuse Box
The fuse box is located on the left side of the engine compartment. To gain access, remove the protective cover.
Location example.
| Engine Compartment Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Circuit Protected |
| EF01 | 15 | Horn |
| EF02 | 15 | Fuel pump |
| EF03 | 10 | Engine Control Module (ECM) (B+ constant power) |
| EF04 | - | Spare |
| EF05 | - | Spare |
| EF06 | 10 | Electronic steering column lock & ignition switch |
| EF07 | 15 | Engine main relay |
| EF08 | 15 | Engine sensors |
| EF09 | 15 | Ignition coils |
| EF10 | 15 | Main relay |
| EF11 | 15 | Right headlight (low beam) |
| EF12 | 15 | Left headlight (low beam) |
| EF13 | 10 | Left headlight (high beam) |
| EF14 | 10 | Right headlight (high beam) |
| EF15 | 10 | A/C compressor clutch |
| EF16 | 15 | Heated windshield |
| EF17 | 15 | Front fog lamps |
| EF18 | 15 | Brake booster vacuum pump |
| EF19 | - | Spare |
| EF20 | - | Spare |
| EF21 | 5 | Anti-lock Braking System (ABS) module (IG+) |
| EF22 | - | Spare |
| EF23 | 5 | Engine Control Module (ECM) (IG+) |
| EF24 | - | Spare |
| EF25 | - | Spare |
| EF26 | - | Spare |
| EF27 | 5 | PEPS starter relay control |
| EF28 | - | Spare |
| SB00 | 150 | Alternator (except JLC-4G18 + 5MT + HPS) |
| 125 | Alternator (JLC-4G18 + 5MT + HPS) | |
| SB01 | 40 | ABS module |
| SB02 | 60 | Passenger compartment fuse box supply |
| SB03 | 30 | ABS pump / module |
| SB04 | - | Spare |
| SB05 | 30 | Radiator cooling fan (low speed) – JLC-4G18 & JLD-4G20 |
| SB06 | 30 | Radiator cooling fan (high speed) – JLC-4G18 & JLD-4G20 |
| SB07 | 30 | HVAC blower motor |
| SB08 | - | Spare |
| SB09 | 60 | Passenger compartment fuse & relay box supply |
| SB10 | 30 | Starter motor relay |
| SB11 | - | Spare |
| SB12 | 30 | Passenger compartment fuse box supply |
