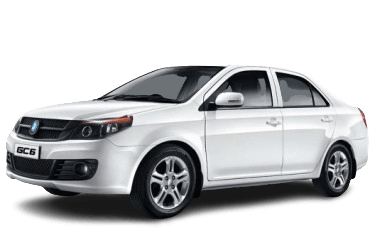

In this article, we examine the fuse diagrams for the Geely GC6 (a heavily revised derivative of the MK model) covering model years 2014 through 2018.
Passenger compartment fuse F13 protects the cigarette lighter circuit.
Engine Compartment
Two separate panels protect the vehicle’s electrical circuits.
Fusible Link Panel
The fusible link panel is mounted directly on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Description |
| 1 | 60 | Main |
| 2 | 30 | ABS |
| 3 | 30 | Power Feed |
| 4 | 30 | Power Feed |
| 5 | 110 | Alternator |
Underhood Fuse Box
The underhood power distribution center is located near the battery. Remove the protective cover to gain access.
Access overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Description |
| ER01 | High-beam relay | |
| ER02 | A/C compressor relay | |
| ER03 | Main relay | |
| ER04 | Left cooling fan relay | |
| ER05 | Fuel pump relay | |
| ER06 | Right cooling fan relay | |
| ER07 | Starter relay | |
| ER08 | Condenser fan relay | |
| EF01 | 15 | Low-beam headlights |
| EF02 | 15 | High-beam headlights |
| EF03 | 20 | Main relay |
| EF04 | 15 | Horn |
| EF05 | 20 | Ignition switch |
| EF06 | 10 | Alternator |
| EF07 | 15 | Fog lights |
| EF08 | 30 | Starter |
| EF09 | 10 | Air conditioning compressor |
| EF10 | 30 | Blower motor |
| EF11 | 30 | Body control module |
| EF12 | 30 | Ignition switch |
| EF13 | 25 | Radiator cooling fan |
Passenger Compartment
The cabin fuse box is located on the driver's side beneath the dashboard.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Description |
| F01 | 20 | Power sunroof |
| F02 | 15 | Audio system |
| F03 | 10 | Parking lights |
| F04 | 10 | Brake lights |
| F05 | 15 | Anti-theft alarm system |
| F06 | 10 | Alternator control (ECU) |
| F07 | 10 | Body control module |
| F08 | 15 | Rear window defogger |
| F09 | 20 | Power door locks |
| F10 | 10 | Interior illumination |
| F11 | 15 | TPMS / BMCS |
| F12 | 10 | Power mirrors |
| F13 | 15 | Cigarette lighter |
| F14 | 15 | Auxiliary power outlet |
| F15 | 10 | SRS control unit (Airbag) |
| F16 | 10 | Body control module |
| F17 | 10 | Backup lights |
| F18 | 10 | ABS control module |
| F19 | 7.5 | Parking sensor system |
| F20 | 10 | Alternator |
| F21 | 15 | Windshield wipers and washers |
| F22 | 10 | Instrument cluster |
| IR01 | — | Position lamp relay |
| IR02 | — | Blower motor relay |
| IR03 | — | Fog light relay |
| IR04 | — | Horn relay |
| IR05 | — | Trunk release relay |
