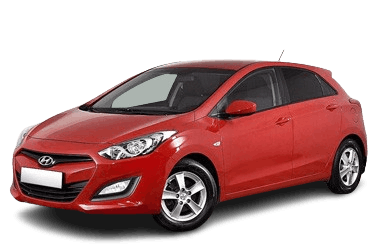

The Hyundai i30 is a compact car produced by the South Korean manufacturer Hyundai Motor Company, sharing its platform with the Kia cee’d. Below are the fuse box diagrams, relay assignments, and location guides for the second-generation Hyundai i30 (GD chassis code; model years 2011–2017).
Below you will find fuse box locations, diagrams, and photo references. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Engine Compartment
Location of underhood power distribution units.
Main Fuse Box
Located adjacent to the battery.
Accessing the fuse box cover.
| Diagram | ||
|---|---|---|
|
||
Symbol Key:
|
||
| No. | Circuit Protected | Rating (A) |
| 1 | Electric Power Steering (EPS) Control Module | 80 |
| 2 | Instrument Panel Junction Box (IPS 0 [4CH], IPS 1 [4CH], IPS 2 [2CH], Fuses F13, F14, F19, F20, F21, F26, F36) | 60 |
| 3 | ESC Control Module, Multi-Purpose Diagnostic Connector | 60 |
| 4 | Relay 4 (Blower Motor Relay) | 40 |
| 5 | Instrument Panel Junction Box (IPS 3 [4CH], IPS 4 [4CH], Fuses F2, F7, F9, F15) | 60 |
| 6 | Relay 12 (Gasoline PTC Heater Relay) | 60 |
| 7 | Relay 1 (Cooling Fan Low Relay), Relay 2 (Cooling Fan High Relay) – Gasoline engine | 40 |
| 7 | Relay 1 (Cooling Fan Low Relay), Relay 2 (Cooling Fan High Relay) – Diesel engine | 50 |
| 8 | ESC Control Module, Multi-Purpose Diagnostic Connector | 20 |
| 9 | Relay 9 (Starter Relay), Ignition Switch (without Push-Button Start), Relay 6 (PDM 4 [IG2] Relay, with Push-Button Start) | 40 |
| 10 | Without Push-Button Start: Ignition Switch With Push-Button Start: Relay 8 (PDM 2 [ACC] Relay), Relay 10 (PDM 3 [IG1] Relay) |
40 |
| 11 | ICM Relay Box (Windshield Deicer Relay) | 15 |
| 12 | Instrument Panel Junction Box (Parasitic Current Auto-Cut Device, Fuses F18, F25, F30, F34, F38) | 50 |
| 13 | Brake Light Switch, Smart Key Control Module, Stop Light Relay | 10 |
| 14 | Electric Parking Brake (EPB) Control Module | 30 |
| 15 | Electric Parking Brake (EPB) Control Module | 30 |
| 16 | D4FD Engine & Automatic Transmission: TCM | 20 |
| 17 | G4NA/G4NC Engines: PCM (A/T), ECM (M/T) | 15 |
| 18 | Driver/Passenger Heated Seat Module | 20 |
| 19 | Fuel Filter Heater Relay (PTC Relay 12) | 50 |
| 20 | PCM / ECM | 10 |
| 21 | Relay 5 (Horn Relay), ICM Relay Box (Burglar Alarm Horn Relay) | 15 |
| 22 | Automatic Transmission: TCM (D4FD engine), Transmission Range Switch | 15 |
| 23 | Relay 9 (Starter Relay – D4FD engine), ECM/PCM | 15 |
| 24 | ESC Control Module, Multi-Purpose Diagnostic Connector | 10 |
| 25 | ECM/PCM, Mass Air Flow Sensor, Stop Light Switch | 10 |
| 26 | Manual Transmission: Reverse Light Switch Automatic Transmission: Rear Combination Lamps (Inner LH/RH), Rear Sunshade Module, AVN Head Unit with Navigation, Electrochromic Mirror, IPS Control Module |
10 |
| 27 | G4FD/D4FD Engines: ECM G4NA/G4NC Engines: PCM (A/T), ECM (M/T) |
20 |
| 28 | G4NA Engine: Ignition Coils #1–#4, Condenser | 20 |
| 29 | G4FD Engine: Upstream/Downstream O2 Sensors, Variable Intake Solenoid Valve, Purge Control Solenoid Valve G4NA/G4NC Engines: Upstream/Downstream O2 Sensors, Variable Intake Solenoid Valve, Purge Control Solenoid Valve D4FD Engine: Camshaft Position Sensor, EGR Bypass Solenoid Valve, Glow Plug Relay |
10 |
| 30 | G4FD Engine: Oil Control Valves #1/#2, Oil Level Sensor, Engine Room Fuse/Relay Box (Relay 1) G4NA/G4NC Engines: Oil Control Valves #1/#2, Intake/Exhaust Camshaft Position Sensors, Engine Room Fuse/Relay Box (Relay 1) D4FD Engine: Engine Room Fuse/Relay Box (Relay 1), PTC Heater Relay #1, Oxygen (Lambda) Sensor, VGT Control Solenoid Valve |
10 |
| 31 | G4FD Engine: ECM G4NA Engine: Fuel Pump Relay G4NC Engine: Fuel Pump Relay, PCM (A/T), ECM (M/T) D4FD Engine: Oil Level Sensor, Fuel Pressure Control Valve |
10 |
| 32 | G4NA Engine: Fuel Injectors #1–#4 | 10 |
| 33 | G4NA/G4NC Engines: PCM (A/T), ECM (M/T) | 15 |
| 34 | EMS Box (Fuel Pump Relay) | 15 |
| 35 | EMS Box (Headlamp Washer Relay) | 30 |
| 36 | EMS Box | 40 |
| 37 | Cooling Fan Low Speed Relay (Micro) | - |
| 38 | Cooling Fan High Speed Relay (Micro) | - |
| 39 | Emergency Stop Signal (ESS) Relay (Micro) | - |
| 40 | Blower Motor Relay (Micro) | - |
| 41 | Horn Relay (Micro) | - |
| 42 | PDM 4 (IG2) Relay (Micro) | - |
| 43 | Front Wiper Relay (Micro) | - |
| 44 | PDM 2 (ACC) Relay (Micro) | - |
| 45 | Starter Relay (Micro) | - |
| 46 | PDM 3 (IG1) Relay (Micro) | - |
| 47 | Rear Defogger Relay (Micro) | - |
| 48 | Gasoline PTC Heater / Fuel Filter Fuse (Mini) | - |
| 48 | Diesel PTC Heater / Fuel Filter Fuse (Mini) | - |
Auxiliary Fuse Box
Auxiliary block installed on diesel engine models.
- 80 A – Glow Plugs
- 50 A – Supplementary PTC Heater
Passenger Compartment
Located behind the instrument panel access cover on the driver’s side.
Overview of the Hyundai i30 passenger compartment fuse panel.
| Diagram | ||
|---|---|---|
|
||
| Fuse ID | Circuit Protected | Rating (A) |
| CIGAR LIGHT | Cigarette lighter (center console), rear auxiliary power outlet | 20 |
| MODULE 1 | Drive mode switch (Sport), electric exterior mirror switch | 7.5 |
| MODULE 4 | Gear shift indicator, Data Link Connector (DLC/OBD-II), electrochromic rearview mirror, A/C ECU, headlamp leveling actuators (LH/RH), fuel filter water sensor (D4FD engine) | 7.5 |
| MODULE 3 | Instrument cluster, Body Control Module (BCM), Tire Pressure Monitoring System (TPMS) ECU, audio head unit, seat belt reminder module | 7.5 |
| POWER OUTLET | Front auxiliary power outlet | 15 |
| HTD MIRR | Heated exterior mirrors (driver/passenger side), A/C ECU, ECM | 10 |
| WIPER FRT | ICM relay box (rain sensor relay), multifunction stalk switch, underhood fuse/relay box (Relay 7), windshield wiper motor | 25 |
| A / CON | A/C ECU, underhood fuse/relay box (Relay 4) | 7.5 |
| P / WDW LH | Power windows (Left/Driver side) | 25 |
| TAIL GATE | Tailgate latch motor, rearview camera pop-up actuator | 10 |
| P / SEAT DRV | Driver power seat controls | 30 |
| MODULE 2 | Lane Keep Assist System (LKAS) module, ICM relay box (A/C relay), Electric Parking Brake (EPB) module, rearview camera module | 7.5 |
| WIPER RR | Rear wiper relay, rear wiper motor, multifunction stalk switch | 15 |
| STOP LAMP | Brake light switch, ICM relay box (stop lamp relay) | 15 |
| P / WDW RH | Power windows (Right/Passenger side) | 25 |
| PDM 2 | Smart key control unit, Engine Start/Stop button | 7.5 |
| MODULE 5 | EMS unit (headlamp washer relay), cluster ionizer, panoramic sunroof, DC-DC converter, diesel PTC heater relay, passenger compartment fuse/relay box, heated seat module (driver/passenger) | 7.5 |
| IG1 | Underhood fuse/relay box (IG1 circuit) | 20 |
| MODULE 6 | Power mirror switch, audio system, AVN head unit with navigation, digital clock, DC-DC converter | 10 |
| MDPS | Motor Driven Power Steering (MDPS / EPS) ECU | 7.5 |
| DR LOCK | Door lock/unlock relays, ICM relay unit (lock relay), door lock actuators (LH/RH), fuel filler door actuator | 20 |
| INTERIOR LAMP | Glove box lamp, vanity mirror lamps, overhead console lamp assembly, cabin dome lamp, trunk lamp, door courtesy switches | 10 |
| MULTI MEDIA | Audio head unit, AVN navigation unit, audio DC-DC converter | 15 |
| A / BAG | SRS Airbag ECU | 15 |
| MEMORY 1 | Burglar alarm ultrasonic sensor | 7.5 |
| A / BAG IND | Instrument cluster airbag indicator | 7.5 |
| PDM 3 | Smart Key ECU, Burglar alarm ultrasonic sensor | 7.5 |
| MEMORY 2 | Power mirror switch, TPMS module, BCM, auto-light sensor switch, instrument cluster, OBD-II diagnostic port, digital clock, A/C ECU | 10 |
| PDM 1 | Smart Key ECU | 25 |
| START | Without Push-Button Start: Underhood fuse/relay box (starter relay), ignition switch, transmission range switch With Push-Button Start: ECM/PCM, transmission range switch |
7.5 |
| SUNROOF | Panoramic sunroof module | 20 |
| BCM | Body Control Module (BCM), Smart Key ECU | 7.5 |
| A / CON SW | A/C control panel / ECU | 7.5 |
| AFLS | Adaptive Front-Lighting System (AFLS) ECU | 10 |
| MODULE 7 | Body Control Module (BCM), Smart Key ECU | 7.5 |
| FOG LAMP RR | Rear fog light | 10 |
| PUDDLE LAMP | Puddle lamps (exterior power mirrors) | 10 |
