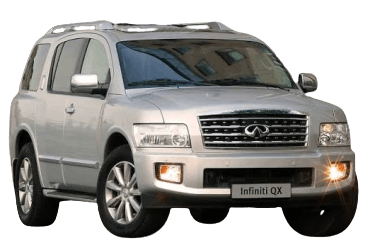

This luxury SUV was manufactured in the United States from 2004 to 2010. Two drivetrain configurations were offered for the North American market: rear-wheel drive (RWD) and all-wheel drive (AWD). The dimensions of this full-size SUV are impressive: its overall length reaches 5.25 meters, its width exceeds two meters (2,019 mm), and its height is just one millimeter shy of two meters (1,999 mm). The vehicle comfortably seats up to eight passengers.
In this article, we take a detailed look at the fuse box diagrams for the 1st-generation Infiniti QX56 (chassis code JA60) covering model years 2004, 2005, 2006, 2007, 2008, 2009, and 2010. Here you will find fuse box locations, photos, and distribution block layouts. The fuse responsible for the “Cigarette lighter” is highlighted in bold.
In the Engine Compartment
Component Locations: 1. Main Fuse Box #1 (IPDM E/R), 2. Engine Control Module (ECM), 3. Fuse Box #2, 4. Relay Box, 5. Windshield Wiper Motor, 6. ABS Actuator and Control Unit
Fuse Box #1
Type 1
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 32 | Trailer relay #1 | 10 |
| 33 | - | - |
| 34 | Right headlight (high beam) | 10 |
| 35 | Left headlight (high beam) | 10 |
| 36 | Illumination, trailer relay #1, display unit | 10 |
| 37 | Parking lights, license plate light, trailer relay, illumination | 10 |
| 38 | Trailer reverse lamp relay | 10 |
| 39 | Windshield wiper relay | 30 |
| 40 | Left headlight (low beam) | 15 |
| 41 | Right headlight (low beam), headlight leveling system | 15 |
| 42 | A/C compressor relay | 10 |
| 43 | Heated mirror relay | 15 |
| 44 | - | - |
| 45 | Daytime running light (DRL) relay | 10 |
| 46 | Rear window defogger relay | 15 |
| 47 | Rear window defogger relay | 15 |
| 48 | Fuel pump relay | 15 |
| 49 | Transmission Control Module (TCM), transfer case control unit, 4WD control unit, transfer case relay | 10 |
| 50 | ABS actuator and control unit, steering angle sensor | 10 |
| 51 | Reverse lamp relay, trailer relay #2 | 10 |
| 52 | Electronic throttle control motor relay | 20 |
| 53 | Engine Control Module (ECM), ECM relay, transfer case control unit, NATS immobilizer antenna amplifier, IPDM CPU | 20 |
| 54 | '04–'06: Air/fuel ratio (A/F) sensors, heated oxygen sensors (HO2S) | 10 |
| '07–'10: Air/fuel ratio (A/F) sensors, heated oxygen sensors (HO2S) | 15 | |
| 55 | Fuel injectors | 15 |
| 56 | Front fog lights | 20 |
| Relays | ||
| R1 | Rear window defogger | |
| R2 | Engine Control Module (ECM) | |
| R3 | Low beam headlights | |
| R4 | Front fog lights | |
| R5 | Starter motor | |
| R6 | Heated mirrors | |
| R7 | - | |
| R8 | Radiator cooling fan | |
| R9 | Ignition switch | |
Type 2
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 32 | Trailer tow relay | 10 |
| 33 | - | - |
| 34 | Right headlight (high beam) | 10 |
| 35 | Left headlight (high beam) | 10 |
| 36 | Illumination, trailer relay #1, display unit | 10 |
| 37 | Parking lights, license plate light, trailer relay, illumination | 10 |
| 38 | Trailer reverse lamp relay | 10 |
| 39 | Windshield wiper relay | 30 |
| 40 | Left headlight (low beam) | 15 |
| 41 | Right headlight (low beam), headlight leveling system | 15 |
| 42 | A/C compressor relay | 10 |
| 43 | Heated mirror relay | 15 |
| 44 | - | - |
| 45 | Daytime running light (DRL) relay | 10 |
| 46 | Rear window defogger relay | 15 |
| 47 | Rear window defogger relay | 15 |
| 48 | Fuel pump relay | 15 |
| 49 | Transmission Control Module (TCM), transfer case control unit, 4WD control unit, transfer case relay | 10 |
| 50 | ABS actuator and control unit | 10 |
| 51 | Reverse lamp relay, trailer relay #2 | 10 |
| 52 | Electronic throttle control motor relay | 20 |
| 53 | Engine Control Module (ECM), ECM relay | 20 |
| 54 | Air/fuel ratio (A/F) sensors, heated oxygen sensors (HO2S) | 15 |
| 55 | Fuel injectors | 15 |
| 56 | Front fog lights | 15 |
| 57 | - | - |
| Relays | ||
| R1 | Rear window defogger | |
| R2 | Radiator cooling fan #1 | |
| R3 | Radiator cooling fan #2 | |
| R4 | Ignition switch | |
Fuse Box #2
(#3 in diagram)
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 24 | Front blower motor relay | 20 |
| 25 | Horn relay, Intelligent Key system, vehicle security system | 15 |
| 26 | '06–'10: Four-wheel drive (4WD) control unit | 10 |
| 27 | Front blower motor relay | 20 |
| 28 | Cargo area auxiliary power outlet | 15 |
| 29 | Air suspension control module | 10 |
| 30 | Generator (Alternator) | 10 |
| 31 | Audio system, AV control unit, display unit, navigation system, DVD player, BOSE amplifier, rear view camera, satellite radio receiver | 20 |
| F | Body Control Module (BCM), circuit breaker, automatic light control, driver memory seat system, power liftgate control module, daytime running lights, front fog lights, front wiper and washer, headlights, headlight leveling, illumination, Intelligent Key system, interior lights, NATS immobilizer, parking lights, license plate light, central locking system, power third-row seats, power windows, rear window defogger, rear wiper and washer, power sunroof, Tire Pressure Monitoring System (TPMS), trailer tow, turn signals, hazard lights, vehicle security system, warning chime | 50 |
| G | Air suspension control module (compressor relay) | 30 |
| H | ABS actuator and control unit | 30 |
| I | ABS actuator and control unit | 40 |
| J | Trailer relay #2 | 30 |
| K | Trailer electric brake control module | 40 |
| L | Cooling fan relay, heated mirror relay, fuse “N” ('08–'10) | 40 |
| M | Ignition switch, Intelligent Key system, NATS immobilizer, fuses 57 and 58 | 40 |
| N | '08–'10: Cooling fan relay, heated mirror relay | 25 |
| Relays | ||
| R1 | Horn relay | |
Relay Box
(#4 in diagram)
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 57 | Transfer case high-range (4H) relay, transfer case low-range (4LO) relay | 20 |
| 58 | Transfer case shift motor relay | 20 |
| 59 | Body Control Module (BCM), Engine Control Module (ECM), 4WD control unit, automatic light control, driver memory seat system, daytime running lights, front fog lights, front wiper and washer, headlights, headlight leveling system, illumination, Intelligent Key system, interior lights, NATS immobilizer, parking lights, license plate light, power windows, rear window defogger, rear wiper and washer, starting system, power sunroof, Tire Pressure Monitoring System (TPMS), trailer tow, turn signals, hazard lights, warning chime | 10 |
| 60 | '08–'10: Trailer tow, Body Control Module (BCM) | 15 |
| 61 | - | - |
| 62 | - | - |
| 63 | '08–'10: Heated steering wheel | 10 |
| 64 | '08–'10: Driver memory seat system, shift lock solenoid, Body Control Module (BCM), Intelligent Key system, interior lights, NATS immobilizer, central locking, warning chime | 10 |
| Relays | ||
| R1 | '06–'10: Transfer case relay | |
| R2 | Transfer case low-range (4LO) relay | |
| R3 | '04–'07: Intelligent Cruise Control (ICC) relay | |
| R4 | '04–'05: Trailer tow relay #1 | |
| '06–'10: Trailer left turn signal relay | ||
| R5 | '04–'05: Reverse lamps relay | |
| '06–'10: Trailer right turn signal relay | ||
| R6 | - | |
| R7 | Transfer case high-range (4H) relay | |
| R8 | Daytime running lights (DRL) relay | |
| R9 | Brake lamp relay | |
| R10 | Trailer tow relay #2 | |
Power Fuse Panel
Located on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| A | Alternator, fuses “D” and “E” | 140 |
| B | Auxiliary relay (fuses 4, 5, 6, 7), rear heater relay (fuses 10, 11), fuses 3, 17, 18, 19, 20, 21, and 22 | 60 |
| C | Ignition relay (fuses 38, 48, 49, 50, 51, 54, 55), fuses 46, 47, 52, and 53 | 80 |
| D | Front fog light relay (fuses 34, 35), high beam relay (fuses 34, 35), low beam relay (fuses 40, 41), parking light relay (fuses 36, 37), fuses 32, 39, 42, 43, and 45 | 80 |
| E | Fuses 28, 29, 30, 31, “I”, “K”, and “L” | 100 |
In the Passenger Compartment
Component Locations:
1. Body Control Module (BCM)
2. Driver memory seat control module: R1 – Trailer relay #1, R2 – Rear vent window closing relay, R3 – Rear vent window opening relay
3. Intelligent Key control unit
4. Display unit, AV control unit
5. Transfer case control unit / Remote keyless entry receiver
6. Passenger compartment fuse box (Open the glove box and pull the cover to remove it)
7. Airbag diagnosis sensor unit (SRS module)
| Passenger Compartment Fuse Box Assignment (Box #6 in diagram) | ||
|---|---|---|
Representative photo shown. |
||
Fuse layout diagram. |
||
| No. | Description | A |
| 1 | Heated seat relay | 10 |
| 2 | Driver seat control module | 10 |
| 3 | Transmission Control Module (TCM), 4WD control unit, shift lock solenoid, ABS control module, exterior lighting, Intelligent Cruise Control (ICC), Intelligent Key system, NATS immobilizer, combination meter (instrument cluster), air suspension control module, Tire Pressure Monitoring System (TPMS), turn signals, hazard lights, security system, warning chime | 10 |
| 4 | Audio system, AV control unit, display unit, navigation system, DVD player, Body Control Module (BCM), combination meter, rear view camera, satellite radio receiver | 10 |
| 5 | Power outside mirrors | 10 |
| 6 | Center console power outlet | 15 |
| 7 | Cigarette lighter fuse (Infiniti QX56) | 15 |
| 8 | Front blower motor relay, heater water valve relay | 10 |
| 9 | Combination switch | 10 |
| 10 | Rear heater / blower motor | 15 |
| 11 | Rear heater / blower motor | 15 |
| 12 | Data Link Connector (DLC / OBD-II), display unit, navigation system, Sonar (parking sensor) control unit, shift lock solenoid, air suspension control module, power liftgate control module, auto-dimming rearview mirror, compass, ambient temperature gauge, heated steering wheel, NATS immobilizer | 10 |
| 13 | Supplemental Restraint System (SRS airbags) | 10 |
| 14 | Combination meter (front wiper and washer, rear wiper and washer) | 10 |
| 15 | Automatic Speed Control Device (ASCD / Cruise control), Intelligent Cruise Control (ICC) | 10 |
| 16 | Heated seat relay | 10 |
| 17 | Audio subwoofer amplifier | 15 |
| 18 | Front left auxiliary power outlet | 15 |
| 19 | Steering angle sensor, combination meter, ignition switch, key lock solenoid, climate control unit, gear selector indicator, Data Link Connector (DLC), heater water valve relay, HomeLink® universal transceiver, clock, central locking system, power third-row seat switch | 10 |
| 20 | Stop lamp switch, brake lamp relay, Intelligent Cruise Control (ICC) | 10 |
| 21 | Intelligent Cruise Control (ICC) control unit | 10 |
| 22 | Body Control Module (BCM), driver seat control module, power liftgate control module, seat memory system, driver memory seat system, Intelligent Key system, interior lights, NATS immobilizer, central locking system, vehicle security system | 15 |
| Relays | ||
|
||
| R1 | Auxiliary relay | |
| R2 | Rear heater relay | |
