Most electrical power circuits in this vehicle are protected by fuses. High-current consumers, such as the headlights, cooling fan motors, and fuel pump, are switched via relays. Protective fuses and relays are housed in power distribution boxes located in the passenger compartment and engine compartment.

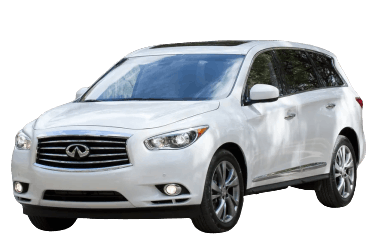

Applicable models: 1st-Generation Infiniti QX60 (chassis code L50) – Model Years 2012, 2013, 2014, 2015, 2016, 2017.
Engine Compartment
Located under the hood: 2 fuse boxes and 2 relay blocks.
| Engine Compartment Fuse Box Diagrams | ||
|---|---|---|
| Box No. 1 | ||
|
||
| No. | Circuit / Protected Component | A |
| 34 | Right headlight (high beam) | 10 |
| 35 | Left headlight (high beam) | 10 |
| 36 | Right headlight (low beam) | 15 |
| 37 | Left headlight (low beam) | 15 |
| 38 | Engine Control Module (ECM), VIAS control solenoid valve, EVAP canister vent control valve, throttle control motor relay | 10 |
| 39 | Engine Control Module (ECM), EVAP canister purge volume control solenoid, intake valve timing control solenoid valve, exhaust valve timing control solenoid valve, Mass Air Flow (MAF) sensor | 10 |
| 40 | Heated oxygen sensors (HO2S), air-fuel ratio (A/F) sensors | 15 |
| 41 | Front wiper relay | 30 |
| 42 | Front fog light relay | 15 |
| 43 | Daytime running light (DRL) relay | 10 |
| 44 | Ignition coils, condenser, Engine Control Module (ECM) | 15 |
| 45 | Fuel injectors, Engine Control Module (ECM) | 10 |
| 46 | Transmission range switch, Transmission Control Module (TCM), primary speed sensor, input speed sensor, output speed sensor | 10 |
| 47 | Fuel pump relay | 15 |
| 48 | Cooling fan relay, headlight leveling actuators, headlight leveling switch, transmission range switch | 10 |
| 49 | All-Wheel Drive (AWD) control module, Power Steering Control Module, ABS solenoid relay, ABS motor relay, steering angle sensor, yaw rate / G-sensor | 10 |
| 50 | Front and rear windshield washers, combination switch | 10 |
| 51 | Taillights, license plate lights, trailer tow relay No. 1, headlight leveling switch, glove box light, interior illumination | 10 |
| 52 | Parking lights, side marker lights | 10 |
| 53 | A/C compressor relay | 10 |
| 54 | Not used | - |
| 55 | Throttle control motor relay | 15 |
| 56 | Engine Control Module (ECM) | 10 |
| Box No. 2 | ||
|
||
| No. | Circuit / Protected Component | A |
| 57 | Alternator, security horn relay | 10 |
| 58 | Bose® audio system | 10 |
| 59 | PTC heater relay No. 1 | 30 |
| 60 | PTC heater relay No. 2 | 30 |
| 61 | Trailer tow relay No. 2 (trailer harness socket) | 30 |
| 62 | All-Wheel Drive (AWD) control module | 10 |
| 63 | Horn relay, Infiniti Intelligent Key system | 15 |
| 64 | Power seatback release / return control module | 30 |
| 65 | Auxiliary relay No. 2 (AV control unit, satellite radio tuner, A/C & AV switch assembly, Bluetooth® control unit, power seat, Around View® Monitor control unit, video distributor, rear AUX input jacks, Telematics Control Unit (TCU), telematics switch, power mirror switch, combination meter indicator) | 10 |
| 66 | Climate-controlled seat, heated seat (front passenger side) | 15 |
| 67 | Trailer tow relay No. 1 (trailer harness socket) | 10 |
| 68 | Climate-controlled seat, heated seat (driver side) | 15 |
| 69 | DC/AC power inverter system | 30 |
| 70 | Rear blower motor relay | 20 |
| 71 | 20 | |
| G | Trailer electric brake controller | 30 |
| H | Cooling fan relay | 60 |
| I | ABS motor relay | 50 |
| J | ABS solenoid valve relay | 30 |
| K | Ignition relay No. 2 (fuses 28, 29, 30, 31, 32), starter relay, starter control relay | 40 |
| L | Pre-crash seat belt system (driver side) | 30 |
| M | Pre-crash seat belt system (front passenger side) | 30 |
| N | Power liftgate system | 40 |
| O | Body Control Module (BCM), automatic light system, power liftgate system, taillights, CVT shift lock system, daytime running lights, front fog lights, front wiper and washer system, headlights, headlight assist, heated steering wheel, illumination, Infiniti Intelligent Key system / push-button start, interior lighting, IVIS (Infiniti Vehicle Immobilizer System), sunroof, parking lights, license plate lights, power door locks, power seats, power windows, rear window defogger, rear wiper and washer system, Tire Pressure Monitoring System (TPMS), trailer towing, turn signals and hazard warning lights, vehicle security system, horn, Automatic Drive Positioner (ADP), power tilt/telescoping steering column | 40 |
| NS | Not used | - |
| R1 | Horn relay | |
| R2 | Cooling fan relay | |
| Battery Main Fuse Block (Fusible Link Block) | ||
|---|---|---|
|
||
| No. | Circuit / Protected System | A |
| A | Alternator, starter motor, fuses B, C, D | 250 |
| B | Fuses 57–64, 72, 73, H, I, J, K, L, M, N, O | 100 |
| C | High beam relay (fuses 34, 35), low beam relay (fuses 36, 37), taillight relay (fuses 51, 52), fuses 41–43, 68–71 | 80 |
| D | Power Steering Control Module | 100 |
| E | ECM relay (fuses 38–40), ignition relay No. 1 (fuses 44–50), fuses 53, 55, 56 | 80 |
| F | Auxiliary relay No. 1 (fuses 19–21), rear window defogger relay (fuses 22–24), front blower motor relay (fuses 17, 27), fuses 1–4, 9–16, 25, 65–67, G | 100 |
| Engine Compartment Relay Block Diagrams | ||
|---|---|---|
| Box No. 1 | ||
|
||
| No. | Circuit / Protected Component | A |
| 72 | Trailer reverse light relay | 10 |
| 73 | Trailer turn signal relays (left / right) | 15 |
| 74 | Heated steering wheel relay | 10 |
| R1 | PTC heater relay No. 2 | |
| R2 | Intelligent Cruise Control (ICC) brake hold relay | |
| R3 | Accessory relay No. 2 | |
| R4 | Not used | |
| R5 | PTC heater relay No. 1 | |
| Box No. 2 | ||
|
||
| No. | Circuit / Protected Component | A |
| 75 | Driver assistance system | 10 |
| R1 | Not used | |
| R2 | Not used | |
| R3 | Not used | |
| R4 | Daytime running light (DRL) relay | |
Passenger Compartment
The passenger compartment fuse box is located on the driver's side, underneath the dashboard.
Overview / Diagram.
| Passenger Compartment Fuse Box Assignment | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | A |
| 1 | Body Control Module (BCM), hazard warning switch, auto-dimming interior rearview mirror, automatic light system, Automatic Drive Positioner (ADP), taillights, daytime running lights, driver assistance system, front fog lights, front wiper & washer system, headlights, headlight leveling system, HomeLink® universal transceiver, illumination, interior lights, IVIS (Infiniti Vehicle Immobilizer System), sunroof, parking lights, license plate lights, power door locks, power seats, power windows, rear window defogger, rear wiper & washer system, Tire Pressure Monitoring System (TPMS), trailer towing, turn signals & hazard warning lights, vehicle security system, horn, seat memory switch | 10 |
| 2 | Body Control Module (BCM) | 15 |
| 3 | Body Control Module (BCM), power door locks, Infiniti Intelligent Key system / push-button start, vehicle security system | 15 |
| 4 | Body Control Module (BCM), power door locks, Infiniti Intelligent Key system / push-button start, vehicle security system | 15 |
| 5 | Not used | - |
| 6 | - | |
| 7 | - | |
| 8 | - | |
| 9 | Cargo area auxiliary power outlet | 20 |
| 10 | Brake light switch, Body Control Module (BCM), Intelligent Cruise Control (ICC) brake hold relay, Engine Control Module (ECM) | 10 |
| 11 | Bose® audio amplifier | 15 |
| 12 | 15 | |
| 13 | Instrument cluster (combination meter) | 10 |
| 14 | Climate control unit, Drive Mode Selector, heated steering wheel, pre-crash seat belt system, rain sensor | 5 |
| 15 | Audio system, AV control unit, multi-function display, satellite radio tuner, Bluetooth® module, video distributor, rear AUX inputs, headrest monitors, Telematics Control Unit (TCU) | 15 |
| 16 | Body Control Module (BCM) | 5 |
| 17 | Front blower motor | 15 |
| 18 | Not used | - |
| 19 | Cigarette lighter (Infiniti QX60) | 20 |
| 20 | Rear console power outlet | 20 |
| 21 | Front console power outlet | 20 |
| 22 | Heated outside mirrors | 10 |
| 23 | Rear window defogger | 15 |
| 24 | 15 | |
| 25 | Intelligent Key warning buzzer, push-button ignition switch, All-Wheel Drive (AWD) control module, Data Link Connector (OBD-II DLC), keyless entry receiver, power seatback release module, Transmission Control Module (TCM) | 10 |
| 26 | Headlight leveling switch | 5 |
| 27 | Front blower motor | 15 |
| 28 | 2nd-row heated seats | 15 |
| 29 | Audio system, AV control unit, Around View® Monitor control unit, Telematics Control Unit (TCU), sonar control unit, auto-dimming rearview mirror, trailer tow relay No. 1, trailer tow relay No. 2, trailer reverse relay, heated seat relay, climate-controlled seat relay | 5 |
| 30 | Bluetooth® module, Advanced Driver Assistance Systems (ADAS) control unit, Intelligent Cruise Control (ICC) sensor, ICC brake hold relay, brake pedal position switch, Engine Control Module (ECM), warning buzzer, side radar units (LH/RH), lane camera unit, Data Link Connector (OBD-II DLC), electronically controlled engine mount solenoid valve, A/C auto-amp (climate control), ionizer, intake air quality/odor sensor, PTC relay No. 1, PTC relay No. 2, 120V AC outlet master switch, power seat | 10 |
| 31 | Instrument cluster (combination meter) | 5 |
| 32 | Airbag diagnostic sensor unit, occupant classification system (OCS) control unit | 10 |
| 33 | Not used | - |
| 74 | Heated steering wheel relay | 10 |
| Relays (Reverse Side of Panel) | ||
|
||
| R1 | Ignition relay No. 2 | |
| R2 | Front blower motor relay | |
| R3 | Rear window defogger relay | |
| R4 | Accessory relay No. 1 | |
