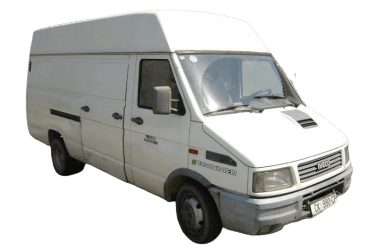

The Iveco Daily is a line of light commercial vehicles and minibuses produced by Italian manufacturer Iveco S.p.A. As one of the company’s longest-running models, the first generation debuted in 1978. This article provides detailed fuse and relay box diagrams for the Iveco Daily (First major evolution; Second generation; MK1 / MK2 series) produced between 1989 and 2000.
Below you will find fuse box locations, photos, and circuit assignments. The fuse for the “cigarette lighter” is highlighted in bold.
Passenger Compartment Fuse Box
General view of the fuse panel.
Location
Located behind the trim panel on the driver’s side of the dashboard.
Fuse & Relay Assignment Diagram
Assignment of fuses and relays.
|
||
| No. | Description | Rating |
| E1 | Low-beam headlights (switch contacts) | - |
| E2 | High-beam headlights | - |
| E3 | Load shedding relay (cuts auxiliary power during engine cranking) | - |
| E4 | Front fog lights (switch contacts) | - |
| E5 | Fuel filter heater | - |
| E6 | Hazard warning module | - |
| E7 | Daytime running lights (DRL) and fog lights | - |
| E8 | Horns (N.O. contact) | - |
| E9 | Intermittent windshield wiper relay | - |
| E10 | Turn signal flasher relay | - |
| E11 | Hazard warning module diode (models with DRL) | - |
| E12 | Unused | - |
| E13 | Brake system failure switch contact | - |
| E14a | Hazard warning control unit (models with DRL) | - |
| E14b | ||
| E15 | Hazard warning light relay / turn signals | - |
| C | Air conditioning compressor relay | - |
| 1 | Left front parking light, left license plate light, right rear parking light | 5 A |
| 2 | Instrument panel illumination, right front parking light, right license plate light, left rear parking light | 5 A |
| 3 | Left low-beam headlight | 7.5 A |
| 4 | Right low-beam headlight | 7.5 A |
| 5 | Left high-beam headlight | 7.5 A |
| 6 | Right high-beam headlight | 7.5 A |
| 7 | Electronic speedometer / tachograph | 3 A |
| 8 | Brake system failure warning / instrument panel warning lights | 5 A |
| 9 | Front fog lights | 10 A |
| 10 | Rear fog lights | 3 A |
| 11 | Interior lighting (Bus models) | 5 A |
| 12 | Unused | 7.5 A |
| 13 | Alarm system | 10 A |
| 14 | Tractor unit turn signals | 5 A |
| 15 | Engine shutoff solenoid | 3 A |
| 16 | Reversing lights, brake lights | 7.5 A |
| 17 | Horns | 10 A |
| 18 |
|
7.5 A |
| 19 | Fuel filter heater | 15 A |
| 20 | Windshield wipers and washer pump | 10 A |
| 21 | Auxiliary electric heater, electromagnetic radiator fan clutch | 15 A |
| 22 | Headlight flasher / push-button light switch | 7.5 A |
| 23 | Power windows, electromagnetic radiator fan clutch | 25 A |
| 24 | Emergency control switch (Bus models) | 10 A |
| 25 | Air conditioning system | 20 A |
| 26 | 20 A | |
| 27 | 25 A | |
| 28 | Electric cabin heater / blower | 25 A |
| 29 | Glow plug / thermostarter control unit | 40 A |
