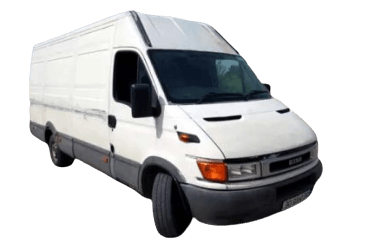

The Iveco Daily is a range of light commercial vehicles and minibuses produced by the Italian manufacturer Iveco S.p.A. As one of the brand’s longest-running model lines, the first generation debuted in 1978. This article provides detailed fuse and relay box diagrams for the second major evolution Iveco Daily (Third generation; MK2), covering model years 1999, 2000, 2001, 2002, 2003, 2004, 2005, and 2006.
Below you will find power distribution center locations, component layouts, and photos. Fuse locations for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold text.
Passenger Compartment Fuse Box
Located behind the trim panel on the driver’s side.
| Diagram | ||
|---|---|---|
 |
||
| No. | Relays | |
| 25035 | Exterior lighting relay | |
| 25003 | Front fog lamp relay | |
| 25006 | Brake light relay | |
| 25704 | Power Take-Off (PTO) control relay | |
| 25104 | Retarder cut-off relay (ABS active) | |
| 25209 | Load shedding / cranking relay | |
| 25222 | Thermo-starter control relay | |
| 25223 | Thermo-starter fan control relay | |
| 25307 | A/C compressor engage relay | |
| 25336 | Engine cooling fan relay | |
| 25337 | A/C compressor disengage relay | |
| 25340 | A/C compressor status signal relay | |
| 25620 | Fuel filter restriction sensor relay | |
| 25705 | Diagnostics enable relay | |
| 25810 | Heated fuel filter control relay | |
| 25811 | Cold-start advance device (KSB) relay | |
| 25818 | Heated windshield relay | |
| 25837 | Electric fuel pump relay | |
| 25858 | Electronic Diesel Control (EDC) main relay | |
| 25926 | Air suspension lift control relay | |
| 25927 | Air suspension lower control relay | |
| 25928 | Heated rear window relay | |
| 61002A | Trinary switch blocking diode | |
| 61002В | TGC blocking diode (bus) | |
| 66010 | Headlamp washer timer relay | |
| No. | Rating | Protected Circuits |
| 1 | 40 A | ID/TCA (.11): Thermo-starter system |
| 80 A | UNIJET (.13-.15): Thermo-starter system | |
| 30 A | UNIJET F1A (.10-.12): Thermo-starter, auxiliary heater | |
| 2 | 5 A | Immobilizer / Auxiliary heater / EDC |
| 3 | 5 A | DDS anti-theft module |
| 4 | 5 A | Instrument cluster (+30 battery supply) |
| 5 | 5 A | Instrument cluster (+15 ignition supply) |
| 6 | 5 A | Steering column switch (rear fog lamp, turn signals) |
| 7 | 10 A | Steering column switch (low beams) |
| 8 | 15 A | Steering column switch (high beams) |
| 9 | 15 A | Steering column switch (parking lights) |
| 10 | 15 A | Windshield wiper system |
| 11 | 15 A | Hazard switch / turn signal flasher module |
| 12 | 15 A | Steering column switch (horns) |
| 13 | 5 A | Backup lamps |
| 14 | 5 A | Parking lights, side marker lamps, license plate lamps |
| 15 | 5 A | Parking lights |
| 16 | 10 A | Left low beam headlamp |
| 17 | 10 A | Right low beam headlamp |
| 18 | 10 A | Left high beam headlamp |
| 19 | 10 A | Right high beam headlamp / headlamp leveling system |
| 20 | 10 A | Interior lighting / Audio system / Iveco Daily Cigarette Lighter Fuse No. 1 |
| UNIJET F1A (.10-.12): Interior lighting / audio system | ||
| 21 | 30 A | Heated windshield |
| 15 A | UNIJET F1A (.10-.12): Iveco Daily Cigarette Lighter Fuse No. 2 | |
| 22 | 15 A | Heated fuel filter assembly |
| 23 | 25 A | Electronic Diesel Control (EDC) main ECU supply |
| 24 | 10 A | Electronic Diesel Control (EDC) module |
| 25 | 5 A | Brake lamps |
| 26 | 15 A | 13-pin trailer socket connector |
| 27 | 15 A | 13-pin trailer socket connector |
| 28 | 10 A | 13-pin trailer socket connector |
| 29 | 5 A | 38-pin diagnostic port (OBD) |
| 30 | 10 A | Front fog lamps |
| 31 | 5 A | Climate control, auxiliary heater, engine cooling fan |
| 10 A | UNIJET F1A (.10-.12): A/C compressor, timer, engine cooling fan | |
| 32 | 5 A | Climate control module |
| 33 | 20 A | Auxiliary heater system |
| 34 | 20 A | Headlamp washer system |
| 35 | 5 A | Rear differential lock actuator |
| 36 | 5 A | ABS, EBD, ABD warning lights |
| 37 | 5 A | Anti-lock Braking System (ABS) module |
| 39 | 10 A | Heated exterior mirrors |
| 10 A | UNIJET F1A (.10-.12): Heated exterior mirrors, heated rear window, heated windshield | |
| 40 | 30 A | Power windows |
| 20 A | UNIJET F1A (.10-.12): Driver power window switch | |
| 41 | 10 A 20 A |
Heated rear window, heated windshield switch |
| 42 | 5 A | ECAS self-leveling air suspension module (Wabco) |
| 43 | 5 A | Airbag warning light |
| 44 | 40 A | ECAS self-leveling air suspension compressor (Wabco) |
| 45 | 5 A | Supplemental Restraint System (SRS / Airbag) |
| 46 | 5 A | Thermo-starter solenoid valve |
| 20 A | UNIJET F1A (.10-.12): Passenger power window switch | |
| 47 | 10 A | Iveco Daily Fuel Pump Fuse |
| 48 | 30 A | Central locking / Alarm system |
| 49 | 5 A | Central locking / Alarm system control module |
| 50 | 30 A | Rear differential lock actuator |
| 51 | 10 A | Power Take-Off (PTO) solenoid switch |
| 52 | 30 A | Front differential lock actuator (4x4 models) |
| 53 | 30 A | Self-leveling air suspension pump (VB-Airsuspension / Techniek) |
| 54 | 15 A | Electric sunroof (van / crew cab 6+1 models) |
| 55 | 15 A | Power side door operator |
