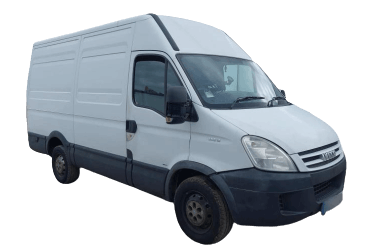

Daily is a lineup of light-duty commercial vehicles and minibuses produced by the Italian manufacturer Iveco S.p.A. As one of the brand's longest-running model lines, the first generation debuted in 1978. This guide details the fuse and relay box diagrams, component locations, and circuit assignments for third major evolution / fourth generation (MK2 facelift) Iveco Daily models produced between 2006 and 2011.
Below are the location diagrams and photo guides for the power distribution centers. Fuses designated for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold text.
| General Electronic Module Layout | |
|---|---|
|
|
| A | Instrument Cluster |
| B | Ignition Switch |
| C | Steering Column Switch Stalk Assembly |
| D | Central Junction Box (“CPL”) |
| E | Body Control Module (BCM) |
| F | Battery |
| G | Positive (+30) Power Distribution Center (“CBA”) |
| H | Alternator |
| I | Engine Compartment Junction Box (“CVM”) |
Engine Compartment Fuse Boxes
Component locations: 1: “CBA” – Main Power Distribution Center; 2: “CVM” – Engine Junction Box.
Fuse Box #1 (“CBA”)
Overview.
| Fuse Assignment Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating |
| 1 | +30 Constant Power to Starter/Alternator | 500 A |
| 2 | Power Feed to CVM Unit | 150 A |
| 3 | +30 Constant Power to “CPL” Junction Box | 70 A |
| 4 | 70 A | |
| 5 | +30 Constant Power to Auxiliary Output Box (OPT) | 50 A |
| 6 | +30 Constant Power to “CPL” – Auxiliary Equipment Pre-Equipment Provision | — |
Fuse Box #2 (“CVM”)
Overview.
| Fuse & Relay Layout Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating |
| T02 | High Beam Headlamps (Left & Right) Relay | 20 A |
| T03 | Horn Relay | 20 A |
| T05 | Baruffaldi Electromagnetic Fan Clutch Relay | 20 A |
| T06 | Heated Mirrors and Windshield Defrost Relay | 20 A |
| T07 | Side Marker Lights Relay | 20 A |
| T08 | Blower Motor / HVAC System Fan Relay | 20 A |
| T09 | EDC16 Engine Control Module (Main Relay) | 20 A |
| T10 | Fuel Pump Relay | 20 A |
| T14 | Front Fog Lights (Left & Right) Relay | 20 A |
| T17 | Windshield Washer Pump Relay | 20 A |
| T19 | Fuel Filter Preheater Relay | 20 A |
| T20 | MODUS Diagnostic Port Power Relay | 20 A |
| T25 | Windshield Wiper On/Off Control Relay | 10/20 A |
| T26 | Windshield Wiper Speed 1/2 Control Relay | 10/20 A |
| 0 | Glow Plug Control Module | 60 A |
| 1 | ABS / ESP Module | 40 A |
| 2 | 30 A | |
| 3 | AGile Transmission ECU (ESV1 Automatic/Automated Gearbox) | 30 A |
| 4 | 30 A | |
| 5 | Ignition Switch Circuit | 30 A |
| 6 | Heated Mirrors and Windshield Defrost | 20 A |
| 7 | Side Marker Lights | 20 A |
| 8 | Blower Motor / HVAC Fans | 30 A |
| 9 | Windshield Washer Pump | 20 A |
| 10 | Horn | 7.5 A |
| 11 | EDC16 Engine Management (Secondary Loads) | 10 A |
| 14 | Right High Beam Headlamp | 7.5 A |
| 15 | Left High Beam Headlamp | 7.5 A |
| 16 | EDC16 ECU, Relays T02 & T14, Auxiliary Heater Control | 5 A |
| 17 | EDC16 Engine Management (Primary Loads) | 15 A |
| 18 | AGile Transmission ECU (ESV1 Control Module) | 10 A |
| 19 | Baruffaldi Electromagnetic Fan Clutch | 5 A |
| 20 | Fuel Filter Preheater Circuit | 25 A |
| 21 | Fuel Pump Fuse | 15 A |
| 22 | EDC16 Engine Management (Primary Loads) | 25 A |
| 23 | Auxiliary Heater Control Unit | 10 A |
| 24 | Transmission ECU (ESV1), Power Take-Off (PTO) Module | 15 A |
| 26 | Trailer Tow Harness Socket | 10 A |
| 29 | Air Suspension Compressor / System Module | 40 A |
| 30 | Front Fog Lights (Left & Right) | 15 A |
| 54 | Air Suspension Compressor / System Module | 40 A |
Auxiliary (OPT) Fuse Box
Equipped on select trim options and special vehicle builds.
| Fuse & Relay Layout Diagram | ||
|---|---|---|
|
||
| No. | Rating | Circuit Description |
| Relays | ||
| T04 | 20 A | Turn Signal Lights Relay |
| T16 | 10 A | Auxiliary Work Lights Relay |
| T15 | — | Unassigned / Reserved |
| T22 | 20 A | Air Conditioning Compressor Clutch Relay |
| T18 | 20 A | Baruffaldi Fan Clutch Cut-Off Relay |
| T24 | 20 A | Power Take-Off (PTO) Engagement Relay |
| T23 | 20 A | Air Conditioning (A/C) Compressor Control Relay |
| T21 | 20 A | EDC16 A/C Compressor Request Signal Relay |
| Fuses | ||
| F55 | 10 A | Turn Signal Indicators |
| F25 | 10 A | Trailer Harness Connector |
| F28 | 15 A | Auxiliary Power Unit (APU) Supply |
| F27 | 10 A | Auxiliary Work Lights |
Passenger Compartment Fuse Box
Located behind the access panel on the left side of the dashboard.
Overview of the cabin fuse panel.
| Fuse & Relay Layout Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating |
| 12 | Right Low Beam Headlamp | 7.5 A |
| 13 | Left Low Beam Headlamp / Headlamp Leveling Actuator | 7.5 A |
| 31 | Relays T08 & T17 Feed (CVM and Body Computer) | 3 A |
| 32 | Sliding Side Door Power Module | 15 A |
| 33 | Auxiliary Fuel-Fired Heater / Cigarette Lighter Fuse | 15 A |
| 34 | 12V Auxiliary Power Outlet | 20 A |
| 35 | ABS / ESP System Electronics | 10 A |
| 36 | Central Locking System | 20 A |
| 37 | Brake Light Switches and Auxiliary Controls | 7.5 A |
| 38 | Body Computer Module / Interior Dome Light Relays Supply | 10 A |
| 39 | Audio Unit / Digital Tachograph Assembly | 15 A |
| 40 | Right Rear Heated Window Elements | 10 A |
| 41 | Left Rear Heated Window Elements | 10 A |
| 42 | Reverse Light Switch | 5 A |
| 43 | Windshield Wiper Motor Assembly | 20 A |
| 44 | Unassigned / Reserved | — |
| 45 | Unassigned / Reserved | — |
| 46 | Unassigned / Reserved | — |
| 47 | Driver Power Window Regulator Motor | 25 A |
| 48 | Passenger Power Window Regulator Motor | 25 A |
| 49 | Climate Control ECU, Audio Unit, Heated Seats | 15 A |
| 50 | Supplemental Restraint System (Airbag SRS Module) | 5 A |
| 51 | Digital Tachograph Module | 5 A |
| 52 | Unassigned / Reserved | — |
| 53 | Instrument Cluster, Rear Fog Lamps | 7.5 A |
| Relays | ||
| T-01 | Low Beam Headlamps Relay (Left & Right) | |
| T-11 | Heated Rear Window Relay | |
| T-12 | Cigarette Lighter / 12V Auxiliary Outlet / Climate Control Power Relay | |
| T-13 | Ignition Switched Power Relay (+15 Circuit) | |
