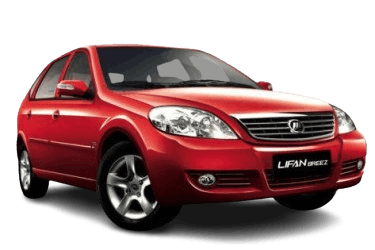

This article provides detailed fuse box diagrams for the first-generation Lifan Breeze (520), covering model years 2007, 2008, 2009, 2010, 2011, and 2012.
Fuse No. 20 in the passenger compartment protects the cigarette lighter sockets.
Engine Compartment
The fuse box is located adjacent to the battery.
Fuse box access location.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | Main relay | |
| R2 | Cooling fan relay (High speed 2) | |
| R3 | Cooling fan relay (High speed 1) | |
| R4 | Cooling fan relay (Low speed) | |
| R5 | A/C compressor relay | |
| R6 | Horn relay | |
| 1 | Horn relay | 15 |
| 2 | Main relay | 25 |
| 3 | A/C compressor relay | 10 |
| 4 | 1.3L & 1.6L: Cooling fan (High speed 1) | 15 |
| 5 | 1.3L & 1.6L: Cooling fan (High speed 2) | 20 |
| 6 | 1.3L & 1.6L: Cooling fan (Low speed) | 20 |
| - | Cooling fan relay | 30 |
| - | ABS module | 30 |
| 7 | 1.6L Tritec: Cooling fan | 30 |
| 8 | 1.6L Tritec: Cooling fan (Low speed) | 30 |
| 9 | 1.6L Tritec: Cooling fan (High speed) | 30 |
| 10 | 1.6L Tritec: Unused | - |
| 11 | 1.6L Tritec: Unused | - |
| 12 | 1.6L Tritec: Terminal 15 | 50 |
| 13 | 1.6L Tritec: Terminal 30 | 50 |
Passenger Compartment
The fuse box is located behind the dashboard on the driver side.
Fuse box access location.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | High-beam headlights | |
| R2 | Headlights | |
| R3 | Low-beam headlights | |
| R4 | Turn signal / Hazard flasher relay | |
| R5 | Unused | |
| R6 | Windshield wiper relay | |
| R7 | Fuel pump relay | |
| R8 | Heated rear window | |
| R9 | Front fog lamps | |
| 1 | Spare | 25 |
| 2 | Terminal 15 1) | 25 |
| Instrument cluster 2) | 25 | |
| 3 | Instrument cluster | 10 |
| 4 | ABS 1) | 5 |
| Spare 2) | 5 | |
| 5 | Brake lamps, reverse lamps 1) | 10 |
| Reverse lamps 2) | 10 | |
| 6 | Airbags 1) | 10 |
| Brake lamps 2) | 10 | |
| 7 | Spare | 30 |
| 8 | Alarm system 1) | 15 |
| Turn signal relay 2) | 15 | |
| 9 | Spare | 20 |
| 10 | Low beam 1) | 15 |
| Low beam 2) | 20 | |
| 11 | Audio system 1) | 10 |
| Audio system 2) | 15 | |
| 12 | Position / Side marker lamps | 10 |
| 13 | Turn signals 1) | 10 |
| Alarm system 2) | 10 | |
| 14 | Engine control unit (ECU) 1) | 5 |
| Engine control unit (ECU) 2) | 10 | |
| 15 | Instrument cluster illumination 1) | 5 |
| Door-ajar indicator 2) | 5 | |
| 16 | Spare | 5 |
| 17 | Windshield wipers | 15 |
| 18 | Audio system (Terminal 15) | 10 |
| 19 | Power windows | 30 |
| 20 | Cigarette lighter | 15 |
| 21 | Fuel pump | 10 |
| 22 | Central locking 1) | 15 |
| Spare 2) | 15 | |
| 23 | High-beam headlights | 15 |
| 24 | Heated rear window | 15 |
| 25 | Interior lighting | 10 |
| 26 | Spare | 15 |
| 27 | Front fog lamps 1) | 20 |
| Rear fog lamp 2) | 15 | |
| 28 | Lighting switch 1) | 15 |
| Front fog lamps 2) | 20 | |
| 29 | Ignition switch 1) | 30 |
| Air conditioning (A/C) 2) | 30 | |
|
||
