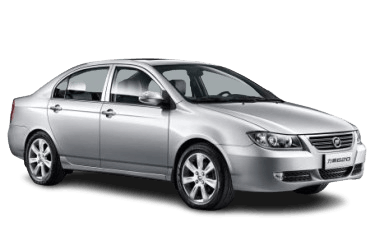

In this article, we will take a detailed look at the fuse diagrams for the car Lifan Solano 620/630: 2010, 2011, 2012, 2013, 2014, 2015, 2016 of release.
Fuse number 5 in the passenger compartment is responsible for the cigarette lighter sockets.
In the passenger compartment
To access the relay block, do the following.
1. Open the storage box for small items and press the tabs on both sides.
2. Remove the glove box.
3. Shaking the relay from side to side...
4. ... remove it from the connector.
To access the fuse box located in the passenger compartment, do the following.
Under the instrument panel on the left, press the latch and remove the cover of the distribution box.
| Diagram | ||
|---|---|---|
| Relay modules | ||
|
||
| 1 | Horn | |
| 2 | Rear fog lights | |
| 3 | Fuel pump relay Solano 620 | |
| 4 | Rear window heating | |
| 5 | spare relay | |
| 6 | spare relay | |
| 7 | Cigarette lighter socket relay | |
| Fuses | ||
|
||
| No. | Amps | Description |
| 1 | 10 | Electronic control unit for electrical equipment of the passenger compartment |
| 2 | 15 | Front direction indicator lamp / malfunction indicator of the electronic control unit for electrical equipment of the passenger compartment |
| 3 | 10 | fuel pump fuse |
| 4 | 15 | Wiper |
| 5 | 15 | cigarette lighter fuse |
| 6 | 10 | Not involved |
| 7 | 10 | ABS hydronic block |
| 8 | 5 | Electronic control unit for electrical equipment |
| 9 | 5 | Rear fog lights |
| 10 | 15 | Audio system |
| 11 | 15 | Horn |
| 12 | 5 | Steering wheel audio controls |
| 13 | 10 | Reversing lamps |
| 14 | 5 | Egnition lock |
| 15 | 5 | Door Aperture Lights/Luggage Compartment Lamp |
| 16 | 10 | Daytime Running Lights |
| 17 | 15 | Reserve |
| 18 | 10 | Outside rear view mirror |
| 19 | 10 | ABS control unit relay |
| 20 | 5 | Stop signal |
| 21 | 10 | Electronic control unit for the passive safety system SRS |
| 22 | 10 | Lamp for general interior lighting |
| 23 | 30 | Power windows |
| 24 | 5 | Spare |
| 25 | 10 | Spare |
| 26 | 15 | instrument cluster |
| 27 | - | Not involved |
| 28 | -- | |
| 29 | 10 | Electric sunroof |
| 30 | 20 | Not involved |
| 31 | - | Reserve |
| 32 | - | - |
| 33 | - | - |
| 34 | 30 | Ignition Am2 |
| 35 | 30 | Am1 ignition |
| 36 | 30 | Rear window heating |
| 37 | Storage space for tweezers | |
| 38 | 30 | Not involved |
| 39 | 15 | Instrument Cluster Relay |
| 40 | 20 | Not involved |
| 41 | 15 | Alternator / ignition coil / crankshaft position sensor / vehicle speed sensor |
In the engine compartment
The fuse block is located near the battery.
To access:
1. Press the lock of the cover of the distribution box...
2. ... and remove the cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Amps | Description |
| Fuses | ||
| 3 | 10 | Reserve |
| 4 | 15 | |
| 5 | 20 | |
| 6 | 25 | |
| 13 | 40 | blower fan |
| 14 | 60 | Socket for connecting additional electrical equipment |
| 15 | 60 | cigarette lighter fuse |
| 16 | Not used | |
| 17 | 30 | Same |
| 18 | 7.5 | Spare |
| 19 | Storage space for special tweezers | |
| 20 | Spare | |
| 21 | Spare | |
| 22 | Spare | |
| 23 | Spare | |
| 24 | Spare | |
| 25 | 30 | ABS hydraulic module |
| 26 | 30 | ABS hydraulic module |
| 27 | 25 | Main relay |
| 28 | 10 | Air conditioning compressor |
| 29 | 10 | Engine ECU |
| 30 | 25 | High speed fans of the engine cooling system and air conditioning system |
| 31 | 25 | Low speed same fans |
| 32 | 5 | Fan speed controller / high speed / low speed / air conditioning compressor |
| 33 | 15 | low beam lamps |
| 34 | 15 | high beam lamps |
| 35 | 15 | Front fog lights |
| Relays | ||
| R1 | 30 | Front fog lights |
| R2 | 70 | Engine cooling fan |
| R7 | 30 | High speed cooling fans |
| R8 | 30 | Low speed same fans |
| R9 | 30 | Fan Speed Control/High Speed/Low Speed |
| R10 | 30 | Overspeed indicator |
| R11 | 30 | high beam headlights |
| R12 | 30 | low beam headlights |
| R36 | 100 | Main relay |
| R37 | 30 | Air conditioning compressor |
| R38 | 30 | Main relay |
