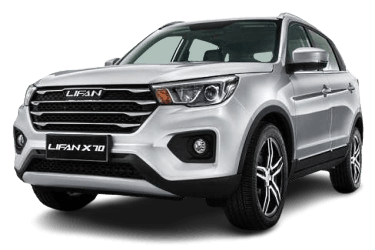

This article provides detailed fuse and relay box diagrams for the Lifan X70 (chassis code LF7201) covering model years 2017, 2018, 2019, 2020, 2021, and 2022.
Fuse FS30 in the passenger compartment fuse box powers the cigarette lighter sockets.
Engine Compartment
The power distribution box is located on the left side of the engine compartment. Remove the protective cover to gain access.
General layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Relay Assignment | |
| K01 | Starter relay | |
| K05 | Horn relay | |
| K06 | Reverse lights relay (CVT models) | |
| K07 | Front fog lights relay | |
| K09 | Low-beam headlights relay | |
| K10 | High-beam headlights relay | |
| K11 | Main relay | |
| K12 | A/C compressor clutch relay | |
| K13 | Fuel pump relay | |
| K14 | Cooling fan speed control relay | |
| K15 | Cooling fan relay #2 | |
| K16 | Cooling fan relay #1 | |
| K17 | Start relay (CVT models) | |
| K18 | Windshield washer pump relay #1 | |
| K19 | Windshield washer pump relay #2 | |
| No. | Rating (A) | Circuit Protected |
| FS01 | 15 | Starter |
| FS04 | 15 | Horn |
| FS05 | 10 (CVT models) | Reverse lights |
| FS06 | 15 | Front fog lights |
| FS08 | 15 | Low-beam headlights |
| FS09 | 15 | High-beam headlights |
| FS12 | 15 | Downstream (rear) oxygen sensor |
| FS13 | 15 | Upstream (front) oxygen sensor |
| FS14 | 15 | Fuel injectors and ignition coils |
| FS15 | 25 | Main relay |
| FS16 | 10 | A/C compressor clutch |
| FS17 | 15 | Fuel pump |
| FS18 | 10 | Alternator (B+) |
| FS19 | 5 (CVT models) | Start signal |
| FS21 | 25 | ABS / ESP system |
| SB05 | 30 | Cooling fan (High speed) |
| SB06 | 30 | Cooling fan (Low speed) |
| SB07 | 20 (CVT models) | Starter |
| SB08 | 40 | ABS / ESP system |
Passenger Compartment
The fuse panel is located on the driver’s side behind the lower dashboard trim. Remove the glove box to access it.
| Diagram | ||
|---|---|---|
|
||
| No. | Relay Assignment | |
| K02 | Accessory (ACC) power supply relay | |
| K03 | Ignition 1 (IG1) power supply relay | |
| K04 | Ignition 2 (IG2) power supply relay | |
| K08 | Rear fog lights relay | |
| K18 | Blower motor relay | |
| K19 | Heated rear window relay | |
| No. | Rating (A) | Circuit Protected |
| FS02 | 15 | Central locking system |
| FS03 | 10 | Electric Steering Column Lock (ESCL) |
| FS07 | 10 | Rear fog lights |
| FS10 | 10 | Climate control module / Sunroof / Brake light switch |
| FS11 | 15 | Diagnostic connector (OBD-II) |
| FS20 | 5 | Transmission Control Module (TCM/CVT) |
| FS22 | 10 | Engine Control Module (ECM) and ABS / ESP |
| FS23 | 5 | Passive Keyless Entry & Start (PEPS) / Body Control Module (BCM) |
| FS24 | 10 | Instrument cluster |
| FS25 | 20 | Windshield wipers |
| FS26 | 20 | Power seats |
| FS27 | 15 | Heated seats |
| FS28 | 15 | Airbag control module (SRS) |
| FS29 | 15 | Sunroof / Moonroof |
| FS30 | 15 | Cigarette lighter (Lifan X70) |
| FS31 | 25 | Audio system / Infotainment head unit |
| FS32 | 30 | Heated rear window (defogger) |
| FS33 | 20 | Emergency call system (eCall / ERA-GLONASS) |
| SB02 | 30 | AM1 power supply circuit |
| SB03 | 30 | AM2 power supply circuit |
| SB04 | 30 | Power windows |
| SB09 | 30 | Blower motor |
