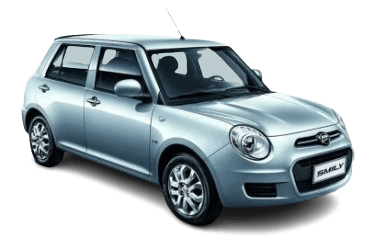

This article provides comprehensive fuse and relay box diagrams for the first-generation Lifan Smily (320/330) produced from 2008 through 2017.
Fuse No. 19 in the passenger compartment controls the cigarette lighter and auxiliary power outlets.
Engine Compartment
Two power distribution blocks are located in the engine compartment to protect the vehicle's electrical circuitry.
Main Fuse & Relay Box
Located adjacent to the battery. Remove the protective cover to access the fuses and relays.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | Radiator cooling fan relay | |
| R2 | Air conditioning (A/C) compressor relay | |
| R3 | Fuel pump relay | |
| R4 | A/C condenser fan relay | |
| R5 | Main power relay | |
| R6 | Horn relay | |
| 1 | Main power relay | 20 |
| 2 | Radiator cooling fan | 25 |
| 3 | A/C condenser fan | 25 |
| 4 | Air conditioning (A/C) compressor clutch | 10 |
| 5 | Fuel pump | 15 |
| 6 | Horn | 20 |
High-Current Fuse Block
Mounted on the positive (+) battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Alternator | 120 |
| 2 | Engine compartment fuse box | 50 |
| 3 | Passenger compartment fuse box | 100 |
Passenger Compartment
Located under the dashboard on the driver's side (beneath the steering column). To access the fuse panel, remove the two retaining screws and take off the cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | Parking lights relay | |
| R2 | Low beam headlight relay | |
| R3 | High beam headlight relay | |
| R4 | Heated rear window relay | |
| R5 | Front fog lights relay | |
| R6 | Turn signal and hazard flasher relay | |
| 1 | Ignition switch | 10 |
| 2 | Power windows | 30 |
| 3 | Anti-lock Braking System (ABS) | 30 |
| 4 | Anti-lock Braking System (ABS) | 30 |
| 5 | Anti-lock Braking System (ABS) | 10 |
| 6 | Instrument cluster | 10 |
| 7 | SRS Airbag system | 15 |
| 8 | Reverse lights, hazard lights | 15 |
| 9 | Body Control Module (BCM) | 15 |
| 10 | Alternator field winding | 10 |
| 11 | Rear window wiper | 15 |
| 12 | HVAC blower motor | 25 |
| 13 | Parking / Position lamps | 10 |
| 14 | Interior lights, trunk light, brake lights | 10 |
| 15 | Low beam headlights | 15 |
| 16 | High beam headlights | 15 |
| 17 | Engine Control Module (ECM / ECU) | 15 |
| 18 | Heated rear window / tailgate glass | 20 |
| 19 | Cigarette lighter / auxiliary power outlet | 15 |
| 20 | Audio system, power side mirrors | 10 |
| 21 | Audio system | 15 |
| 22 | Windshield wipers | 15 |
| 23 | Front fog lights | 15 |
