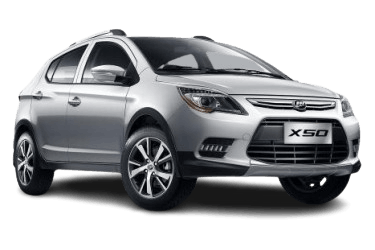

In this article, we take a detailed look at the fuse box diagrams for the first-generation Lifan X50 (LF7151 platform; model years 2015, 2016, 2017, 2018, 2019, 2020, 2021, and 2022).
Passenger compartment fuse FS21 controls the cigarette lighter/power sockets.
Passenger Compartment Fuse Box
The panel is located on the driver's side. For access, remove the glove box.
An example configuration is shown above.
| Fuse & Relay Diagram | ||
|---|---|---|
|
||
| No. | Relay Assignment | |
| K01 | Starter motor | |
| K08 | Blower motor | |
| K09 | Rear window defroster | |
| K12 | Tail lights | |
| K13 | Rear fog lights | |
| K16 | Automatic transmission: Reverse lights | |
| K18 | Automatic transmission: Power relay | |
| No. | Amps | Circuit Protected |
| FS01 | 15 | Automatic transmission: Immobilizer, central locking |
| Manual transmission: Central locking | ||
| FS02 | 10 | Automatic transmission: Alternator, immobilizer, central locking |
| Manual transmission: IG1 ignition feed, Electronic Fuel Injection (EFI) | ||
| FS03 | 15 | Engine Control Module (ECM) |
| FS07 | 10 | Air conditioning (A/C) system |
| FS08 | 25 | Rear window defroster |
| FS09 | 30 | Power windows |
| FS12 | 5 | Tail lights |
| FS13 | 10 | Rear fog lights |
| FS15 | 10 | Reverse lights |
| FS16 | 15 | Brake lights |
| FS17 | 5 | Dome / interior lighting |
| FS18 | 10 | Instrument cluster |
| FS19 | 10 | Instrument cluster |
| FS21 | 15 | Cigarette lighter / auxiliary power outlet |
| FS22 | 10 | Audio system |
| FS23 | 15 | Audio system |
| FS26 | 5 | ABS Control Unit (ECU) |
| FS27 | 10 | SRS Airbag Control Unit (ECU) |
| FS28 | 10 | Electric Power Steering (EPS) ECU |
| FS29 | 10 | Power side mirrors |
| FS30 | 15 | Windshield wipers and washer |
| FS31 | 5 | Power sunroof |
| FS32 | 15 | |
| FS33 | 15 | Heated seats |
| FS34 | 10 | Automatic transmission: Transmission Control Unit (TCU) |
| FS35 | 20 | Automatic transmission: Transmission Control Unit (TCU) |
| SB03 | 30 | Ignition switch (AM1 circuit) |
| SB04 | 30 | Ignition switch (AM2 circuit) |
| SB07 | 30 | Blower motor |
Engine Compartment Fuse Box
The fuse box is located in the engine bay next to the battery.
| Fuse & Relay Diagram | ||
|---|---|---|
|
||
| No. | Relay Description | |
| K02 | High-beam headlights | |
| K03 | Fuel pump relay | |
| K04 | A/C compressor clutch | |
| K05 | Cooling fan resistor | |
| K06 | Cooling fan (High speed) | |
| K07 | Cooling fan (Low speed) | |
| K10 | Low-beam headlights | |
| K11 | Main relay | |
| K15 | Daytime Running Lights (DRL) | |
| K17 | Horn | |
| No. | Amps | Circuit Protected |
| FS04 | 25 | Main relay |
| FS05 | 15 | Fuel pump |
| FS06 | 10 | A/C compressor clutch |
| FS10 | 15 | Low-beam headlights |
| FS11 | 15 | High-beam headlights |
| FS20 | 15 | Horn |
| FS24 | 25 | ABS Control Unit (ECU) |
| SB01 | 40 | ABS Control Unit (ECU) |
| SB02 | 60 | Main electrical power feed |
| SB05 | 25 | Cooling fan (High speed) |
| SB06 | 25 | Cooling fan (Low speed) |
| SB08 | 60 | EPS Control Unit |
