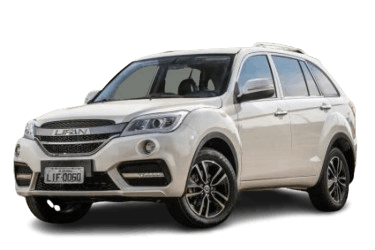

This article provides detailed fuse box diagrams and relay assignments for the Lifan X60 (First Generation;: model years 2012–2022).
Note:
Fuse box layouts and relay assignments may vary depending on model year and vehicle equipment level.
Engine Compartment
Two fuse blocks are located in the engine compartment to protect the vehicle’s electrical circuits.
Power Fusible Links
High-current fusible links are located on the positive (+) battery terminal.
Terminal assembly overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| SB01 | Engine compartment fuse box power feed | 60 |
| SB02 | Engine compartment fuse box power feed | 80 |
| SB03 | Anti-lock Braking System ECU (ABS ECU) | 30 |
| SB04 | 40 | |
| SB05 | Passenger compartment fuse box power feed | 110 |
Main Fuse Box
Located adjacent to the air filter assembly. Remove the protective cover to gain access.
Access overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| K1 | Cooling fan speed control relay | |
| K2 | Main cooling fan relay; | |
| FL Facelift: Low-speed cooling fan relay | ||
| K3 | Auxiliary cooling fan relay; | |
| FL Facelift: High-speed cooling fan relay | ||
| K4 | A/C compressor clutch relay | |
| K5 | Fuel pump relay | |
| K6 | Horn relay | |
| K7 | Parking light / interior lighting relay | |
| K8 | Front fog light / daytime running light (DRL) relay | |
| K9 | Headlight flasher relay (high beam) | |
| K10 | High-beam headlight relay | |
| K11 | Main relay | |
| K12 | Low-beam headlight relay | |
| K13 | Unused; | |
| FL Facelift: Starter relay | ||
| K14 | Unused; | |
| FL Facelift: Reverse light relay | ||
| K15 | Unused; | |
| FL Facelift: Shift interlock relay | ||
| F1 | Engine Control Unit (ECU) | 10 |
| F2 | Ignition switch power supply (IG2) | 25 |
| F3 | Alternator, ignition coils (IG2); | 10 |
| FL Facelift: Anti-lock Braking System (ABS) | ||
| F4 | Unused; FL Facelift: Upstream oxygen sensor (O2S) | 5 |
| F5 | Unused; | 15 |
| FL Facelift: Ignition coils | ||
| F6 | Unused; | 15 |
| FL Facelift: Fuel injectors / radiator cooling fan | ||
| F7 | Unused; | 15 |
| FL Facelift (CVT models): Transmission Control Module (TCM) | ||
| F8 | Unused; | 5 |
| FL Facelift: Downstream oxygen sensor (O2S) | ||
| F9 | Parking lights / interior lighting | 15 |
| F10 | Horn | 15 |
| F11 | Front fog lights | 15 |
| F12 | High-beam headlights | 15 |
| F13 | Low-beam headlights | 15 |
| F14 | Main relay power feed; | 25 |
| FL Facelift: Unused | ||
| F15 | Cooling fan control | 5 |
| F16 | A/C compressor clutch | 10 |
| F17 | Fuel pump | 15 |
| F18 | Rear fog light; | 10 |
| FL Facelift: Unused | ||
| F19 | Unused; | 25 |
| FL Facelift: Main relay power feed | ||
| F20 | High-speed radiator fan (Main) | 30 |
| F21 | Low-speed radiator fan (Auxiliary) | 30 |
| F22 | Unused | - |
| F23 | Unused | - |
| F24 | Unused | - |
| F25 | Unused | - |
| F26 | Unused | - |
| F27 | Unused | - |
| F28 | Unused | - |
| F29 | Unused | - |
Passenger Compartment
The fuse box is located behind the glove compartment.
General layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| K1 | Rear fog light relay | |
| K2 | Heated rear window relay | |
| K3 | Heater blower motor relay | |
| K4 | Unused; | |
| FL Facelift (CVT models): Brake light relay | ||
| F1 | Supplemental Restraint System (SRS airbags) | 15 |
| F2 | Front windshield wiper and washer / daytime running lights | 25 |
| F3 | Engine immobilizer / anti-theft module | 5 |
| F4 | Lifan X60 cigarette lighter | 15 |
| F5 | Power side mirrors | 7.5 |
| F6 | Audio / Multimedia head unit (CD/DVD) | 5 |
| F7 | Interior / dome lighting | 10 |
| F8 | Rear window wiper | 20 |
| F9 | Turn signals | 15 |
| F10 | Brake lights | 10 (FL: 15) |
| F11 | Auxiliary power outlet | 15 |
| F12 | Power windows | 30 |
| F13 | Multifunction display / audio system | 15 |
| F14 | Instrument cluster | 10 |
| F15 | Engine immobilizer / anti-theft module | 10 |
| F16 | Unused; | 15 |
| FL Facelift: Heated passenger seat | ||
| F17 | Body Control Module (BCM) | 5 |
| F18 | Power sunroof | 20 |
| F19 | Heated side mirrors | 10 |
| F20 | Heated rear window | 25 |
| F21 | Central locking system | 20 |
| F22 | Unused; FL Facelift: Rear fog lights |
10 |
| F23 | Reverse lights | 10 |
| F24 | Multifunction display, instrument cluster, sunroof control | 10 |
| F25 | Heated front seats; | 15 |
| FL Facelift: Heated driver's seat | ||
| F26 | Air conditioning system (A/C) | 15 |
| F27 | Ignition switch power supply (AM2) | 40 |
| F28 | Ignition switch power supply (AM1) | 40 |
| F29 | Heater blower motor | 30 |
| F30 | Unused | - |
| F31 | Unused | - |
| F32 | Unused | - |
| F33 | Unused | - |
| F34 | Unused | - |
| F35 | Unused | - |
