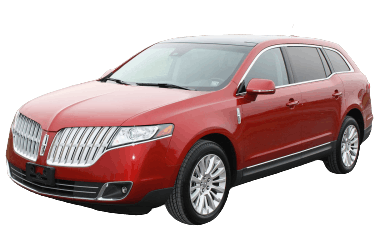

In this article, we provide a detailed overview of the fuse box diagrams for the first-generation Lincoln MKT (Ford D4 platform; 2009–2012 model years).
Fuses 19, 21, and 25 in the engine compartment fuse box and fuse 40 in the passenger compartment fuse box power the cigarette lighter and auxiliary power outlets.
Engine Compartment Fuse Box
Located on the left side of the engine compartment, beneath the protective cover.
General view.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 39 | Fuel pump diode |
| 40 | One-Touch Integrated Start (OTIS) diode |
| 41 | Trailer tow park lamp relay |
| 42 | Left trailer tow stop/turn signal relay |
| 43 | Right trailer tow stop/turn signal relay |
| 44 | Reverse lamps relay |
| 50 | Blower motor relay |
| 51 | Fog lamp deactivation relay |
| 52 | Starter relay |
| 53 | Adaptive cruise control relay |
| 54 | Third-row power seats relay |
| 55 | Front wiper relay |
| 56 | Heated mirrors / Rear window defroster relay |
| 57 | Unused |
| 58 | Unused |
| 59 | Auxiliary blower motor relay |
| 60 | Trailer tow battery charge relay |
| 61 | Console refrigerator relay |
| 62 | Automatic high-beam relay |
| 63 | Run/Start relay |
| 64 | PCM relay |
| 65 | A/C clutch relay |
| 66 | Fuel pump relay |
| 1 | Unused |
| 2 | Unused |
| 3 | Trailer tow brake controller (30 A) |
| 4 | Front and rear wiper motor relay (40 A) |
| 5 | Front passenger power seat (30 A) |
| 6 | 110 V AC power inverter (30 A) |
| 7 | Rear climate-controlled seats (30 A) |
| 8 | Front climate-controlled seats (30 A) |
| 9 | ABS pump motor (40 A) |
| 10 | Starter solenoid (30 A) |
| 11 | Powertrain Control Module (PCM) vehicle power (30 A) |
| 12 | ABS valves (20 A) |
| 13 | High-Intensity Discharge (HID) headlamp – Right side (20 A) |
| 14 | Adaptive cruise control relay, Brake On/Off (BOO) switch (10 A) |
| 15 | Adaptive cruise control system, automatic high beams (15 A) |
| 16 | High-Intensity Discharge (HID) headlamp – Left side (20 A) |
| 17 | Alternator sensor (10 A) |
| 18 | Third-row power seats (30 A) |
| 19 | Front console 12 V power outlet / cigar lighter (20 A) |
| 20 | Heated mirrors and rear defroster (40 A) |
| 21 | Rear console 12 V power outlet / cigarette lighter (20 A) |
| 22 | Trailer tow stop/turn lamps fuse 45 power, trailer tow battery charge (40 A) |
| 23 | EVAP canister vent valve, PCM keep-alive power, relay coils (10 A) |
| 24 | A/C clutch (10 A) |
| 25 | Rear cargo area 12 V power outlet (20 A) |
| 26 | Reverse lamps (15 A) |
| 27 | Fuel pump fuse (15 A) |
| 28 | Engine cooling fan (80 A) |
| 29 | Power window – Left rear, panoramic sunroof, power sunshade module (30 A) |
| 30 | Power window – Left front (30 A) |
| 31 | Auxiliary blower motor (40 A) |
| 32 | Memory seat module, driver power seat motor (30 A) |
| 33 | Run/Start relay (30 A) |
| 34 | Power liftgate module (30 A) |
| 35 | Front A/C blower motor (40 A) |
| 36 | Rear wiper module (secondary feed) (25 A) |
| 37 | Windshield washer pump (15 A) |
| 38 | Trailer tow reverse lamps (10 A) |
| 45 | Trailer tow stop/turn lamps (secondary feed) (20 A) |
| 46 | PCM vehicle power feed #2 and #3 (15 A) |
| 47 | PCM vehicle power feed #1 (20 A) |
| 48 | PCM vehicle power feed #4 (Coil-on-Plug) (15 A) |
| 49 | Heated mirrors (secondary feed) (10 A) |
Passenger Compartment Fuse Box
Located under the instrument panel to the left of the steering column.
Access example.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Power window – Right rear (30 A) |
| 2 | Console refrigerator (15 A) |
| 3 | Second-row lumbar switches, driver seat switch (15 A) |
| 4 | Power window – Right front (30 A) |
| 5 | Third-row power-fold seat module, Brake Transmission Shift Interlock (BTSI) (10 A) |
| 6 | Turn signals (20 A) |
| 7 | Left headlamp – Low beam (10 A) |
| 8 | Right headlamp – Low beam (10 A) |
| 9 | Interior illumination, trunk lamps (15 A) |
| 10 | Puddle lamps, instrument panel backlighting (15 A) |
| 11 | All-Wheel Drive (AWD) module (10 A) |
| 12 | Intelligent Access (IA) module (7.5 A) |
| 13 | Intelligent Access receiver, steering column position switch, power mirror switch, driver door module, driver seat module, keyless entry keypad (5 A) |
| 14 | SYNC® module, power liftgate module, rear seat entertainment (10 A) |
| 15 | Electronic finish panel, climate control module (10 A) |
| 16 | Adaptive Load Module (ALM), navigation display, auxiliary climate control (15 A) |
| 17 | Global window open power feed (20 A) |
| 18 | Audio amplifier (20 A) |
| 19 | Audio amplifier (25 A) |
| 20 | OBD-II Data Link Connector (DLC), second-row power-fold seat motors (15 A) |
| 21 | Front fog lamps (15 A) |
| 22 | License plate lamps, parking lamps, illuminated liftgate appliqué (15 A) |
| 23 | Automatic high-beam relay, high-beam headlamps, fog lamp deactivation relay (15 A) |
| 24 | Horn (20 A) |
| 25 | Second-row power-fold seats, demand lamps/interior illumination, Powertrain Control Module (GTDI) wake-up, third-row seat relay (10 A) |
| 26 | Head-Up Display (HUD), instrument panel cluster (10 A) |
| 27 | Ignition switch, Intelligent Access (20 A) |
| 28 | Radio mute feed (5 A) |
| 29 | Instrument panel cluster (5 A) |
| 30 | Transmission selector / Gearshift lever switch (5 A) |
| 31 | Head-Up Display (HUD), steering angle sensor (10 A) |
| 32 | Restraints Control Module (RCM) (10 A) |
| 33 | Adaptive front-lighting module (10 A) |
| 34 | Front body Run/Start feeds (5 A) |
| 35 | Body Control Module (BCM) Run/Start feeds (10 A) |
| 36 | Spare (5 A) |
| 37 | PCM Run/Start feed, fuel pump relay (10 A) |
| 38 | Trailer tow parking lamps (20 A) |
| 39 | Audio Control Module (ACM) (20 A) |
| 40 | Cigarette lighter / auxiliary power outlet (20 A) |
| 41 | Delayed accessory power feeds (15 A) |
| 42 | Spare (10 A) |
| 43 | Rear wiper, auxiliary blower motor, rain sensor (10 A) |
| 44 | Trailer tow reverse lamps (10 A) |
| 45 | Front blower motor relay, front wiper relay (5 A) |
| 46 | Passenger Airbag Deactivation Indicator (PADI), Occupant Classification Sensor (OCS), Front Control Interface Module (FCIM) (7.5 A) |
| 47 | Circuit breaker: Spare (30 A) |
| 48 | Delayed accessory relay |
