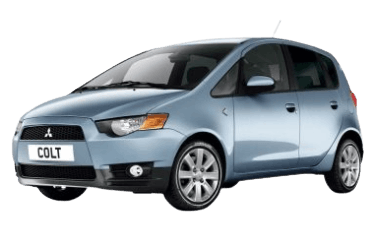

The Colt is a subcompact city car produced by Japanese automaker Mitsubishi. Over the years, the nameplate has been used for sedans, station wagons, and liftbacks, though the primary body style remains the hatchback. This article provides detailed fuse and relay box diagrams for the sixth-generation Mitsubishi Colt (Z platform; chassis codes Z21A / Z22A / Z23A / Z24A / Z25A / Z26A / Z27A / Z28A / Z30), produced from 2003 through 2013.
Below you will find fuse box locations, diagrams, and photos. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Engine Compartment
The main power distribution box is located adjacent to the positive battery terminal.
Fuse box diagram.
- 120A – Fusible links (Nos. 1–4) and fuses (Nos. 10, 14–20, 31, 35, 36, 42) located in the passenger compartment junction box, ETACS ECU, and headlight relay;
- 120A – Fusible link No. 6 located in the main fusible link block;
- 40A – ABS or ABS/ASC brake system control module;
- 60A – EPS (Electric Power Steering) control module;
- 30A – ABS or ABS/ASC brake system control module, alternator;
- 60A – Fuses (Nos. 5, 6, 8, 24, 27, 33, 34) located in the passenger compartment fuse box.
Passenger Compartment
On left-hand drive (LHD) models, the fuse box is located behind the lower dash trim on the driver’s side. Rotate the retainers (A) counterclockwise, then remove the access cover (B).
On right-hand drive (RHD) models, the fuse box is located behind the glove compartment on the passenger side. Open the glove box, depress the tab (A), and remove the access cover (B).
Overview of the Mitsubishi Colt (Z30) passenger compartment fuse box.
| Fuse & Relay Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | Rating (A) |
| F1 | Ignition switch | 40 |
| F2 | Power windows | 40 |
| F3 | Radiator cooling fan | 40 |
| F4 | Automatic / Automated manual transmission | 40 |
| F5 | Heated rear window (Defroster) | 30 |
| F6 | Seat heaters | 30 |
| F7 | Diesel engine control electronics | 30 |
| F8 | Climate control / Blower motor | 40 |
| F9 | Audio system / Radio | 10 |
| F10 | Interior illumination | 10 |
| F11 | Heated exterior mirrors | 7.5 |
| F12 | Electronic Control Unit (ECU) | 7.5 |
| F13 | Windshield wipers | 20 |
| F14 | Right tail light / Side marker | 7.5 |
| F15 | Left tail light / Side marker | 7.5 |
| F16 | Engine management system | 20 |
| F17 | Fuel pump | 15 |
| F18 | Horn | 10 |
| F19 | Left headlight | 10 |
| F20 | Right headlight | 10 |
| F21 | Engine electrical systems | 7.5 |
| F22 | Diesel engine electrical systems | 15 |
| F23 | Auxiliary electrical equipment | 7.5 |
| F24 | Rear fog light | 7.5 |
| F25 | Cigarette lighter | 15 |
| F26 | Rear windshield wiper | 15 |
| F27 | Power sunroof | 20 |
| F28 | Auxiliary 12V power outlet | 15 |
| F29 | Spare | - |
| F30 | Spare | - |
| F31 | Hazard warning lights | 10 |
| F32 | Spare | - |
| F33 | Central door locking | 15 |
| F34 | Front fog lights | 15 |
| F35 | Left low beam headlight | 10 |
| F36 | Right low beam headlight | 10 |
| F37 | Tail lights / License plate lights | 7.5 |
| F38 | Engine Control Module (ECM) | 7.5 |
| F39 | Ignition coils | 10 |
| F40 | Instrument cluster | 7.5 |
| F41 | Relay control circuit | 7.5 |
| F42 | Brake lights (Stop lamps) | 15 |
| F43 | Air conditioning (A/C) system | 7.5 |
| F44 | Spare | - |
| R1 | Power window relay | |
| R2 | Horn relay | |
| R3 | Spare | |
| R4 | Rear fog light relay | |
| R5 | Starter relay | |
| R6 | Engine control relay | |
| R7 | Spare | |
| R8 | Spare | |
| R9 | Front fog light relay | |
| R10 | Blower motor relay | |
| R11 | Spare | |
| R12 | Transmission control relay | |
| R13 | Auxiliary power outlet relay | |
| R14 | Spare | |
| R15 | Spare | |
| R16 | Headlight washer relay | |
| R17 | Rear window defogger relay | |
| R18 | Seat heater relay | |
| R19 | Low beam headlight relay | |
| R20 | High beam headlight relay | |
| R21 | Spare | |
