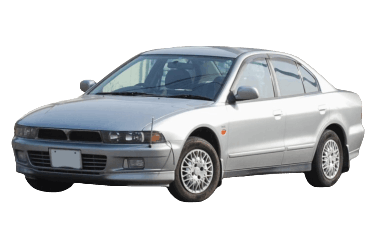

The Galant is a mid-size automobile produced by Mitsubishi Motors from 1969 to 2012. Originally launched as a compact sedan, the model evolved into a mid-size car over subsequent generations. In certain markets, it was also sold as the Legnum or Aspire. This guide details the fuse box diagrams and circuit layouts for the eighth-generation Mitsubishi Galant (chassis codes EA1A / EA2A / EA3A / EA7A / EC1A / EC3A / EC5A / EC7A; 1996–2006 model years).
Below you will find power distribution box locations, layout diagrams, and circuit allocations, including the specific fuse location for the cigarette lighter.
Engine Compartment
Located on the left side of the engine bay.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | Rating (A) |
| 1 | Interior and luggage compartment lighting | 10 |
| 2 | Audio system / Head unit | 15 |
| 3 | A/C condenser fan motor (LHD) | 20 |
| 4 | Front fog lamps | 20 |
| 5 | Air conditioning (A/C) compressor switch / clutch | 10 |
| 6 | Left headlamp (low beam) | 15 |
| 7 | Right headlamp (low beam) | 15 |
| 8 | Parking lamps (left side) | 10 |
| 9 | Parking lamps (right side) | 10 |
| 10 | Rear fog lamps (LHD) | 10 |
| 11 | Engine management system (ECU) | 20 |
| 12 | Hazard lights / Security alarm | 10 |
| 13 | Power windows | 30 |
| 14 | Ignition switch | 30 |
| 15 | Radiator cooling fan motor | 50 |
| 16 | Anti-lock Braking System (ABS) | 60 |
| 17 | Active Yaw Control (AYC) system (4WD RHD models) | 60 |
| 18 | Main power supply (+B) | 60 |
| 19 | Alternator / Generator | 100 |
Relays:
- A – Central door locking relay;
- B – Parking lamp relay;
- C – Front fog lamp relay;
- D – Horn relay;
- E – Low beam headlamp relay;
- J – Air conditioning (A/C) relay;
- H – Alternator relay;
- F – Headlamp washer relay;
- I – Turn signal relay;
- G – Spare;
- R – Radiator fan control relay;
- S – Starter relay (manual transmission models).
An auxiliary ABS relay module may be mounted separately outside the main fuse block.
Passenger Compartment
Located at the lower section of the dashboard behind the trim cover / glove box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | Rating (A) |
| 1 | Heated rear window and heated door mirrors | 30 |
| 2 | Heater blower motor | 30 |
| 3 | Control modules (ABS, ASC, automatic transmission TCU, engine ECU, AYC*) | 15 |
| 4 | SRS airbag control unit; Turn signal and hazard flasher relay | 10 |
| 5 | Control modules (automatic transmission TCU, ETACS, engine ECU [4G93]); instrument cluster; reverse lamps; navigation system; transmission pulse generator / speed sensor | 10 |
| 6 | Keyless entry / Remote door locking; navigation system**; DS3 audio system**; head unit; CD changer; MMCS display; power mirror controls; clock; audio amplifier | 10 |
| 7 | Galant 8 cigarette lighter fuse | 15 |
| 8 | Windshield wiper and washer; rear window wiper and washer; ETACS control module | 20 |
| 9 | ABS control module, ABS warning lamps; AYC and ASC sensors; power sunroof control module; ASC solenoid valve relay | 10 |
| 10 | Spare / Unused | - |
| 11 | ETACS system control module; Clock; Instrument cluster | 15 |
| 12 | Navigation system; AYC and ASC sensors; Alternator relay; Turn signal lamps** | 10 |
| 13 | Control modules (ETACS, SRS); Vehicle Speed Sensor (VSS); Instrument cluster illumination rheostat; Instrument cluster | 10 |
| 14 | Horn | 10 |
| 15 | Active Yaw Control (AYC) control module | 10 |
| 16 | Heater blower motor relay; Control modules (A/C compressor, climate control); Windshield wiper de-icer; Heated rear window; Manual A/C controls and actuators | 10 |
| 17 | Spare / Unused | 30 |
| 18 | Spare / Unused | 10 |
| 19 | Spare / Unused | 15 |
| 20 | Spare / Unused | 20 |
Relay allocations:
- R1 – Blower motor relay
- R2 – Rear window defogger relay
- R3 – Turn signal and hazard flasher relay
On select Mitsubishi Galant 8 models, an auxiliary fuse panel is located adjacent to the main junction block.
Description:
- 13 – Windshield wiper de-icer / 20 A;
- 14 – Heated door mirrors / 10 A;
- 15 – Power sunroof control module / 20 A;
- 16 – Spare / Unused.
