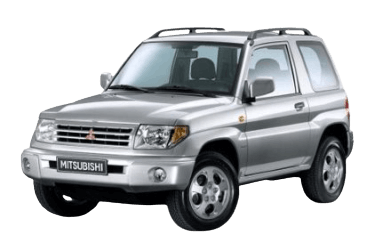

This document details the fuse box diagrams for Mitsubishi Montero iO (chassis codes H66W/H76W/H77W) model years 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, and 2006 (also known in regional markets as the Pinin, Pajero iO, Pajero Pinin, or Shogun Pinin).
Below you will find the locations and diagrams for the power distribution boxes. The fuse assigned to the “cigarette lighter” circuit is highlighted in bold.
Passenger Compartment
Located on the driver’s side at the bottom of the instrument panel.
Overview of the interior passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Protected Circuit |
| 1 | 20 | Heated seats |
| 2 | 10 | Heated power mirrors |
| 3 | Sunroof | |
| 4 | 10 | Spare |
| 5 | 15 | |
| 6 | 20 | |
| 7 | 10 | Rear fog lamp |
| 8 | 20 | Central door locking system |
| 9 | 30 | Heater / Blower motor |
| 10 | 15 | Rear window wiper motor |
| 11 | — | — |
| 12 | — | |
| 13 | 15 | Cigarette lighter |
| 14 | 10 | Control relays |
| 15 | 10 | Instrument cluster |
| 16 | ||
| 17 | 10 | Reverse (backup) lamps |
| 18 | 30 | Rear window defogger |
| 19 | 30 | Spare |
Engine Compartment
Located in the engine bay near the battery.
Overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Protected Circuit |
| 1 | 60 | Anti-lock Braking System (ABS) |
| 2 | 60 | Fuse box main power feed (+B) |
| 3 | 100 | Alternator |
| 4 | 40 | Radiator cooling fan motor |
| 5 | 30 | Power windows |
| 6 | 30 | Ignition switch |
| 7 | 20 | Engine management electronics |
| 8 | 25 | A/C condenser fan motor |
| 9 | 10 | Auxiliary power socket |
| 10 | 20 | Power sunroof |
| 11 | 15 | Stop (brake) lamps |
| 12 | 10 | Hazard warning / Security alarm |
| 13 | 10 | Audio system |
| 14 | 10 | Interior / Dome lamps |
| 15 | 10 | Air conditioning (A/C) compressor |
| 16 | 15 | Front fog lamps |
| 17 | 15 | Horn |
| 18 | 20 | Windshield wiper motor |
| 19 | 10 | Left tail lamp |
| 20 | 10 | Right tail lamp |
| 21 | 10 | Left low-beam headlamp |
| 22 | 10 | Right low-beam headlamp |
| 23 | 10 | Left high-beam headlamp |
| 24 | 10 | Right high-beam headlamp |
