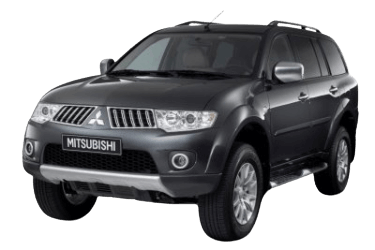

The Pajero Sport is a mid-size SUV manufactured by the Japanese automaker Mitsubishi, which debuted in 1996. It was built on the L200 pickup truck platform. In Japan, it is sold under the name Challenger, while in the U.S. market, it is known as the Montero Sport. In this article, we will take a detailed look at the fuse box diagrams for the second-generation Mitsubishi Montero Sport / Pajero Sport / Challenger (chassis codes KG / KH / PB; SP platform) produced from 2008 to 2016.
Here you will find power distribution box locations, wiring diagrams, and photos. Fuses for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
In the engine compartment
Located on the left side of the engine bay next to the battery.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit / Fuse Assignment | Rating (A) |
| 1 | Spare | - |
| 2 | Power Windows | 40 |
| 3 | Ignition Switch | 40 |
| 4 | A/C Compressor Clutch | 20 |
| 5 | Condenser Fan Motor | 20 |
| 6 | High Beam Headlamp (Left) | 10 |
| 7 | High Beam Headlamp (Right) | 10 |
| 8 | Low Beam Headlamp (Left) | 10 / 20 |
| 9 | Low Beam Headlamp (Right) | 10 / 20 |
| 10 | Engine Control Unit (ECU) | 20 |
| 11 | Generator / Alternator | 7.5 |
| 12 | Brake Lights / Stop Lamps | 45 |
| 13 | Horn | 10 |
| 14 | Automatic Transmission (A/T) | 20 |
| 15 | Hazard Warning Flasher | 10 |
| 16 | Fuel Pump | 15 |
| 17 | Front Fog Lamps | 15 |
| 18 | Audio System | 20 |
|
||
| No. | Relay Assignment | |
| A-12X | Front Wiring Harness & Relay Box Combination | |
| 1 | Front Fog Lamp Relay | |
| 2 | A/C Condenser Fan Relay | |
| 3 | Spare | |
| 4 | Starter Relay | |
| 5 | Horn Relay | |
| 6 | Blower Motor / Heater Relay | |
| 7 | Automatic Transmission Control Relay | |
| 8 | Engine Control Relay | |
| 9 | A/C Compressor Clutch Relay | |
| 10 | Headlamp Relay (Low Beam) | |
| 11 | Headlamp Relay (High Beam) | |
| 12 | Power Window Relay | |
| 13 | Spare | |
| 14 | Rear Blower Fan Relay | |
Note: On diesel engine models, an auxiliary glow plug / fuel heater relay unit is additionally installed.
In the passenger compartment
Located at the lower left of the instrument panel on the driver's side, behind the access cover.
General view of the interior fuse panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating (A) |
| R1 | Seat Heater Relay | |
| R2 | Auxiliary Power Outlet Relay | |
| R3 | Rear Fog Lamp Relay | |
| R4 | Spare | |
| R5 | Blower Motor Relay | |
| R6 | Rear Window Defroster Relay | |
| R7 | Spare | |
| 1 | Tail / Parking Lamps (Left) | 7.5 |
| 2 | Cigarette Lighter | 15 |
| 3 | Ignition Coils | 10 |
| 4 | Starter Signal | 7.5 |
| 5 | Power Sunroof | 20 |
| 6 | 12V Auxiliary Power Outlet | 15 |
| 7 | Tail / Parking Lamps (Right) | 7.5 |
| 8 | Power Exterior Mirrors | 7.5 |
| 9 | Engine Control Module (ECM) | 7.5 |
| 10 | Body Control Module / ECU | 7.5 |
| 11 | Rear Fog Lamp | 10 |
| 12 | Central Door Locking System | 15 |
| 13 | Interior Courtesy Lamps | 10 |
| 14 | Rear Window Wiper & Washer | 15 |
| 15 | Instrument Cluster / Dashboard | 7.5 |
| 16 | A/C Compressor Clutch Relay, Condenser Fan Relay, Blower Motor Relay, HVAC Control Unit, Rear Blower Relay, Rear Cooler Control Panel, Rear Fan Switch, Rear Defroster Relay | 7.5 |
| 17 | Heated Seats | 20 |
| 18 | Accessory Power Supply (ACC) | 10 |
| 19 | Heated Exterior Mirrors | 7.5 |
| 20 | Windshield Wipers | 20 |
| 21 | Reverse / Backup Lamps | 7.5 |
| 22 | Rear Window Defroster / Heated Glass | 30 |
| 23 | HVAC Blower Motor / Heater System | 30 |
| 24 | Power Seats | 40 |
| 25 | Audio System | 10 |
| 26 | Electronic Control Unit (ECU / ETACS) | 15 |
