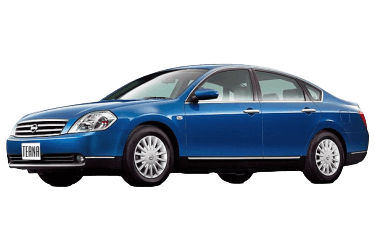

The Nissan Teana has been produced from 2003 to the present. The first generation (chassis code J31; FF-L platform) was manufactured from 2003 to 2008; the second generation (J32) from 2008 to 2013; and the third generation (J33) from 2013 to 2019. Each generation underwent a mid-cycle facelift. Below you will find fuse and relay box diagrams, photos, and assignments for the first-generation Nissan Teana. The cigarette lighter fuse is highlighted in bold.
Depending on the equipment configuration, model year, and market region, fuse box layouts may differ from those shown in this article. Always verify assignments against the protective cover label on your vehicle's fuse box.
In the Passenger Compartment
The fuse box is located behind the glove compartment.
Reference photo.
| Diagram | |
|---|---|
|
|
| No. | Circuit Protected |
| 1 | 10A Engine Control Module (ECM) |
| 2 | 10A Starter signal |
| 3 | 10A Seat heaters |
| 4 | 10A Audio system |
| 5 | 15A Auxiliary power socket |
| 6 | 10A Heated mirrors, power mirrors, keyless entry, air conditioning, headlight leveling control, rear fog lamp, front fog lamps, instrument cluster illumination, power antenna, headlight washers, audio system, combination switch, tail lamps, AV module |
| 7 | 15A Cigarette lighter |
| 8 | 10A Seat heaters, air conditioning |
| 9 | 10A Memory seat module |
| 10 | 15A Air conditioning (A/C) |
| 11 | 15A Air conditioning (A/C) |
| 12 | 10A Cruise control, Data Link Connector (DLC), vehicle speed sensor, gear selector, transmission position indicators, Vehicle Dynamic Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), Adaptive Front-Lighting System (AFS), power rear sunshade, warning buzzer, instrument panel illumination, instrument cluster, audio system, rear window defogger, seat heaters, headlight leveling control, tail lamps, air conditioning |
| 13 | 10A Supplemental Restraint System (SRS) |
| 14 | 10A Instrument cluster: instrument panel illumination, warning buzzer, transmission position indicators, Park/Neutral Position (PNP) switch, cruise control, Data Link Connector (DLC), CVT manual mode, ABS, Vehicle Dynamic Control (VDC), SRS, keyless entry, power rear sunshade, charging system, headlights, front fog lamps, rear fog lamp, turn signal and hazard warning lamps, tail lamps, backup lamps, AV module |
| 15 | 15A Ventilated seats, headlight washers, windshield washer |
| 16 | Not used |
| 17 | 15A Central locking, cruise control, Data Link Connector (DLC), Transmission Control Module (TCM), transmission fluid temperature sensor, Engine Control Module (ECM), gear selector, CVT manual mode, Vehicle Dynamic Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), trunk release, power windows, sunroof, rear window defogger, power seats, memory seat module, headlight leveling control, headlights, front fog lamps, rear fog lamp, turn signal and hazard warning lamps, combination switch, reverse lamp switch, instrument panel illumination, instrument cluster, interior lighting, warning buzzer, transmission position indicators, AV module |
| 18 | 15A Gear selector lever, central locking, keyless entry, Nissan Anti-Theft System (NATS), memory seat module, interior lighting, warning buzzer |
| 19 | 10A Active engine mounts, Data Link Connector (DLC), CVT manual mode, Vehicle Dynamic Control (VDC), keyless entry, Nissan Anti-Theft System (NATS), air conditioning, tail lamps, instrument panel illumination, instrument cluster, warning buzzer, AV module, transmission position indicators |
| 20 | 10A Stop lamps, brake light switch, cruise control, Vehicle Dynamic Control (VDC), ABS, gear selector |
| 21 | 10A Interior lighting, vanity mirror illumination |
| 22 | 10A Fuel filler door release |
| S | Spare fuse |
| R1 – Seat heater relay | |
| R2 – Blower motor / heater relay | |
| R3 – Auxiliary equipment relay (ACC) | |
| Fuse No. 7 (15A) controls the cigarette lighter | |
The rear window defogger relay may be located separately on the right-hand side.
In the Engine Compartment
The engine compartment houses two main fuse and relay boxes, along with high-current fusible links located on the positive battery terminal.
Right-Hand Fuse Box
Located adjacent to the windshield washer fluid reservoir.
Reference photo.
| Diagram | |
|---|---|
|
|
| No. | Circuit Protected |
| 71 | 15A Parking / clearance lamps |
| 72 | 10A High beam (Right) |
| 73 | 20A Windshield wiper relay |
| 74 | 10A High beam (Left) |
| 75 | 20A Rear window defogger |
| 76 | 10A Low beam (Right) |
| 77 | 15A Main relay, ECM, Nissan Anti-Theft System (NATS) |
| 78 | 15A Fuse and relay box power |
| 79 | 10A A/C compressor relay |
| 80 | Not used |
| 81 | 15A Fuel pump relay |
| 82 | 10A Anti-lock Braking System (ABS), Vehicle Dynamic Control (VDC) |
| 83 | 10A ECM, vehicle speed sensor, Transmission Control Module (TCM), transmission fluid temperature sensor, CVT speed sensor, starter relay |
| 84 | 10A Windshield wiper and washer |
| 85 | 15A Heated oxygen sensors (HO2S) |
| 86 | 15A Low beam (Left) |
| 87 | 15A Electronic throttle control motor |
| 88 | 15A Front fog lamps |
| 89 | 10A Engine Control Module (ECM) |
| Relays | |
| R1 | Main relay |
| R2 | High beam relay |
| R3 | Low beam relay |
| R4 | Starter relay |
| R5 | Ignition relay |
| R6 | Radiator cooling fan relay 3 |
| R7 | Radiator cooling fan relay 1 |
| R8 | Radiator cooling fan relay 2 |
| R9 | Electronic throttle control relay |
| R10 | Fuel pump relay |
| R11 | Front fog lamp relay |
Left-Hand Fuse Box
Located adjacent to the battery.
| Diagram | |
|---|---|
|
|
| No. | Circuit Protected |
| 1 | 30A Headlight washers |
| 2 | 40A Anti-lock Braking System (ABS), Vehicle Dynamic Control (VDC) |
| 3 | 30A Anti-lock Braking System (ABS) |
| 4 | 50A Power windows, central locking, rear window defogger, sunroof, keyless entry, Nissan Anti-Theft System (NATS), memory seat module, ventilated seats, headlights, headlight leveling control, front/rear fog lamps, turn signals and hazard warning lamps, combination switch, reverse lamp switch, instrument panel illumination, instrument cluster, interior lighting, warning buzzer, transmission position indicators, headlight washers |
| 5 | Not used |
| 6 | 10A Alternator |
| 7 | 10A Horn / warning buzzer |
| 8 | 10A Adaptive Front-Lighting System (AFS) |
| 9 | 15A Audio system |
| 10 | 10A Rear window defogger relay, heated mirror relay |
| 11 | Not used |
| 12 | Not used |
| 13 | 40A Ignition switch |
| 14 | 40A Radiator cooling fan |
| 15 | |
| 16 | 50A Vehicle Dynamic Control (VDC) |
| R1 – Horn relay | |
| R2 – Windshield wiper relay | |
High-Current Fusible Links
Located directly on the positive battery terminal assembly.
- A – 120A Alternator, Fuses B & C
- B – 80A Engine compartment fuse box No. 2
- C – 60A High beam relay, low beam relay, Fuses 71, 75, 87, and 88
- D – 80A Passenger compartment fuse box (Fuses 17, 18, 19, 20, 21, and 22)
- E – 100A Ignition relay, engine compartment fuse box No. 1 (Fuses 77, 78, and 79)
