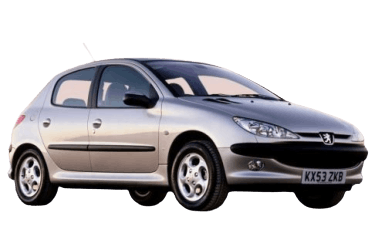

Peugeot 206 is a car produced from 1998 to 2010 and replaced the 205th model on the conveyor. The range of bodies is diverse and includes several types: a hatchback in three- or five-door versions, as well as a two-door coupe-convertible, a sedan and a five-door station wagon. The car was originally launched as a hatchback. The appearance of the model is characterized by the so-called "biodesign", while the hatchback Peugeot 206 is endowed with a bright personality, which is facilitated by the narrow lenses of "slanting" headlights, a lowered hood, prominent lining on the bumpers and on the doors, embossed sills that emphasize the energetic profile.
In our material, we will analyze in detail the fuse circuits for the Peugeot 206 1st generation (restyled) 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 release. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.
In the passenger compartment
Located on the driver's side, at the bottom of the dashboard. The unit is closed with a protective cover.
Photo is an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Electric seat heating, alarm siren | 15 |
| 4 | Multifunction display, on-board navigation computer, trunk lighting, car radio | 20 |
| 5 | Automatic transmission diagnostic unit | 15 |
| 6 | Coolant level sensor, automatic transmission unit, car radio | 10 |
| 7 | Additional devices and equipment of a training car, a security alarm unit | 15 |
| 9 | Rear door windows | 30 |
| 10 | Heated rear window and exterior mirrors | 40 |
| 11 | Rear window wiper | 15 |
| 12 | Front windows, ventilation hatch | 30 |
| 14 | Electronic engine control unit, airbags, steering column switches, rain sensor | 10 |
| 15 | Instrument panel, multifunction display, on-board navigation computer, air conditioning control unit, car radio | 15 |
| 16 | Door locking / unlocking control unit | 30 |
| 20 | Right brake light | 10 |
| 21 | Left brake light, third brake light | 15 |
| 22 | Front and rear lighting (206 SW), local lighting, glove box lighting, Peugeot 206 cigarette lighter fuse , rear 12 V socket (206 SW) | 30 |
| S1 | Shunt "PARC" | |
In the engine compartment
Located on the driver's side, near the battery. It can have two versions: Siemens or Delphi.
General view - Siemens type.
| Description of the motor fuse box | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Diesel Glow Plug Electronic, Water in Diesel Sensor, Reversing Light Switch, Speed Sensor, Diesel Air Mass Meter | 10 |
| 2 | Absorber solenoid valve, fuel pump | 15 |
| 3 | ABS system | 10 |
| 4 | Automatic transmission computer, engine computer | 10 |
| 5 | No | - |
| 7 | Headlight washer pump | 20 |
| 8 | Engine Cooling Fan Relay, Engine Computer, Diesel Injection Pump, Diesel Fuel High Pressure Regulator, Engine Solenoid Valve | 10 |
| 9 | Left headlight dipped beam | 15 |
| 10 | Right headlight dipped beam | 15 |
| 11 | Left headlight high beam | 10 |
| 12 | Right headlight high beam | 15 |
| 13 | Horn | 15 |
| 14 | Windscreen and rear window washer pumps | 10 |
| 15 | Throttle body heating unit, diesel fuel injection pump, oxygen sensor, engine computer, air flow meter, ignition coil, engine solenoid valve, diesel fuel heating unit, injectors | 30 |
| 16 | Compressor relay | 30 |
| 17 | Maximum and low speed of the wiper | 30 |
| 18 | Heating and ventilation electric fan | 40 |
On the side of the block there are MAXI fuses .
|
||
| No. | Description | A |
| 1 | Engine cooling fan | 20 |
| 2 | ABS braking system | 60 |
| 3 | 30 | |
| 4 | Power supply of the intelligent switching unit | 70 |
| 5 | 70 | |
| 6 | No | - |
| 7 | Ignition lock power supply with anti-theft device | 30 |
| 8 | No | - |
