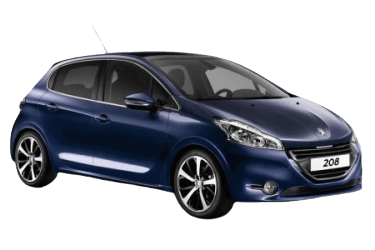

The Peugeot 208 is a subcompact car produced by Peugeot, which replaced the 207 model. European sales began in the summer of 2012. This article provides detailed fuse box diagrams and allocation tables for the first-generation Peugeot 208 (chassis code A9; PSA PF1 platform; EB, EP, and DV series engines) covering model years 2012 through 2019.
Below are the location diagrams, component photographs, and fuse assignment tables for the distribution boxes. The fuse for the cigarette lighter socket is highlighted in bold.
Engine Compartment Fuse Box
Located on the left side of the engine bay, adjacent to the battery. Remove the protective cover to access the fuses.
General view of the engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F16 | Front fog lamps | 15 |
| F18 | Right-hand main beam headlamp | 10 |
| F19 | Left-hand main beam headlamp | 10 |
| F25 | Headlamp washer relay (aftermarket) | 30 |
| F29 | Windscreen wiper motor | 40 |
| F30 | Glow plugs (DV diesel engines) | 80 |
Passenger Compartment Fuse Boxes
Two fuse boxes are located inside the passenger compartment to protect interior electrical circuits.
Main Fuse Box
Located on the driver’s side in the lower portion of the dashboard.
Unclip and remove the lower dashboard trim panel to gain access.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F2 | Exterior door mirrors, headlamps, OBD diagnostic connector | 5 |
| F9 | Anti-theft alarm system | 5 |
| F10 | Autonomous telematics unit, trailer ECU | 5 |
| F11 | Electrochromic rear-view mirror, optional heated mirrors | 5 |
| F13 | Hi-Fi amplifier, parking assistance system (Parktronic) | 5 |
| F16 | Front 12V power socket Peugeot 208 cigarette lighter fuse |
15 |
| F17 | OEM audio unit, aftermarket audio unit | 15 |
| F18 | Touchscreen display | 20 |
| F23 | Glove compartment lighting, vanity mirror lighting, interior courtesy lighting | 5 |
| F26 | Horn | 15 |
| F27 | Windscreen washer pump | 15 |
| F28 | Ignition switch and steering column lock | 5 |
| F29 | Air conditioning compressor | 15 |
| F30 | Rear window wiper motor | 15 |
Additional Fuse Box
Located behind the glove compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F01 | Heated rear screen | 40 |
| F02 | Heated exterior mirrors | 10 |
| F03 | Front electric windows | 30 |
| F04 | Spare / Unused | - |
| F05 | Rear electric windows | 30 |
| F06 | Power-folding exterior mirrors | 10 |
| F07 | 10 | |
| F08 | Spare / Unused | - |
| F09 | Heated front seats | 15 |
| F10 | Hi-Fi audio amplifier | 20 |
| F11 | Spare / Unused | - |
| F12 | Spare / Unused | - |
