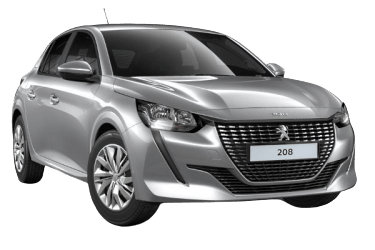

The 208 is a subcompact car produced by Peugeot, which replaced the 207 model in its line-up. European sales commenced in the summer of 2012. The second generation was unveiled at the Geneva Motor Show in March 2019 and officially launched in Europe that summer. This generation transitioned from the older PF1 platform to the Common Modular Platform (CMP). Below is a detailed breakdown of the fuse box diagrams for the Peugeot 208 (second generation; code P21; CMP platform) for model years 2019 through 2024.
Below you will find the locations and diagrams of the power distribution boxes. Fuses for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment
Two power distribution boxes are housed in the engine bay.
Battery Power Distribution Box
Mounted directly to the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Two-speed radiator fan Electronic Control Unit (ECU) | 60 |
| F2 | Engine compartment fuse box | 100 |
| F3 | Electric Power Steering (EPS) | 80 |
| F4 | Passenger compartment fuse box | 80 |
| F5 | Passenger compartment fuse box | 80 |
Main Engine Compartment Fuse Box
Located on the left side of the engine compartment. Remove the protective cover to access the components.
Assembly overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | Engine Control Unit (ECU) / Euro 6 Diesel (SCR module power supply) | |
| R2 | A/C compressor clutch / Heated windshield | |
| R3 | Starter relay / Thermal preconditioning | |
| R4 | Front fog lights / Daytime Running Lights (DRL) relay | |
| R5 | A/C condenser fan relay | |
| R6 | Starter motor relay | |
| R7 | Windshield wiper relay | |
| R8 | Windshield wiper relay | |
| R9 | Headlight relay | |
| F1 | A/C condenser fan | 40 |
| F2 | ABS/ESP control module | 60 |
| F3 | Passenger compartment fuse box 3 | 80 |
| F4 | ABS/ESP control module | 30 |
| F5 |
|
50 / 20 |
| F6 |
|
60 / 20 |
| F7 | Built-in Systems Interface (BSI) | 70 |
| F8 | Engine management fuel pump, electronically controlled thermostat, oil pump solenoid valve, purge valve, intake air mass meter, oxygen sensors (EP6FADTX), electronically controlled thermostat, switchable coolant valve, solenoid valve (EP6FDT), Engine Control Unit (EB2DT / EP6FDT), controlled fuel lift pump (DV6F / DW10F) | 15 / 20 |
| F9 | Controlled fuel lift pump (DW10F), variable timing intake/exhaust solenoid valves, electronically controlled thermostat, oil pump solenoid valve, intake air mass meter, oxygen sensors (EP6FADTX), switchable coolant valve, solenoid valve (EP6FDT) | 15 |
| F10 | Engine Control Unit (ECU), diesel fuel metering valve, turbocharger boost control solenoid valve (DV5R / DW10F), thermostat heater (DV5R), canister purge heater, variable valve timing solenoids (EP6FADTX), cylinder scavenging valve, upstream oxygen sensors (EB2ADTS) | 15 |
| F11 | Engine Control Unit (ECU) | 20 |
| F12 | Instrument cluster, GMV fan relays, Stop & Start system (i-StARS / DMTC), electric turbocharger coolant pump (EB2ADTS / EP6FADTX), Built-in Systems Interface (EP6FADTX) | 5 |
| F13 | Built-in Systems Interface (BSI) | 5 |
| F14 | Battery charge monitoring unit (BECB) | 5 |
| F15 |
|
15 / 10 |
| F16 | Heated windshield | 20 |
| F17 | Powertrain relay diagnostics (BFRM), BSI1, Engine Control Unit (ECU), downstream NOx sensor (DV5R / DW10F), fuel injectors (DV5R) | 10 |
| F18 | Right headlight high beam | 10 |
| F19 | Left headlight high beam | 10 |
| F20 | Engine Control Unit (ECU), fuel lift pump (EP6FDT), ignition coils (EB2ADTS / EP6FADTX) | 30 |
| F21 | Starter motor | 30 |
| F22 | Reserved (Taxi equipment) | 30 |
| F23 | Starter / Alternator | 40 |
| F24 | Passenger compartment fuse box 5 | 40 |
| F25 | Passenger compartment fuse box 3 | 40 |
| F26 | Cabin heater / HVAC blower | 15 / 20 |
| F27 | Built-in Systems Interface / BSI (Right low beam headlight, right reverse light, left fog light, rear left parking light, high-mounted center brake light) | 25 |
| F28 | AdBlue pump power supply and AdBlue line heater resistor (SCR / DV5R), NOx sensor (DW10F), Engine Control Unit (EP6FADTX) | 30 |
| F29 | Windshield wipers | 40 |
| F30 | Glow plug pre-heating module | 80 |
| F31 | Protection and Switching Module (BSM) | 80 |
| F32 | Power steering, left low beam headlight, turn signals, side repeater lights, front left and rear right parking lights, left brake lights, license plate lights | 80 |
Passenger Compartment
On left-hand drive (LHD) vehicles, the interior fuse box is located on the lower driver-side instrument panel behind the trim cover.
On right-hand drive (RHD) vehicles, the fuse box is located behind the glove box on the passenger side.
Cabin Fuse Box
General view for reference.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | Auto-dimming rearview mirror / Power steering adjustment / Drive mode selector / Radar sensor / Diesel emissions system |
| F3 | Wireless smartphone charger |
| F4 | Horn |
| F5 | Windshield and rear window washer pump |
| F6 | Windshield and rear window washer pump |
| F7 | Rear USB charging port |
| F8 | Rear window wiper |
| F10 | Central locking / Tailgate lock actuator |
| F11 | Central locking / Tailgate lock actuator |
| F12 | Stop & Start system / OBD2 diagnostic port module / Braking system |
| F13 | Infotainment unit / Climate control module |
| F14 | Anti-theft alarm siren |
| F15 | Climate control system (HVAC) |
| F16 | Stop & Start system / Braking system |
| F17 | Instrument cluster |
| F18 | Parking assistance system |
| F19 | Steering column switch module (Com2000) / Steering wheel controls |
| F21 | Anti-theft alarm system |
| F22 | Multifunction camera / Rain & light sensor / Automatic headlight control |
| F23 | Seat belt reminder module |
| F24 | 7-inch touchscreen / Park Assist system / 360-degree vision system |
| F25 | Airbag Control Unit (ACU) |
| F26 | Electronic Stability Control (ESC) module |
| F27 | Alarm system status LED |
| F28 | Telematic control unit (BTA) / OnStar module |
| F29 | Infotainment head unit |
| F31 / F32 | Peugeot 208 center console 12V cigarette lighter sockets |
| F34 | Heated rear window / Heated windshield / Wireless charging pad |
| F35 | Headlight switch / OBD2 diagnostic port connector |
| F36 | Interior ambient lighting / Courtesy lamps |
Relay Panel
Located behind the main cabin fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Purpose | Rating (A) |
| R1 | Heated seats relay | |
| R2 | Power windows relay | |
| R3 | Climate control / Heated rear window relay | |
| R4 | Unassigned | |
| R5 | Unassigned | |
| R6 | Unassigned | |
| R7 | Unassigned | |
| F1 | Heated rear window element | 40 |
| F2 | Heated exterior mirrors | 10 |
| F3 | Front power windows | 30 |
| F4 | Power folding / Power adjustable exterior mirrors | 10 / 15 |
| F5 | Rear power windows | 30 |
| F6 | Luggage compartment 12V auxiliary power outlet / Panoramic sunroof | - |
| F7 | Unassigned | - |
| F8 | Passenger compartment main fuse box | - |
| F9 | Unassigned | - |
| F10 | Heated front seats | 20 |
| F11 | Front seat massage function | 20 |
| F12 | Hi-Fi audio amplifier | 25 |
