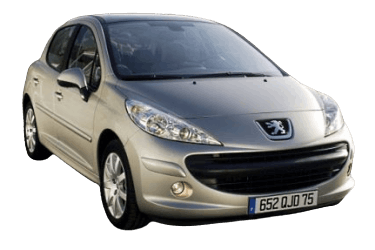

Fuses Peugeot 207 (WA; WC; WB), 2006 - 2013

The Peugeot 207 replaced the 206 in 2006. The car has retained the recognizable silhouette of its predecessor, but the design has become even brighter and more emotional. At the front, hereditary features dominate: a large radiator grille, made in the brand's new corporate style, and large headlights stretching to the A-pillar. Peugeot 207 has become slightly larger than the 206, the wheelbase has increased, thanks to which the interior space has been optimized: the interior and luggage compartment have received an additional increase in volume. The manufacturer claims more effective sound insulation and a more efficient climate system.

In our material, we will analyze in detail the fuse circuits of the Peugeot 207 1st generation (WA; WC; WB body) 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 model year. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.

In the engine compartment

Located on the left side of the engine compartment.

General view of the fuse box front part.

No. Description A
F1 Power supply to the engine ECU and the cooling fan motor relay, distribution system and adsorber solenoid valves (1.6 l THP 16V), air flow sensor (on diesel engines), high pressure fuel pump (on diesel engines), water in diesel fuel sensor, recirculation solenoid valves exhaust gases, air heating (on diesel engines). 20
F2 Sound signal. 15
F3 Windscreen and rear window washers. 10
F4 Headlight washer. 20
F5 Fuel pump fuse (on petrol engines), turbocharger solenoid valves (1.6L THP 16V). 15
F6 Vehicle speed sensor, automatic transmission. 10
F7 Electric power steering, switch relay with protection system (on diesel engines). 10
F8 Starter switch. 25
F9 ABS / ESP ECU, brake pedal contactor. 10
F10 Engine ECM system components (gasoline engine: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (diesel engine: solenoid valves, heaters). 30
F11 Air conditioning fan. 40
F12 Slow / fast speed of the windshield wiper. 30
F13 Power supply of the intelligent switching unit (+ after ignition). 40
F14 Diesel fuel heater. 30
F15 Left high beam headlamp 10
F16 High beam headlight, right 10
F17 Left low beam headlamp 15
F18 RH low beam headlamp 15

Power fuses of the "MAXI" type are located on the side of the block.

No. Decoding of fuses A
M1 Cooling fan. 70
M2 ABS / ESP pump. 20/30
M3 ABS / ESP solenoid valves. 20/30
M4 Switching unit power supply 60
M5 60
M6 Additional fan of the engine cooling system (1.6L THP 16V). 30
M7 Passenger compartment fuse box. 80
M8 Reserve 30
M9 Fuel heating system (on diesel engines). 80
M10 Electric power steering 80
M11 Valvetronic electric motor (1.6 L THP 16V). 40

In the passenger compartment

Located on the driver's side, at the bottom of the dashboard. To access, remove the cover from the latches by pulling on the top of the cover.

Access example.

General view of the block.

No. Description of fuses A
F1 Rear window wiper 15
F2 Empty
F3 Airbag ECU and pyrotechnic tensioners. 5
  • Clutch pedal contactor,
  • diagnostic connector,
  • light-sensitive rear-view mirror,
  • air conditioner,
  • steering wheel position sensor,
  • a pump for supplying an additive to a particulate filter (on diesel engines).
  • Electric power windows, power windows,
  • blind, rear panoramic impulse roofs (on SW).
F6 Front impulse power windows, power supply for the drive of the side rear-view mirrors. 30
F7 Front lighting, backlighting and rear lighting on sun protection, individual visor lampshades, glove box lighting. 5
F8 Car radio, clock, steering column radiotelephone switches, trailer switching unit. 20
  • Front 12V socket, rear 12V socket (SW).
  • Peugeot 207 cigarette lighter fuse
F10 Reserve 15
F11 Diagnostic Connector, Ignition Low Current Circuit, Automatic Transmission ECU. 15
  • Rain / light sensor,
  • amplifier,
  • trailer switch box
  • Engine switching unit,
  • ABS relay,
  • dual-function brake contactor.
F14 A combination of safety devices, a corrector, a headlight panel, air conditioning, a hands-free system, parking sensors, airbags. 15
F15 Locking the locks 30
F16 Reserve
F17 Heated rear window and exterior mirrors 40
F18 SH - PARC.
G39 Hi-Fi amplifier. 20
G40 Heated driver and passenger seats (except RHD models) 20
