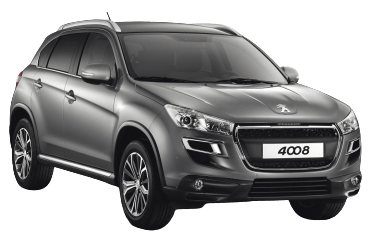

In March 2012 at the Geneva Motor Show, Peugeot presented its new compact crossover based on the Mitsubishi ASX: the model 4008. In this article, we will take a detailed look at the fuse box diagrams for the Peugeot 4008 (1st generation; chassis code J3; Mitsubishi GS platform; 4B-series engines) for model years 2012, 2013, 2014, 2015, 2016, and 2017.
Below are the locations and photographs of the power distribution boxes. The fuse for the “cigarette lighter” circuit is highlighted in bold.
Passenger Compartment Fuse Box
The fuse box is located on the driver's side, behind the lower dashboard access panel.
Overview of the Peugeot 4008 passenger compartment fuse box layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Blower motor | 30 |
| 2 | Brake lights, center high-mount stop lamp (CHMSL) | 15 |
| 3 | Rear fog lights | 10 |
| 4 | Windshield wiper and washer motor | 30 |
| 6 | Central locking, power side mirrors | 20 |
| 7 | Audio system, telematics, USB port, hands-free module | 15 |
| 8 | Remote keyless entry receiver, A/C control module, instrument cluster, power windows, rain and light sensors, anti-theft alarm system, status indicator panel, paddle shifters | 7.5 |
| 9 | Interior lighting, instrument cluster illumination | 15 |
| 10 | Hazard warning lights | 15 |
| 11 | Rear window wiper | 15 |
| 12 | Instrument cluster, multi-function display, park assist, heated seats, heated rear window, power sunroof, automatic headlight leveling system | 7.5 |
| 13 | Peugeot 4008 cigarette lighter fuse, auxiliary power outlets | 15 |
| 15 | Power sunroof | 20 |
| 16 | Power side mirrors, audio system | 10 |
| 18 | Reverse lights | 7.5 |
| 19 | Auxiliary 12V power socket, secondary cigarette lighter fuse | 15 |
| 20 | Power window master switch | 30 |
| 21 | Heated rear window (rear defogger) | 30 |
| 22 | Heated side mirrors | 7.5 |
| 24 | Power seat adjustment motors (driver and passenger) | 25 |
| 25 | Heated seats | 30 |
Engine Compartment Fuse Box
Located adjacent to the battery.
Overview of the engine compartment fuse block layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | A |
| 1 | Front fog lights | 15 |
| 4 | Horn | 10 |
| 5 | Alternator | 7.5 |
| 6 | Headlight washers | 20 |
| 7 | Air conditioning compressor clutch | 10 |
| 9 | Anti-theft alarm system | 20 |
| 10 | Heated windshield / glass | 15 |
| 11 | Not used | |
| 12 | ||
| 13 | Daytime running lights (DRL) | 10 |
| 14 | Left high-beam headlight | 10 |
| 15 | Right high-beam headlight | 10 |
| 16 | Left low-beam headlight (HID/Xenon) | 20 |
| 17 | Right low-beam headlight (HID/Xenon) | 20 |
| 18 | Left low-beam headlight (halogen), headlight range adjustment | 10 |
| 19 | Right low-beam headlight (halogen) | 10 |
| 31 | Audio system amplifier | 30 |
Additionally, a high-current fusible link block is mounted directly on the positive battery terminal.
