Fuses Peugeot 407, 2004 - 2008

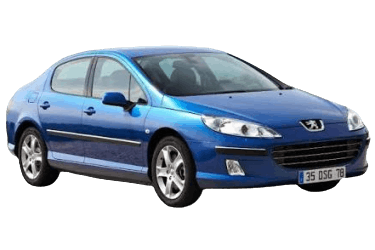

Peugeot 407, which replaced the 406th car, is the first model of the PSA concern, built on the common modular platform PF3, developed for cars of D and E classes. Compared to its predecessor, the 407 has increased in size, it has a larger wheelbase (although only by 25 mm). Exterior features include an elongated body silhouette, a long hood; The smooth transition of the roof from the windscreen to the rear adds agility and improves aerodynamics.


In our material, we will analyze in detail the fuse circuits of the 1st generation Peugeot 407 (bodies 6D, 6E, 6C) 2004, 2005, 2006, 2007, 2008 model year. Here are the locations and photos of the blocks. Separately, we note the fuse responsible for the cigarette lighter.

In the passenger compartment


Fuse box located on the driver's side, at the bottom of the dashboard behind a plastic cover. For right-hand drive models - behind the glove compartment.


General form.

Assigment of fuses in the passenger compartment
No. Description A
1 Diagnostic connector, anti-theft system low current circuit. 15
4 Luggage compartment switching unit, trailer switching unit, steering column switch unit, car radio, burglar alarm, navigator control panel - telematics, multifunction display, automatic transmission. 20
5 Alarm siren, tire pressure monitoring unit. 15
6
  • Automatic transmission electronic control system,
  • clutch pedal contactor,
  • light-sensitive rear-view mirror,
  • cosmetic mirror illumination,
  • individual lighting shades,
  • diagnostic connector,
  • flywheel position sensor,
  • ESP sensor,
  • sunroof blind (407 SW),
  • front and rear general lighting lamps.
10
7 Security alarm (additional equipment). 15
9 Rear dual-mode electric window. 30
10
  • Front electrical 12 V socket,
  • Peugeot 407 cigarette lighter fuse,
  • glove box contactor,
  • telematics system (depending on the country of delivery of the vehicle).
20
11
  • Electric door interlocking circuit,
  • locking of the rear door locks.
15
12
  • Front dual-mode power window,
  • ventilation hatch in the roof.
30
14
  • Engine and luggage compartment switch box,
  • trailer switching unit (additional equipment),
  • wiper relay.
10
15
  • Dashboard,
  • air conditioner control panel,
  • rain and light sensors,
  • electric seats,
  • airbag system computer.
15
16 Central locking / locking of locks. 30
20 No 10
21 15
22 20
23 PARC shunt.

In the trunk


Fuse box located on the right side. To access, you need to unscrew the two fixing screws.


Photo is an example of execution.

Trunk block diagram
No. Decoding A
1 Rear window cleaner. 15
2 Fuel filler flap lock. 15
3 Rear 12V electrical outlet. 15
4 Particulate filter. 15
5 Heated rear window. 40

In the engine compartment


Located next to the battery.


General form.

Engine compartment block diagram
No. Appointment A
1 The engine control unit 20
2 Horn 15
3 Windshield and rear window washer 10
4 Headlight washer. 20
5 Peugeot 407 fuel pump fuse 15
6 ECU automatic transmission 10
7 Power steering ECU. 10
8 Starter winding circuit 20
9 Xenon lamp supply circuit, brake light contactor, halogen optics tilt adjusters 10
10 Engine control unit sensors (ignition coil, solenoid valves, oxygen sensors) 30
11 Air conditioning fan (or not in use) 40
12 Windshield wiper 30
13 Power supply of the intelligent switching unit (+ from the ignition switch) 40
14 Charge pressure control solenoid valve 30
