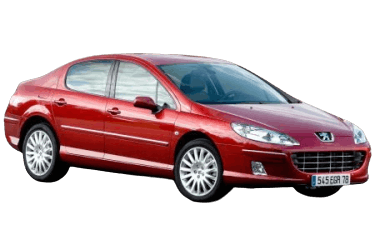

Fuses Peugeot 407, 2008 - 2011

In 2008, the Peugeot 407 was restyled. In the appearance of the sedan, he limited himself to purely cosmetic changes: for example, the radiator grille is decorated with chrome stripes, new lights with LEDs appeared at the rear, the shape of the bumper was changed, and the linings on the bumpers and on the sides are now painted in body color. The interior of the restyled version of the Peugeot 407 also includes a number of minor changes, in particular, the center console has been updated and the finish has been improved.


In our material, we will analyze in detail the fuse circuits for the Peugeot 407 1st generation restyling (bodies 6D, 6E, 6C) 2008, 2009, 2010, 2011 release. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.

In the passenger compartment


Located on the driver's side behind the glove compartment.


General view of the fuse box.

Diagram
No. Description A
1 Rear window wiper 15
2 Central locking / locking 30
3 Airbags 5
4 ESP sensor, diagnostic socket, sunroof (sedans), flywheel position sensor 10
5
  • Front power window on / off switch
  • roof hatch (sedans)
  • panoramic sunroof (407 SW).
30
6 Rear power window on / off switch 30
7
  • Glove box lighting,
  • side repeaters of direction indicators,
  • front and rear lamps for general interior lighting
  • individual lighting shades, cosmetic mirror.
5
8 Multifunctional display, car radio, steering column switches, trailer switching unit, ECU of the security alarm system, navigation and telematics systems (depending on the country of delivery of the vehicle). 20
9 Peugeot 407 cigarette lighter fuse , telematics system (depending on the country of delivery of the car), rear 12 V socket (no more than 100 W). 30
10 ECU for the on-board tire pressure drop monitoring system. 15
11 Diagnostic connector, ignition lock with steering lock. 15
12 Hands-free wireless communication system, trailer harness connector, trailer switch box, reverse parking system buzzers, electric passenger seat, rain and light sensor, burglar alarm. 30
13 Engine ECU, Windshield Wiper Relay Switch. 5
14 Electric control unit for driver's seat adjustment, instrument panel, A / C control panel, airbag ECU. 15
15 The electric drive of the system of blocking of locks "from children", complete blocking of the locks of the rear doors. 15
17 Heated rear window. 40
FS1 PARC shunt.

In the engine compartment


Located near the battery. In order to remove the protective cover, you need to unscrew the three fixing screws.


Access example.

Assignment of fuses in the Peugeot 407 engine compartment
No. Appointment A
1 Engine ECU 20
2 Sound signal 15
3 Windscreen and rear window washers 10
4 Headlight washers 20
5 Engine ECU system components (fuel pump, canister purge valve, ...). 15
6 ECU for automatic transmission 10
7
  • Protection system switching unit,
  • air flow sensor,
  • clutch contactor,
  • 6-speed automatic transmission contactor,
  • STOP contactors,
  • in-car light-sensitive rear-view mirror,
  • panoramic roof blind drives (407 SW)
10
8 Starter winding circuit 20
9
  • Xenon lamp supply circuit,
  • contactor STOP signal,
  • electric power steering pump,
  • electronic control unit for a four-speed automatic transmission,
  • automatic transmission blocking relay
10
10 Engine ECU System Components (Ignition Coil, Electric Valves, Oxygen Sensors) 30
11 Air conditioning fan (or not in use) 40
12 Windshield wiper 30
13 Switching unit power supply (+ from ignition lock) 40
14 Charge pressure control solenoid valve 30
