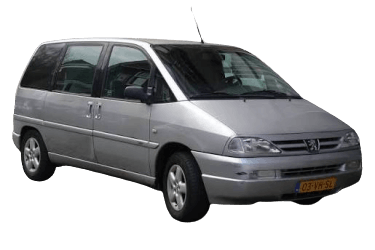

The premiere of the Peugeot 806 station wagon in the framework of a joint project of FIAT and PSA concern took place in 1994. In this article, we will take a detailed look at the fuse box diagrams for the Peugeot 806 (1st generation; body 221) 1994, 1995, 1996, 1997, 1998 and 1999, 2000, 2001, 2002 years of manufacture.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the passenger compartment
Located at the bottom of the dashboard, behind the protective cover.
| Photo-diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Car radio (power) | 10 |
| 2 | + after ignition switch, Speed sensor, Central interior protection unit, Dashboard alarms | 5 |
| 3 | Brake light, Cruise control | 15 |
| 4 | Right tail light, Left front position light, Headlight adjustment | 10 |
| 5 | Air conditioning, Front window elevators, Climate control fan, Pressure sensor | 15 |
| 6 | Heated rear window and heated seats | 15 |
| 7 | Horn (beep) | 20 |
| 8 | SHUNT | |
| 9 | Headlight washers, Right front position lamp, License plate illumination, Left rear lamp | 5 |
| 10 | Front passenger seat adjustment | 30 |
| 11 | Rear window lifters | 30 |
| 12 | ABS computer, Reversing lights, Diagnostic connector, Automatic transmission | 10 |
| 13 | Driver seat adjustment | 30 |
| 14 | Central interior protection unit (memory) | 5 |
| 15 | Central interior protection unit, Central electric locking system, Lights | 30 |
| 16 | Peugeot 806 cigarette lighter fuse, Constant (+) from the battery pack | 20 |
| 16A | Cigarette lighter, + drive auxiliary power consumers | 20 |
| 17 | Coolant Temperature Control Unit, Engine Cooling Fan Group | 15 |
| 18 | Fog lamp | 10 |
| 19 | Dashboard illumination, Car radio, Parking lamps | 10 |
| 20 | Air conditioner, Air conditioner fan | 30 |
| 21 | Heated seats | 20 |
| 22 | + Power supply for additional power consumers, Not used | 20 |
| 23 | SHUNT # 14 - # 15 - # 25 - # 27 | |
| 24 | Windscreen washer, Front wiper | 30 |
| 25 | Air conditioner, Plafond, Car radio memory, Digital clock | 10 |
| 26 | Emergency warning lights | 15 |
| 27 | Electrically heated rear window | 30 |
| 28 | Power windows, Battery discharge indicator | 15 |
| 29 | Power windows | 30 |
| 30 | Interior lighting, Turn signal lamps, Clock, Electrically adjustable outside mirrors | 15 |
In the engine compartment
Located next to the battery.
General view of the Peugeot 806 underhood fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Trailer | 20 |
| 2 | Peugeot 806 fuel pump fuse | 20 |
| 3 | Left dipped beam headlamp | 10 |
| 4 | Right dipped beam headlamp | 10 |
| 5 | Diagnostic connector | 10 |
| 6 | Engine immobilizer | 10 |
| 7 | Left high beam headlamp | 10 |
| 8 | High beam headlight, right | 10 |
| 9 | Engine cooling fan group 1-120 W. | 25 |
| 10 | Headlight washer pump, fog lights | 30 |
| 11 | Additional heating system | 20 |
| 12 | Headlight washer timer | 5 |
| 13 | Oxygen sensor of catalytic converter, lambda probe warming up | 15 |
| 14 | ||
| 15 | Air conditioner, passenger compartment fan | 40 |
| 16 | Engine cooling fan group 1-180 W. | 30/50 |
| "Maxi" side plate | ||
| MF1 | Injection system | 20 |
| MF2 | 30 | |
| MF3 | Interior fan | 30 |
| MF4 | ABS computer | 40 |
| Purpose of relay modules | ||
|
||
| R1030 | Information about the running engine | |
| R1502 R1503 R1504 |
Fan relays | |
| R5400 | Headlight washer relay | |
| R8016 | Injection | |
| R2665 | Fog lights | |
