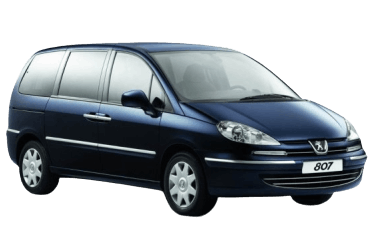

The Peugeot 807 is a minivan produced from 2002 to 2014, belonging to the joint-venture "Eurovans" family (which also includes Citroën, Fiat, and Lancia models). In accordance with Peugeot's traditional "x0x" naming system, the first digit denotes the vehicle class/size, and the last digit represents the model generation. In this article, we provide a detailed overview of the fuse box diagrams for the Peugeot 807 (1st generation; chassis code E; Sevel Nord platform), covering model years 2002, 2003, 2004, 2005, 2006, 2007, 2008, and the restyled models from 2009 through 2014.
Below you will find fuse box locations, photos, and assignments. Fuses designated for the “Cigarette lighter” and “Fuel pump” are highlighted in bold text.
In the engine compartment
Located on the left side of the engine bay, near the coolant expansion tank.
Representative overview of the unit.
| Diagram | ||
|---|---|---|
|
||
| No. | Description (models from 2007 onward) | A |
| 1 | Engine ECU, fuel and air supply systems, radiator cooling fan relay | 20 |
| 2 | Horn | 15 |
| 3 | Windshield and rear window washer pump | 10 |
| 4 | Headlight washer pump | 20 |
| 5 | Fuel supply system components | 15 |
| 6 | Power steering unit, secondary brake light switch, automatic transmission ECU, mass air flow sensor, dynamic leveling xenon headlights | 10 |
| 7 | Brake system (ABS / ESP ECU) | 10 |
| 8 | Starter switch switch control circuit | 20 |
| 9 | Primary brake light switch | 10 |
| 10 | Engine fuel/air management system, emissions control systems | 30 |
| 11 | Front passenger compartment climate control blower motor | 40 |
| 12 | Windshield wipers | 30 |
| 13 | Built-in Systems Interface (BSI) switch control | 40 |
| 14 | Not used | 30 |
| 15 | Child lock / central locking / deadlocking switch | 30 |
| No. | Description (models up to 2007) | A |
| 1 | Manual transmission reverse light switch, xenon headlamps, radiator fan relay group, coolant level sensor, oil heater or glow plug control module (Diesel), speed sensor or mass air flow sensor (Diesel) | 10 |
| 2 | Electric fuel pump (Peugeot 807 fuel pump fuse), EGR solenoids, and turbocharger boost control solenoid (Diesel) | 15 |
| 3 | ABS or ESP electronic control module | 10 |
| 4 | Ignition supply circuit to the engine control unit / BSI switch module | 10 |
| 5 | Unassigned, or DPF additive dosing unit and DPF electronic control module (Diesel) | 10 |
| 6 | Front fog lamps | 15 |
| 7 | Headlight washer pump motor | 20 |
| 8 | Injection ECU power supply via the BSI module, cooling fan relays (Diesel), fuel pressure control solenoid, and EGR solenoids (Diesel) | 20 |
| 9 | Left low beam headlamp, headlight beam levelling motor | 15 |
| 10 | Right low beam headlamp | 15 |
| 11 | Left high beam headlamp | 10 |
| 12 | Right high beam headlamp | 10 |
| 13 | Horn | 15 |
| 14 | Windshield and rear window washer pump motors | 10 |
| 15 | Oxygen sensor (Lambda), injector supply circuit, EVAP canister purge solenoid, variable valve timing / EGR solenoid (Gasoline), fuel injectors (Diesel) | 30 |
| 16 | Unassigned or Boost pressure solenoid valve (Gasoline) |
30 |
| 17 | Windshield wiper relay | 30 |
| 18 | Auxiliary climate control / blower motors | 40 |
Maxi-type high-current fuses are located along the side of the fuse box panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| Type 1 (models from 2007 onward) | ||
| 1 | Air conditioning system switch control | 50 |
| 2 | Brake system ECU (ABS / ESP pump module) | 40 |
| 3 | 30 | |
| 4 | Built-in Systems Interface (BSI / Power interface) | 60 |
| 5 | 70 | |
| 6 | Auxiliary cabin heater (Diesel) | 20 |
| 7 | Not used | |
| 8 | Not used | |
| Type 2 (models up to 2007) | ||
| 1 | Radiator cooling fan (high speed) | 50 |
| 2 | ABS or ESP module | 50 |
| 3 | Not used, ESP solenoid valves, or auxiliary cabin heater (Diesel) |
30 |
| 4 | Built-in Systems Interface (BSI) circuit 1 | 60 |
| 5 | Built-in Systems Interface (BSI) circuit 2 | 70 |
| 6 | Radiator cooling fan (low speed) | 30 |
| 7 | Engine immobilizer system | 40 |
| 8 | Air conditioning compressor / blower supply | 50 |
In the passenger compartment
The interior contains two fuse panels responsible for circuit protection.
Fuse box panel
Located inside/behind the glove box compartment.
General layout view of the cabin fuse box on the Peugeot 807.
| Diagram | ||
|---|---|---|
|
||
| No. | Description (models from 2007 onward) | A |
| 1 | Rear window wiper motor | 15 |
| 2 | Not used | |
| 3 | Airbag electronic control unit (ECU) | 5 |
| 4 | Climate control sensors, steering angle sensor, clutch pedal switch, OBDII diagnostic connector, automatic headlamp levelling sensor, ESP sensor, DPF additive pump, electrochromic interior rearview mirror | 10 |
| 5 | Power-adjustable exterior mirrors, front passenger power window, front sunroof control | 30 |
| 6 | Front power window supply | 30 |
| 7 | Interior ceiling lights, glove box illumination light, vanity mirror lights, 2nd-row video screen power | 5 |
| 8 | Multifunction display, car phone/telematic unit, anti-theft alarm siren, DPF additive system ECU, audio unit, tire pressure monitoring system (TPMS), CD changer, sliding door control ECU | 20 |
| 9 | Peugeot 807 cigarette lighter fuse | 30 |
| 10 | Steering column stalk control module (COM2000), trailer interface unit | 15 |
| 11 | OBDII diagnostic connector, ignition switch logic, 4-speed automatic transmission ECU | 15 |
| 12 | Driver's seat memory module, power seat adjustment controls, driver seat ECU, airbag ECU, parking assistance (Parktronic) ECU, power sliding door switches, hands-free kit, 6-speed automatic transmission ECU | 15 |
| 13 | Engine ECU, trailer switching relay unit | 5 |
| 14 | Rain/light sensor, automatic climate control system, instrument cluster display, power sunroof vent panels, instrument panel odometer ECU, telematics/infotainment module | 15 |
| 15 | Passenger door lock actuator | 30 |
| 16 | Central locking / deadlocking actuators | 30 |
| 17 | Heated rear window (demister) | 40 |
| No. | Description (models up to 2007) | A |
| 1 | Rear fog lamp | 10 |
| 2 | Rear wiper motor | 15 |
| 3 | - | |
| 4 | BSI-switched ignition power supply for vehicle accessories | 15 |
| 5 | Left brake light | 10 |
| 6 | Not used | |
| 7 | Interior dome lighting, cigarette lighter socket, lower glove box lamp, electrochromic interior mirror | 20 |
| 8 | Not used | |
| 9 | Front power window switches, front power sunroof panel | 30 |
| 10 | OBDII diagnostic connector, trailer electrical connector socket | 20 |
| 11 | Security alarm module, telematics, car stereo head unit, multifunction displays, steering wheel controls, DPF additive controller | 15 |
| 12 | Right side marker/parking lights, license plate illumination, climate control panel backlighting, interior ceiling lights | 10 |
| 13 | Not used | |
| 14 | Central locking and deadlocking motor actuators | 30 |
| 15 | Rear power window motors | 30 |
| 16 | BSI-switched power supply to the SRS airbag system | 5 |
| 17 | Right brake light, high-mounted third brake light, trailer brake light feed | 15 |
| 18 | OBDII diagnostic connector, brake and clutch pedal switches | 10 |
| 19 | PARC transit / shunt fuse | 40 |
| 20 | BSI-switched power supply to the audio head unit | 10 |
| 21 | Not used | |
| 22 | Left side marker/parking lights, trailer side marker lighting | 10 |
| 23 | Alarm system siren, automatic transmission control unit (TCU) | 15 |
| 24 | BSI-switched power supply to the parking sensors (Parktronic) system | 15 |
| 25 | ||
| 26 | Heated rear window (demister) element | 40 |
Power fuse panel (Battery supply unit)
Mounted directly on the battery terminal box, located in the floor footwell recess beneath the front passenger seat.
Accessing the power fuse panel mounted on the battery terminal.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Function | A |
| 1 | Right electric power sliding door motor | 40 |
| 2 | Left electric power sliding door motor | 40 |
| 3 | Hi-Fi audio amplifier system | 30 |
| 4 | Unassigned or Auxiliary cabin heater power supply (Diesel) |
30 |
| 29 | Not used | |
| 30 | ||
| 31 | ||
| 32 | Driver's power seat position adjustments | 25 |
| 33 | Front passenger's power seat position adjustments | 25 |
| 34 | 3rd-row electric quarter vent window motor | 20 |
| 35 | 2nd-row electric quarter vent window motor | 20 |
| 36 | Heated front passenger seat | 10 |
| 37 | Heated driver seat | 10 |
| 38 | Child safety lock isolation switches | 15 |
| 39 | 12V auxiliary power socket (3rd row) | 20 |
| 40 | 12V auxiliary power socket (2nd row) | 20 |
