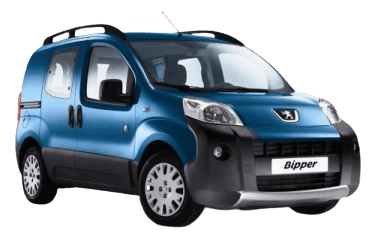

The Bipper is a compact MPV produced by French automaker Peugeot since 2008. Built on a shared platform, it is the sister model to the Citroën Nemo. This article provides detailed fuse box diagrams and panel layouts for the first-generation Peugeot Bipper (covering engine codes F13DTE5, TU3A, and DV4TD; chassis code 225; Fiat Small platform;) for model years 2008 through 2016.
Below you will find power distribution box locations, layout diagrams, and photos. Fuses for critical components such as the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Engine Compartment Fuse Box
To access the fuse box, disconnect the harness connector from the front left headlight assembly and unclip the protective cover.
Sample photograph of the engine compartment fuse block assembly.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Body Control Unit (BCU) / Main ECU | 60 |
| 2 | Blower motor / Climate control fan | 40 |
| 3 | Starter motor supply circuit | 20 |
| 4 | ABS hydraulic pump supply circuit | 40 |
| 6 | Radiator cooling fan low-speed relay switch | 30 |
| 7 | Radiator cooling fan high-speed relay switch | 40 |
| 8 | Air conditioning compressor clutch | 30 |
| 9 | Towbar / Trailer wiring harness supply | 15 |
| 10 | Horn | 10 |
| 11 | Engine management auxiliary load power supply | 10 |
| 14 | Main beam / High beam headlights | 15 |
| 15 | Auxiliary 12V power socket | 15 |
| 16 | Engine ECU, automated manual transmission ECU and selector controls, T20 relay coil | 7.5 |
| 17 | Ignition coils, fuel injectors, main engine control unit power supply (1.3 HDi) | 15 |
| 18 | Engine control module supply (1.3 HDi), T09 relay coil (1.3 HDi) | 7.5 |
| 19 | Air conditioning compressor clutch control | 7.5 |
| 20 | Heated rear window, heated exterior mirrors | 30 |
| 21 | Fuel pump fuse (1.4 petrol and 1.3 HDi engines) | 15 |
| 22 | Engine ECU (1.3 HDi) | 20 |
| 23 | ABS hydraulic unit solenoid valves switch supply | 20 |
| 24 | ABS / ESP system control unit | 7.5 |
| 30 | Front fog lights | 15 |
| 81 | Glow plug control module / Pre-heating ECU (1.3 HDi) | 60 |
| 82 | Automated manual transmission electro-hydraulic pump supply | 30 |
| 84 | Automated manual transmission ECU and solenoid valves | 10 |
| 85 | Peugeot Bipper cigarette lighter fuse, 12V auxiliary power socket | 30 |
| 87 | - Reversing lights, diesel fuel water sensor, mass air flow (MAF) sensor, relay coils T02, T05, T14, T17, and T19 (except 1.3 HDi) | 7.5 |
| - Reversing lights, diesel fuel water sensor, mass air flow (MAF) sensor, relay coils T02, T05, T14, T17, and T19, intelligent battery sensor (1.3 HDi) | 5 | |
Passenger Compartment Fuse Box
Located on the lower dashboard panel on the driver side. To access, remove the two retaining screws, detach the lower dashboard trim, and pull the fuse box downward.
Note: On right-hand drive (RHD) models, the layout of the panel is horizontally mirrored.
Overview of the Peugeot Bipper passenger compartment fuse panel assembly.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Designation | Rating (A) |
| 12 | Right dipped beam / Low beam headlight | 7.5 |
| 13 | Left dipped beam / Low beam headlight, headlamp leveling actuator | 7.5 |
| 31 | Engine ECU power switch relay | 5 |
| 32 | Lighting switch supply (sidelights, headlights, tail lights) | 7.5 |
| 36 | Audio unit, hands-free module, HVAC control panel, EOBD diagnostic connector (OBD-II) | 10 |
| 37 | Brake light switch, instrument cluster switch supply | 5 |
| 38 | Central locking system | 20 |
| 43 | Windscreen washer pump motor | 15 |
| 47 | Driver side electric power window | 20 |
| 48 | Passenger side electric power window | 20 |
| 49 | Parking assist ECU (Parktronic), reversing light switch, power mirror adjustment, volumetric intrusion sensor | 5 |
| 50 | Airbag / Supplemental Restraint System (SRS) ECU | 7.5 |
| 51 | Brake pedal switch, clutch pedal switch, power mirror switch panel, Bluetooth module | 7.5 |
| 53 | Instrument cluster, rear fog lights | 5 |
| 41 | Heated door mirrors | 7.5 |
| 94 | Peugeot Bipper cigarette lighter fuse | 15 |
| 96 | 12V power accessory socket | 15 |
| 97 | Driver seat heater element | 10 |
| 98 | Passenger seat heater element | 10 |
