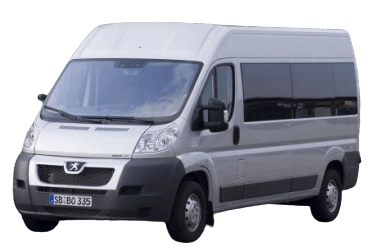

Peugeot Boxer is a commercial van developed by the Fiat Centro Stile design bureau. Produced by the joint venture JV Sevel SpA, created in 1978 by the Italian Fiat Group and the French PSA Peugeot Citroën. The van acquired its modern design in 2006. It is produced under four brands: Peugeot Boxer, Citroen Jumper, RAM Promaster (in the USA) and the third generation Fiat Ducato III.
In our material, we will analyze in detail the fuse circuits for the Peugeot Boxer 2nd generation 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014, 2015, 2016, 2017, 2018, 2019 release. Here are the locations and photos of the mounting blocks. Separately, we note the fuse responsible for the cigarette lighter.
In the passenger compartment
There are two blocks here: one next to the passenger seat, the second on the driver's side at the bottom of the dashboard.
Fuse box #1
The location of the fuse box next to the seat.
| Diagram | ||
|---|---|---|
| No. | Description | A |
| Type 1 | ||
|
||
| F54 | Absent | - |
| F55 | Heated seats | 15 |
| F56 | Electrical outlet near rear passenger seats | 15 |
| F57 | Additional heater under the seat | 10 |
| F58 | Side marker lights, direction indicators | 10 |
| F59 | Self-leveling suspension (+ battery) | 7.5 |
| F60 | No | - |
| F61 | No | - |
| F62 | No | - |
| F63 | Passenger auxiliary heater drive (boxer) | 10 |
| F64 | Absent | - |
| F65 | Passenger auxiliary heater fan | 30 |
| T30 | size relay | |
| T31 | auxiliary heater relay | |
| T66 | cigarette lighter relay | |
| Type 2 | ||
|
||
| 54 | Air conditioner / heater | 10 |
| 55 | Seat heater | 15 |
| 56 | 15 | |
| 57 | Air conditioner / heater | 10 |
| 58 | dipped headlights | 10 |
| 59 | Active suspension system | 7.5 |
| 60 | Air conditioner / heater | 10 |
| 61 | 30 | |
| T25 | Internal lighting | |
| T66 | Cigarette lighter relay | |
| T30 | Relay marker lamps | |
| T31 | Additional heater under the seat | |
Fuse box #2
Another passenger compartment fuse box is located on the driver's side, at the bottom of the dashboard.
Access example. Unscrew screws A.
| Decoding the fuse block under the dashboard Peugeot Boxer | ||
|---|---|---|
| Type 1 | ||
General form. |
||
Diagram. |
||
| No. | Description | A |
| F12 | RH low beam headlamp | 7.5 |
| F13 | Left low beam headlamp, headlight range control | 7.5 |
| F31 | Engine Compartment Control Unit Relay, Dashboard Control Unit Relay (+ Key) | 7.5 |
| F32 | Minibus interior lamps (emergency lighting) | 10 |
| F33 | Rear electrical outlet | 15 |
| F34 | Absent | - |
| F35 | Reversing lights, servotronic control unit, diesel filter water presence sensor, (+ key) | 7.5 |
| F36 | Centralized door lock control unit (+ battery) | 15 |
| F37 | Brake light switch (main), third brake light, instrument panel (+ key) | 7.5 |
| F38 | Instrument panel control unit relay (+ battery) | 10 |
| F39 | EOBD diagnostic system connector, radio, air conditioner, alarm, chronotachograph, Webasto preheater timer (+ battery) | 10 |
| F40 | Heated left rear window, driver's side mirror heater | 15 |
| F41 | Heated rear window right, passenger side mirror heater | 15 |
| F42 | ABS system, brake lights (secondary) (+ key) | 7.5 |
| F43 | Windshield wiper (+ key) | 30 |
| F44 | Peugeot boxer cigarette lighter fuse , front electrical outlet | 20 |
| F45 | Driver's door controls, passenger's door controls | 7.5 |
| F46 | Absent | - |
| F47 | Driver's door window regulator | 20 |
| F48 | Passenger door window lifter | 20 |
| F49 | Radio, driver's door power window, dashboard devices, rain sensor (+ key) | 7.5 |
| F50 | Airbag (+ key) | 7.5 |
| F51 | Air conditioning, cruise control, chronotachograph (+ key) | 7.5 |
| F52 | Auxiliary Control Unit Relay | 7.5 |
| F53 | Instrument panel, rear fog lights (+ battery) | 7.5 |
| 1 | Headlamp low beam relay | |
| 2 | Heated rear window relay | |
| Type 2 | ||
Photo is an example. |
||
Diagram. |
||
| No. | Appointment | A |
| F12 | Low beam headlamp, right | 7.5 |
| F13 | Low beam headlamp, left | 7.5 |
| F31 | Engine Compartment Processor Relay - Instrument Panel Processor Relay (+ Key) | 5 |
| F32 | Interior lighting (+ battery) | 7.5 |
| F33 | Battery monitoring sensor on the "stop-start" version (+ battery) | 7.5 |
| F34 | Minibus Interior Lighting - Hazard Lights | 7.5 |
| F36 | Car radio - Air conditioning control - Burglar alarm - Chronotachograph - Battery switch processor - Additional heating programmer (+ battery) | 10 |
| F37 | Brake light switch - Third brake light - Instrument panel (+ key) | 7.5 |
| F38 | central locking | 20 |
| F42 | Microprocessor and ABS sensor - ASR sensor - CDS sensor - Brake light switch | 5 |
| F43 | Windshield wiper (+ key) | 20 |
| F47 | Driver's side window lifter | 20 |
| F48 | Passenger side window lifter | 20 |
| F49 | Parking aid processor - Car radio - Steering wheel switches - Center and side control panels - Additional control panel - Battery breaker processor (+ key) | 5 |
| F50 | Airbag and belt pretensioner processor | 7.5 |
| F51 | Chronotachograph - Power steering processor - Air conditioning - Reversing lights - Water filter in diesel fuel filter - Flow sensor (+ key) | 5 |
| F53 | Instrument cluster | 7.5 |
| F89 | No | - |
| F90 | High beam headlamp, left | 7.5 |
| F91 | High beam headlamp, right | 7.5 |
| F92 | Fog lamp left | 7.5 |
| F93 | Fog lamp right | 7.5 |
In the engine compartment
Located on the left side of the engine compartment.
Photo is an example of execution.
| Assigment of fuses in the engine compartment | ||
|---|---|---|
|
||
| No. | Decoding | A |
| F1 | ABS system | 40 |
| F2 | Engine management / Spark plugs (+ battery) | 50 |
| F3 | Ignition switch / Ignition switch (+ battery) | 30 |
| F4 | Air conditioning / heater or Webasto pre-heater control unit (+ battery) or Headlight washer pump | 20 |
| F5 | Air conditioning / heater or Cabin ventilation system with Webasto heater / diesel filter heater (+ battery) | 20 |
| F6 | High speed engine cooling fan (+ battery) | 40/60 |
| F7 | Low speed engine cooling fan (+ battery) | 40/50 |
| F8 | Air conditioning / heater or Interior fan (+ key) | 40 |
| F9 | Headlamp washers or Rear 12V socket or Windshield washer pump | 20 |
| F10 | Sound signal | 15 |
| F11 | Engine management | 15 |
| F14 | Main beam lamp (right) or 12V socket front, cigarette lighter | 7.5 |
| F15 | High beam lamp (left) or Cigarette lighter | 7.5 |
| F16 | Engine management | 7.5 |
| F17 | Engine management | 10 |
| F18 | Engine management | 7.5 |
| F19 | Air Conditioner / Heater / Air Conditioning Compressor | 7.5 |
| F20 | Headlight washers | 30 |
| F21 | Engine management or Gasoline pump | 15 |
| F22 | Engine management | 20 |
| F23 | ABS system | 30 |
| F24 | Automatic transmission | 15 |
| F30 | Fog lights or heated glass | 15 |
| 1 | Headlamp high beam relay | |
| 2 | Horn relay | |
| 3 | A / C compressor electromagnetic clutch relay | |
| 4 | - | |
| 5 | - | |
| 6 | Heater blower motor relay | |
| 7 | Engine control relay | |
| 8 | Fuel pump relay | |
| 9 | Fog lamp relay | |
| 10 | Windshield washer pump relay | |
| 11 | Headlight washer / washer relay | |
| 12 | - | |
