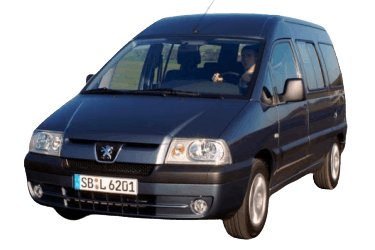

The first generation of the French Peugeot Expert minivan entered series production in 1995 at the Sevel Nord plant in France. Larger than the Fiat Doblò but smaller than the Fiat Ducato, its base passenger variant (Combinato) was frequently used as a taxi. This article provides detailed fuse box diagrams and panel layouts for the first-generation Peugeot Expert (chassis code 220 / U64; Sevel platform), covering model years 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, and 2006.
Below are the locations and photographs of the power distribution centers. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold text.
Engine Compartment Fuse Box
Located adjacent to the battery.
Type 1
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating (A) |
| 1 | Fuel pump fuse | 20 |
| 2 | Right low-beam headlight | 10 |
| 3 | Left low-beam headlight | 10 |
| 4 | Headlight washer pump | 25 |
| 5 | Shunt | |
| 6 | Engine immobilizer | 10 |
| 7 | Oxygen sensor (Lambda probe) | 10 |
| 8 | Towbar / Trailer wiring | 20 |
| 9 | Radiator cooling fan (120 W) | 25 |
| Radiator cooling fan (180 W) | 30 | |
| 10 | Front fog lamps | 15 |
| 11 | Not used | |
| 12 | Left high-beam headlight | 10 |
| 13 | Right high-beam headlight | 10 |
| MF1 | Engine running relay | 70 |
| MF2 | ABS control module, Ignition switch | 70 |
| MF3 | Cabin blower, Air conditioning switch | 30 |
| MF4 | Cooling fan assembly | 30 |
Type 2
General view.
| Diagram | ||
|---|---|---|
| No. | Circuit Description | Rating (A) |
| Models with ABS | ||
|
||
| 1 | Trailer connector socket | 20 |
| 2 | Fuel pump fuse | 20 |
| 3 | Left low-beam headlight | 10 |
| 4 | Right low-beam headlight | 10 |
| 5 | Diagnostic connector (OBD) | 10 |
| 6 | Engine immobilizer system | 10 |
| 7 | Left high-beam headlight | 10 |
| 8 | Right high-beam headlight | 10 |
| 9 | Engine cooling fan (120 W) | 25 |
| 10 | Headlight washer pump, Front fog lamps | 30 |
| 11 | Auxiliary heating system | 20 |
| 12 | Headlight washer timer relay | 5 |
| 13 | Oxygen sensor (Lambda probe) heater element | 15 |
| 14 | Unused | - |
| 15 | Air conditioning system, Blower motor | 40 |
| 16 | Engine cooling fan (180 W) | 30 |
| MF1 | Fuel injection system relay | 20 |
| MF2 | 30 | |
| MF3 | Interior blower motor | 30 |
| MF4 | ABS control module | 40 |
| Models without ABS | ||
|
||
| 1 | Fuel pump fuse | 20 |
| 2 | Right low-beam headlight | 10 |
| 3 | Left low-beam headlight | 10 |
| 4 | Headlight washer pump | 25 |
| 5 | Shunt | |
| 6 | Electronic anti-theft system (Immobilizer) | 10 |
| 7 | Oxygen sensor (Lambda probe) | 10 |
| 8 | Trailer socket circuit | 20 |
| 9 | Engine cooling fan (120 W) | 25 |
| 9 | Engine cooling fan (180 W) | 30 |
| 10 | Spare | 15 |
| 11 | Spare | 5 |
| 12 | Left high-beam headlight | 10 |
| 13 | Right high-beam headlight | 10 |
| Relay Allocation (Universal) | ||
|
||
| R 1030 |
Engine running signal relay | |
| R 1502 1503 1504 |
Cooling fan relays | |
| R 5400 |
Headlight washer relay | |
| R 8016 |
Fuel injection relay | |
| R 2665 |
Front fog lamp relay | |
Passenger Compartment Fuse Box
Left-hand drive (LHD) models: Located beneath the steering column behind the protective trim panel.
Right-hand drive (RHD) models: Located on the passenger side behind the glove compartment access panel.
Type 1
General view of the interior fuse panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating (A) |
| 1 | Empty | |
| 2 | Diagnostic connector (OBD), ABS control module, Tail lamps, Heated exterior mirrors | 10 |
| 3 | Empty | |
| 4 | Instrument cluster, Overspeed warning chime, Vehicle speed sensor (VSS), Diesel fuel filter water sensor | 5 |
| 5 | Cruise control, Brake pedal switch, Clutch pedal switch, Automatic transmission control unit, Stop lamps | 15 |
| 6 | Interior illumination, Instrument cluster backlighting, Audio unit | 5 |
| 7 | Heated rear window (Defroster) | 30 |
| 8 | Body Control Module (BCM) / Central interior protection unit | 30 |
| 9 | 5 | |
| 10 | Empty | |
| 11 | Blower motor relay assembly, A/C compressor clutch relay | 5 |
| 12 | Power windows, Blower motor relay, Heated seat relay, Rear window defroster switch, Air conditioning system | 10 |
| 13 | Hazard warning lights, Turn signal indicators | 15 |
| 14 | Power windows | 30 |
| 15 | Empty | |
| 16 | Heated seats | 20 |
| 17 | Horn | 20 |
| 18 | Rear fog lamp | 10 |
| 19 | Cruise control, Chime illumination, Heated seat switches, Instrument cluster backlighting, Audio unit, Rear window defroster switch, Automatic transmission shift lever, Emergency brake light switch, A/C control panel | 5 |
| 20 | Headlight leveling switch, Front left and right parking lamps | 5 |
| 21 | Rear left and right tail lamps, Headlight washer timer, License plate lamps | 5 |
| 22 | Empty | |
| 23 | Cigarette lighter fuse | 20 |
| 24 | Audio system | 10 |
| 25 | Chime illumination, Automatic transmission selector chime, Power mirrors, Turn signal indicators | 10 |
| 26 | Windshield wiper interval timer, Windshield wipers, Washer fluid pump | 30 |
| 27 | Empty | |
| 28 | Instrument cluster, Power window relay control | 5 |
Type 2
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating (A) |
| 1 | Car radio (Main power supply) | 10 |
| 2 | Switched ignition supply (+15), Vehicle speed sensor (VSS), Central body control module, Instrument cluster warnings | 5 |
| 3 | Stop lamps, Cruise control switch | 15 |
| 4 | Right tail lamp, Left front parking lamp, Headlight leveling system | 10 |
| 5 | Air conditioning system, Power front windows, Climate control blower, A/C pressure sensor switch | 15 |
| 6 | Heated rear window (Defroster) and heated seats | 15 |
| 7 | Horn | 20 |
| 8 | SHUNT | |
| 9 |
|
5 |
| 10 | Front passenger power seat adjustment | 30 |
| 11 | Power rear windows | 30 |
| 12 | ABS control module, Reversing lamps, Diagnostic connector (OBD), Automatic transmission unit | 10 |
| 13 | Driver power seat adjustment | 30 |
| 14 | Central body control module (Memory / Keep-alive power) | 5 |
| 15 | Central locking system, Interior dome lamps | 30 |
| 16 | Cigarette lighter fuse, Constant battery positive (+30), Auxiliary power supply feeds | 20 |
| 17 | Engine coolant temperature control module, Engine cooling fan assembly | 15 |
| 18 | Rear fog lamp | 10 |
| 19 | Instrument cluster backlighting, Radio system, Side marker lamps | 10 |
| 20 | Air conditioning system, Climate control fan | 30 |
| 21 | Heated seats | 20 |
| 22 | Auxiliary equipment power feed or Unused | 20 |
| 23 | SHUNT | - |
| 24 | Windshield washer pump, Front windshield wipers | 30 |
| 25 | Air conditioning, Dome lights, Radio memory feed, Digital clock | 10 |
| 26 | Hazard warning lights | 15 |
| 27 | Heated rear window (Defroster) | 30 |
| 28 | Power windows, Battery discharge indicator lamp | 15 |
| 29 | Power windows | 30 |
| 30 | Interior lighting, Turn signal lamps, Digital clock, Power exterior mirrors | 15 |
