Fuses Peugeot Partner (5F), 1996 - 2008

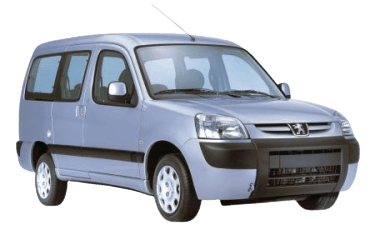

The Peugeot Partner is an MPV (Multi-Purpose Vehicle) offered in both commercial van and passenger wagon variants. Its mechanical twin is the Citroën Berlingo. First-generation models were developed on an extended Peugeot 306 platform and produced from 1996 through 2008. This article provides detailed fuse box diagrams and terminal assignments for the first-generation Peugeot Partner (chassis code 5F; PSA M platform) across all model years (1996–2008).

Below you will find power distribution box locations, photos, and terminal assignments. Fuses protecting the "Cigarette lighter" and "Fuel pump" circuits are highlighted in bold.

Passenger compartment fuse box

Located under the dashboard on the driver's side. Remove the protective access cover to reach the panel.

Peugeot Partner interior fuse box overview.

Fuse Diagram
Fuse	Protected Circuit / Component	Rating (A)
F1	Rear window wiper (barn door models) Rear 12 V power sockets Rear cigarette lighter	15
F4	Multi-function display Instrument cluster Head unit / Radio Steering wheel controls	20
F5	Anti-theft alarm siren	15
F6	Diagnostic connector (OBD-II port)	10
F7	Anti-theft alarm control unit Rain and light sensor	15
F9	Heated seats Modutop / Zenith roof ventilation system	30
F10	Heated rear window and heated exterior mirrors	40
F11	Rear window wiper (tailgate models)	15
F12	Front power windows Sunroof / Ventilation hatch	30
F14	Engine Control Module (ECM) Steering wheel controls Rain sensor	10
F15	Instrument cluster, multi-function display, infotainment system, parking assist module	15
F16	Central locking control module	30
F20	Right brake light	10
F21	Left brake light	15
F22	Front interior lamp Map reading light Front cigarette lighter Front 12 V power socket Power mirrors	20

Engine compartment fuse box

Located in the engine bay under a protective cover, adjacent to the battery.

Engine compartment power distribution box overview.

Fuse Diagram
Fuse	Protected Circuit / Component	Rating (A)
1	Reversing lamps, glow plug control unit, clutch pedal switch	10
2	Electric fuel pump	15
3	ABS Control Module	10
4	Engine Control Module (ECM)	10
5	Spare / Unassigned	10
6	Front fog lamps	15
7	Headlamp washer system	20
8	Engine Control Module (ECM), cooling fan relay	20
9	Left low-beam headlamp	15
10	Right low-beam headlamp	15
11	Left high-beam headlamp	10
12	Right high-beam headlamp	10
13	Horn	15
14	Windshield washer pump	10
15	Engine sensors and actuators	30
16	Secondary air injection pump	30
17	Windshield wiper motor	30
18	HVAC blower motor	40
