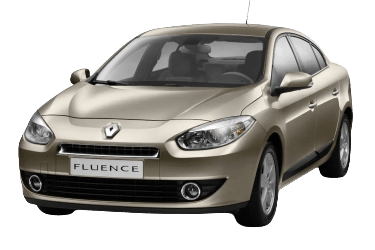

The Renault Fluence compact car was introduced in 2009 and produced for model years 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018. During its production run, the model underwent two facelifts. Below is comprehensive information on Renault Fluence fuses and relays, including fuse box locations, photographs, circuit diagrams, component descriptions, and specific identification of the cigarette lighter fuse.
Note: Variations may exist between this guide and your vehicle's fuse panel layout. The manufacturer may alter fuse assignments depending on the vehicle's electrical equipment level, engine type, and model year.
Engine compartment
Main fuse box
Located next to the strut tower and protected by a cover (switching and protection unit). Access instructions are shown in the illustration below.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| Ef1 | Side/position lights (right headlight, right taillight), license plate lights, cigarette lighter illumination, power window switch backlighting, audio unit, navigation control unit, instrument panel switch illumination | 10 |
| Ef2 | Side/position lights (left headlight, left taillight), left tailgate light | 10 |
| Ef3 | Headlight washer pump | 15 |
| Ef4 | Front fog lights | 20 |
| Ef5 | High beam (left headlight) | 10 |
| Ef6 | High beam (right headlight) | 10 |
| Ef7 | Diagnostic port (OBD2), heated rear window relay, automatic transmission selector, headlight leveling module, gas-discharge (HID) lamp control unit, auxiliary heater control unit, speed limiter, electronic parking brake, park assist module, auto-dimming rearview mirror | 15 |
| Ef8 | ABS / ESP control module | 30 |
| Ef9 | Windshield wipers | 30 |
| Ef10 | Airbag control module (SRS) | 10 |
| Ef11 | Reserve / Spare | 20 |
| Ef12 | Transmission Control Module (TCM) | 7.5 |
| Ef13 | Engine Control Module (ECU) | 25 |
| Ef14 | Heated oxygen sensors (O2 sensors) | 15 |
| Ef15 | Transmission Control Module (TCM) | 20 |
| Ef16 | Brake lights, Body Control Module (BCM), electric power steering (EPS) | 5 |
| Ef17 | Automatic transmission gear position sensor, headlight leveling module, reverse light relay | 10 |
| Ef18 | Body Control Module (BCM) | 15 |
| Ef19 | Starter motor | 30 |
| Ef20 | Reserve / Spare | - |
| Ef21 | Fuel delivery module (fuel pump), ignition coils | 20 |
| Ef22 | A/C compressor electromagnetic clutch | 10 |
| Ef23 | Engine Control Module (ECU) | 5 |
| Ef24 | Low beam (left headlight), headlight leveling motor | 20 |
| Ef25 | Low beam (right headlight), headlight leveling motor | 20 |
Auxiliary fuse box
Located inside the junction box in the engine compartment, beneath the switching and protection unit (UPC).
| Diagram | ||
|---|---|---|
| Diesel | ||
|
||
| No. | Function | Amps |
| F1 | Auxiliary heater module (1550) | 80 |
| F2 | Glow plug control module (257) | 70 |
| F3 | Transmission Control Module (119) | 50 |
| F4 | Auxiliary heater module (1550) | 80 |
| F5 | Cooling fan motor (188) via high-speed fan relay (234) | 60 |
| F6 | Fuel heater (449) | 20 |
| F7 | Unused | |
| F8 | Cooling fan relay control (234) | 30 |
| F9 | Unused | |
| A | Unused | |
| B | Fuel heater relay (450) | |
| C | Reverse light relay (602) | |
| D | Unused | |
| Petrol | ||
|
||
| No. | Function | Amps |
| Cf1 | Radiator cooling fan | 60 |
| Cf2 | Radiator cooling fan relay (coil) | 30 |
| Cr1 | Radiator cooling fan relay | 70 |
Fuses near the battery
- Battery disconnect unit
- High-power fuses
Battery Disconnect Unit
Diagram.
| No. | Description | Amps |
| Kf1 | Starter motor | 190 |
| Kf2 | Cabin fuse and relay box | 50 |
| Kf3 | Engine compartment fuse and relay box 1 (Switching and Protection Unit), cabin fuse and relay box | 80 |
| Kf4 | Engine compartment fuse and relay box 2, alternator | 300 ** |
| 190 * | ||
| Kf5 | Electric power steering (EPS) | 80 |
| Kf6 | Engine Control Module (ECU) * | 35 |
| Engine compartment fuse and relay box 1 (Switching and Protection Unit) ** | ||
| Kf7 | Engine compartment fuse and relay box 1 (Switching and Protection Unit) | 5 |
| * K4M 1.6L engine. ** M4R 2.0L engine. | ||
High-Power Fuse Panel
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Function | Amps |
| BF1 | Auxiliary heater | 70 |
| Bf2 | Cabin fuse box | 80 |
| Bf3 | 80 | |
| Bf4 | Engine compartment fuse and relay box 1 (Switching and Protection Unit), cabin fuse box |
80 |
| Bf5 | Auxiliary heater | 30 |
| Bf6 | ABS / ESP control module | 50 |
Passenger compartment
Fuse box
Located on the driver's side at the lower section of the dashboard, behind a removable plastic panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| F1 | Reserve / Spare | - |
| F2 | Reserve / Spare | - |
| F3 | Cigarette lighter socket | 10 |
| F4 | Rear 12V power outlet | 10 |
| F5 | Luggage compartment 12V power outlet | 10 |
| F6 | Audio system / Radio | 10 |
| F7 | Heated door mirrors | 5 |
| F8 | Windshield washer, door-ajar indicator | 10 |
| F9 | Electronic parking brake | 30 |
| F10 | Instrument cluster | 10 |
| F11 | Power seats, steering column stalk controls | 25 |
| F12 | Heated front seats (up to 07/2012) | 20 |
| Heated passenger seat (from 07/2012) | ||
| F13 | Reserve / Spare | - |
| F14 | Front passenger power window | 25 |
| F15 | Brake light switch / pedal position sensor, ABS / ESP control module | 5 |
| F16 | Rear right power window | 25 |
| F17 | Rear left power window | 25 |
| F18 | Glovebox light, luggage compartment light (left), door courtesy lights, vanity mirror lights, rain sensor | 10 |
| F19 | Clock, ambient temperature sensor, seatbelt warning indicator, audio auxiliary port | 10 |
| F20 | Climate control / HVAC module | 5 |
| F21 | Sun visor vanity mirror lights | 3 |
| F22 | Interior dome lights, rain and automatic light sensor | 3 |
| F23 | Trailer wiring harness / Towbar socket | 20 |
| F24 | Rear window wiper | 15 |
| F25 | Auto-dimming interior rearview mirror | 3 |
| F26 | Navigation system, CD changer, audio head unit | 10 |
| F27 | Audio system, electronic parking brake module | 20 |
| F28 | Reserve / Spare | - |
| F29 | Reserve / Spare | - |
| F30 | Turn signals / Hazard lights | 15 |
| F31 | Instrument cluster | 10 |
| F32 | Driver side power window | 30 |
| F33 | Central locking system | 25 |
| F34 | Reserve / Spare | - |
| F35 | Clock, ambient temperature display, phone display | 15 |
| F36 | Diagnostic port (OBD2), horn relay, security alarm module, siren | 15 |
| F37 | Brake light switch, Body Control Module (BCM) | 10 |
| F38 | Electronic parking brake | 30 |
| F39 | Reserve / Spare | - |
| F40 | HVAC blower motor / A/C fan | 40 |
| F41 | Power sunroof | 25 |
| F42 | Heated rear window (demister) | 40 |
| RA | Auxiliary power relay (+12V Battery) with delayed cut-off (remains active during engine crank) | 70 |
| RB | Auxiliary power relay (+12V Battery) with delayed cut-off (cuts power during engine crank) | 70 |
| RC | Heated rear window relay | 40 |
| RD | Horn relay | 20 |
Relay box
Located under the dashboard on the driver's side, near the steering column.
| Diagram | ||
|---|---|---|
|
||
| No. | Function | Amps |
| F1 | Power window relay feed fuse (703), child lock relay control (750) | 40 |
| F2 | Unused | - |
| F3 | Unused | - |
| F4 | Unused | - |
| A | Power window relay | 40 |
| B | Rear power window child lock relay (750) | 40 |
| C | Ignition (+12V) relays active with engine running (1616) for cabin blower motor | 70 |
The heated front seat relay (rating: 40 A) is located under the front passenger seat.
