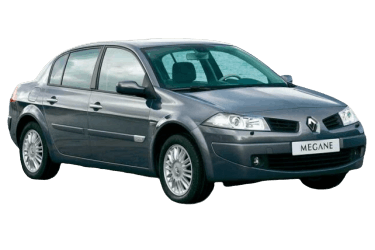

Renault Megane 2nd generation was produced in 2002, 2003, 2004, 2005, 2006, 2007, 2008 and 2009 with hatchback, sedan, station wagon bodies. The sedan was assembled at a plant in Turkey, and the rest of the modifications in France. In some countries, the Megane 2 station wagons were sold under a different name - Megane Grand Tour. We will show where the fuse and relay blocks are located in the 2nd generation Renault Megane and how to get to them. Also, photos of blocks and diagrams with a description of the purpose of the elements, we separately note the cigarette lighter fuse.
The design of the boxs and the number of elements may differ from the one shown and depend on the year of manufacture and the level of equipment. The current diagrams must be marked on the back of the protective cover of the box.
Under the hood
In the enginene compartment of the 2nd generation Renault Megane there are 3 fuse boxes.
Battery fuses
This box is located on the positive terminal of the battery.
Assigment:
- 30A - Electronic control unit in the cabin
- 350 A - for a car with a gasoline engine, a generator, 400 A - for a car with a diesel engine - Engine compartment switching unit
- 30A - Switching unit of the engine compartment
Switching box
Installed on the left side of the engine compartment. Closed with a protective cover.
In one version, by removing the cover, you will get access to the block where it is possible to replace the fuse in another, the block will be placed in another housing and access to it will be difficult.
How to get to the fuse box under the hood
First you need to remove the battery and unscrew the fasteners from its stand to get to the ECU.
Then we unscrew its fastening and move it to the side. We remove the air duct, near the radiator, and lift up the ECU holder.
In the block itself, wean off the bolt. And now we can push the block. Remember to unplug the power chips.
General view (Version 1).
| Assignment of the fuses in the engine switching box (Version 1) | |
|---|---|
|
|
| № | Amps / Description |
| 1 | 7.5А Side light lamp of the left headlamp, cigarette lighter, central locking and alarm switch, headlight range control, heating (air conditioning) and ventilation control unit |
| 2 | 10A High beam lamp, left headlamp |
| 3 | 10A High beam lamp, right headlamp |
| 4 | 10A Low beam lamp for the right headlamp, front and rear body height sensors, headlight range control, right headlight range control motor |
| 5 | 10A Low beam lamp, left headlamp, left headlight corrector motor |
| 6 | 20A Fog lamps |
| 7 | 7.5A Low beam lamp for the right headlamp, right-hand side, indicator of the position of the selector of an automatic transmission, control unit for glass lifters of all doors |
| 8 | 15A Electric locking mechanism of the steering column anti-theft device |
| 9 | 5A Driver's airbag module, electric power steering |
| 10 | 7.5A Automatic transmission selector position indicator, diagnostic socket |
| 11 | 5A Electro anti-theft mechanism of the steering column |
| 12 | 5A Automatic transmission |
| 13 | 10A Control unit for the liquefied gas supply system |
| 14 | 10A Reversing lamps |
| 15 | 20A Relay solenoid valve LPG |
| 16 | 10A A / C Compressor Electromagnetic Clutch |
| 17 | 10A Reserve |
| 18 | 40A Electro engine cooling fan |
| 19 | 25A ABS control unit |
| 20 | 30A Heated tailgate glass |
| 21 | 25A Starter relay |
| 22 | 25A Windshield wiper motor |
| 23 | 25A Reserve |
General view (Version 2).
| Assignment of the fuses in the engine switching box (Version 2) | |
|---|---|
|
|
| № | Amps / Description |
| 1 | 10A Fuse for right side light lamps (172-226) - switch for speed control (1081) - switch for stabilization of the path of travel (1106) - indicator of position of the selector lever of the automatic transmission (1129) - switch for heating the left seat (1514) - heating switch right seat (1513) - hard convertible top switch |
| 2 | 10A Fuse for left lamps of the central electronic communication unit of side light (173-227) - cigarette lighter (101) - switches for electric door locks and alarm (1391) - headlight range control switch (1390) - climate control panel (319) - audio systems (281 ) - multifunction display (653) - central electronic communication unit |
| 3 | 10A Fuse for right headlight (low light) (226) - rear height sensor (1372) - front height sensor (1373) - headlight range control switch (1360) - right headlight range control motor (538) |
| 4 | 10A Fuse left headlight (low beam) (227) - left headlight corrector motor (537) |
| 5 | 20A Fuse right and left fog lights (176-177) |
| 6 | 10A Fuse left headlight (high beam) |
| 7 | 10A Fuse for the right headlight (high beam) |
| 8 | 25A Fuse for ABS ECU (113) or ESP (1094) |
| 9 | 25A Windshield wiper motor |
| 10 | 5A Fuse circuit "+" after ignition on airbags and electric power steering (756-1232) |
| 11 | 15A Fuse for electric steering column lock |
| 12 | Empty |
| 13 | Empty |
| 14 | 15A Injection system, Protection relay |
| 15 | 10A Spare |
| 16 | 5A automatic transmission |
| 17 | 7.5A Fuse '+ "after ignition in the passenger compartment: selector lever position indicator (1128) - automatic gearbox shift mode switch (129) - speed limiter switch (1081) - instructor's controls on a training car (459) - passenger compartment fuse and relay box (260) - auxiliary heating relay 1 (1067) - auxiliary heating relay 2 (1088) - diagnostic socket (225) - headset microphone 'free |
| 18 | 5A Electro steering column lock |
| 19 | 10A Reversing lamps |
| 20 | 20A Fuel heating relay |
| 21 | 15A Fuel washer pump |
| 22 | 10A Air Conditioning Compressor Clutch |
| 23 | 30A Rear window heating elements |
Power fuse box
Located under the wiring box.
| Diagram | |
|---|---|
|
|
| № | Amps / Description |
| 1 | 70A Additional heating relay 2 |
| 2 | 60A Passenger compartment fuse and relay mounting block / 70A Glow plugs |
| 3 | 40A Additional heating relay 1 |
| 4 | 70A Electro power steering |
| 5 | 50A ABS control unit |
| 6 | 70A Mounting block for fuses and relays in the passenger compartment |
| 7 | 20A Diesel fuel filter heating relay |
| 8 | 70A Control unit for pre-starting heating |
| 9 | 70A Auxiliary heater relay 2 |
Additional elements
Additional components can be installed near the power fuse box.
|
|
| F9Q engine | |
| A | F9Q: 20A Diesel Heater |
| B | F9Q814: 20A Electric coolant pump |
| 983 | F9Q814: 50A Injection control unit supply relay |
| K9K engine | |
| F1 | Not used |
| F2 | Not used |
| F3 | Not used |
| F4 | 15A + main injector relay power supply (air flow meter power supply protection) |
| 234 | K9K724: 40A 460W Engine Cooling Fan Relay (With A / C) |
| 234 | K9K732: 50A 550W Engine Cooling Fan Relay (With A / C) |
| K4M engine | |
| A | 20A Fuel pump |
| B | 20A LPG fuel pump shutdown |
| C | 20A LPG solenoid valve |
| D | 20A LPG tank |
| E | 20A Gas expansion valve solenoid valve |
| F | Not used |
In the passenger compartment
The main fuse box in the passenger compartment is located in the lower left part of the dashboard, behind the protective cover.
On its reverse side there will be up-to-date information with a decryption of the scheme.
| Assignment of the fuses in the passenger compartment | |
|---|---|
|
|
| № | Amps / Description |
| 1 | Empty |
| 2 | Empty |
| 3 | Empty |
| 4 | 3A Blower motor and interior temperature sensor, interior rearview mirror, rain and light sensors |
| 5 | 20A Heated driver's and front passenger's seats |
| 6 | 20A Electric locks for all doors |
| 7 | 15A Cigarette lighter fuse |
| 8 | 7.5A Heated exterior mirrors |
| 9 | 10A ABS control unit |
| 10 | 15A Head unit of the audio system, on-board computer, electric motor for headlight washers, windshield and tailgate glass (hatchback, station wagon), fuel heating (K9K engine), control unit for heating (air conditioning) and interior ventilation, alarm control unit |
| 11 | 15A Stop light |
| 12 | Reserve |
| 13 | 25A Motor glass driver's door lifter |
| 14 | 25A Motor glass front passenger door lifter |
| 15 | 20A Instrument cluster, electric drive of outside mirrors |
| 16 | 15A Horn, diagnostic connector, electric windshield wiper motor |
| 17 | 15A Rear door wiper motor |
| 18 | 20A Control unit for electrical equipment of the passenger compartment, relay of additional equipment |
| 19 | 30A Electric motor for heating (air conditioning) and interior ventilation |
| 20 | 40A Electric motors glass rear doors |
| 21 | 20А 40А Electric sunroof motor, electric folding roof |
| R1 | Relay for electric motors glass lifters of all doors |
| R2 | Relay accessories |
The fuse number 7 at 15A is responsible for the Renault Megane cigarette lighter.
Under the panel, separate relays can be installed outside of this unit, for example on the accelerator pedal holder # 1524-40A - Brake light controlled by the ESP ECU or auxiliary heating relay - on the left side of the passenger compartment blower unit.
