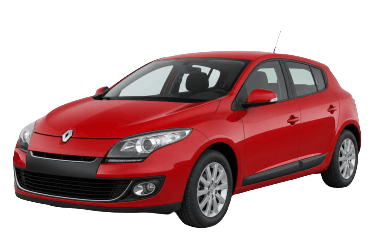

The third-generation Renault Mégane was produced from 2008 through 2016, undergoing two facelifts during its nine-year production run. The most common body styles are the estate (station wagon) and 5-door hatchback, though coupe and sedan variants (sold under the Renault Fluence nameplate) were also produced.
This guide details the locations, relay and fuse assignments, and circuit diagrams for the Renault Mégane 3 (chassis codes B95, D95, K95, E95; C platform).
Passenger Compartment
Fuse Box
Located on the left side of the dashboard.
| Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| F1 | Unused |
| F2 | Unused |
| F3 | 10 A - Cigarette lighter socket |
| F4 | 10 A - Rear auxiliary power socket |
| F5 | 10 A - Luggage compartment auxiliary power socket |
| F6 | 10 A - Audio system |
| F7 | 5 A - Heated exterior mirrors |
| F8 | 10 A - Windscreen washer, door-open warning light |
| F9 | 30 A - Electronic parking brake |
| F10 | 10 A - Instrument cluster |
| F11 | 25 A - Power seat, steering column stalk switches |
| F12 | 20 A - Heated front passenger seat |
| F13 | Unused |
| F14 | 25 A - Front passenger power window |
| F15 | 5 A - Brake light switch, brake pedal position sensor, ABS/ESP control unit |
| F16 | 25 A - Rear right power window |
| F17 | 25 A - Rear left power window |
| F18 | 10 A - Glove box light, left luggage compartment light, door courtesy lights, sun visor vanity mirror lights, rain sensor |
| F19 | 10 A - Digital clock, exterior temperature display, seat belt warning light, audio system connector |
| F20 | 5 A - Climate control unit |
| F21 | 3 A - Sun visor vanity mirror lights |
| F22 | 3 A - Interior courtesy lights, rain and light sensor |
| F23 | 20 A - Trailer socket |
| F24 | 15 A - Body Control Module (UCH) |
| F25 | 3 A - Auto-dimming rear-view mirror |
| F26 | 10 A - Navigation system, CD changer, audio system |
| F27 | 20 A - Audio system, electronic parking brake control unit |
| F28 | Unused |
| F29 | Unused |
| F30 | 15 A - Body Control Module (UCH), turn signals |
| F31 | 10 A - Body Control Module (UCH) |
| F32 | 30 A - Driver door power window |
| F33 | 25 A - Body Control Module (UCH), central locking |
| F34 | 30 A - Passenger door multiplex ECU |
| F35 | 15 A - Digital clock, exterior temperature display, phone display |
| F36 | 15 A - Diagnostic connector (OBD2), horn relay, alarm system control unit, siren |
| F37 | 10 A - Brake lights, body control ECU |
| F38 | 30 A - Electronic parking brake |
| F39 | 30 A - Convertible roof control module |
| F40 | 40 A - Air conditioning blower fan |
| F41 | 25 A - Power sunroof |
| F42 | 40 A - Heated rear window |
| RA | 70 A - Power relay (+Battery) with delayed shut-off (remains active during engine cranking) |
| RB | 70 A - Power relay (+Battery) with delayed shut-off (cuts power during engine cranking) |
| RC | 40 A - Heated rear window relay |
| RD | 20 A - Horn relay |
Additional Relays
A separate 40 A ignition relay (switched +12 V supply while the engine is running) may be located under the front passenger seat. Additionally, auxiliary heater relays can be located on the climate control heater block behind the center console.
Engine Compartment
Protection and Switching Unit (UPC)
Located inside the main junction box in the engine compartment.
Representative image.
| Engine Protection and Switching Unit Fuse Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| 1 | 10 A - Right side lights (right headlight, right tail light), license plate lights, cigarette lighter illumination, power window switch illumination, audio system, navigation system ECU, multimedia control panel |
| 2 | 10 A - Left side lights (left headlight, left tail light), left tailgate light |
| 3 | 15 A - Headlight washer pump |
| 4 | 20 A - Front fog lights |
| 5 | 10 A - Left main beam (high beam) |
| 6 | 10 A - Right main beam (high beam) |
| 7 | 15 A - Diagnostic connector (OBD2), heated rear window relay, automatic transmission selector lever, electric headlight leveling, Xenon/HID control unit, auxiliary heater ECU, cruise control/speed limiter, electronic parking brake, park assist ECU, auto-dimming rear-view mirror |
| 8 | 30 A - ABS/ESP control unit |
| 9 | 30 A - Windscreen wipers |
| 10 | 10 A - Airbag control unit (SRS) |
| 11 | 20 A - Unused |
| 12 | 7.5 A - Automatic transmission ECU |
| 13 | 25 A - Engine Control Unit (ECU) |
| 14 | 15 A - Heated oxygen sensors (Lambda sensors) |
| 15 | 20 A - Automatic transmission ECU |
| 16 | 5 A - Brake light switch, body control ECU, electric power steering (EPS) |
| 17 | 10 A - Automatic transmission mode sensor, headlight leveling, reverse light relay |
| 18 | 15 A - Body Control Module (BCM) |
| 19 | 30 A - Starter motor |
| 20 | Unused |
| 21 | 20 A - Fuel pump, ignition coils, LPG control unit |
| 22 | 10 A - Air conditioning compressor magnetic clutch |
| 23 | 5 A - Fuel injection ECU |
| 24 | 20 A - Left dipped beam (low beam), headlight leveling |
| 25 | 20 A - Right dipped beam (low beam), headlight leveling |
| 26 | Unused |
Fuse Box #2 is located in the engine compartment junction box beneath the Protection and Switching Unit.
Circuit Assignments:
- A - Unused
- B - Fuel heater relay
- C - Reversing light relay
- D - Unused
- F1 - 80 A Coolant immersion heater control unit
- F2 - 70 A Glow plug preheating unit
- F3 - Unused
- F4 - 80 A Coolant immersion heater control unit
- F5 - 60 A / 40 A Cooling fan relay
- F6 - 20 A Fuel heater
- F7 - Unused
- F8 - 30 A Cooling fan relay
- F9 - Unused
Fuse Boxes Near the Battery
Battery Disconnect Unit (1)
Circuit Assignments
- F1 - 190 A Starter motor
- F2 - 50 A Passenger compartment fuse and relay box
- F3 - 80 A Engine compartment Protection and Switching Unit 1, passenger compartment fuse and relay box
- F4 - 300 A / 190 A Engine compartment fuse and relay box 2 / Alternator
- F5 - 80 A Electric power steering (EPS)
- F6 - 35 A Engine Control Module (ECU) / Engine compartment Protection and Switching Unit 1
- F7 - 5 A Engine compartment Protection and Switching Unit 1
High-Power Fuse Block (2)
Battery-mounted fuse block location
Fusible link diagram
Circuit Assignments
- 70 A - Auxiliary cabin heater
- 80 A - Passenger compartment fuse and relay box
- 80 A - Passenger compartment fuse and relay box
- 80 A - Engine compartment Protection and Switching Unit 1 / Passenger compartment fuse and relay box
- 30 A - Auxiliary heater
- 50 A - ABS/ESP control unit
