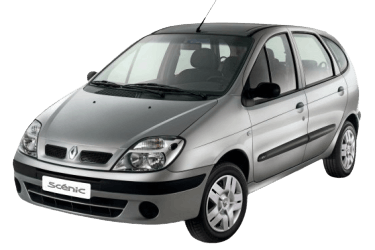

The Renault Megane family car was introduced in 1995. Official production began in 1996. And in 1997, the Megane Scenic compact van was launched on its platform. Years of 1 generation production 1998, 1999, 2000, 2001, 2002 and 2003.
In this article you found information with layouts description of fuses and relays Renault Megane Scenic 1 generation, their photos and diagrams describing the purpose of the elements.
In the engine compartment
In the engine compartment, the fuse box is located on the left side, next to the battery. Possible several variants of its execution.
General view (Type 1).
General view (Type 2).
| Assignment of the fuses in the engine compartment | |
|---|---|
|
|
| № | A / Description |
| A | Fuel pump relay |
| B | Engine control relay |
| C | Coolant heater relay 1 |
| D | A / C compressor electromagnetic clutch relay |
| F | Starter relay - automatic transmission |
| G | Empty |
| H | Empty |
| I | Coolant heater relay 2 |
| J | Cooling Fan Motor Relay - High Speed |
| K | Cooling fan motor relay - low speed |
| 1 | (30A) Cooling fan motor, fuel filter heater |
| 2 | (30A) Engine management |
| 3 | (7,5A) Air conditioning system |
| 4 | (3A) Bi-Fuel System |
| 5 | (7.5A) Bi-Fuel System |
| 6 | (7.5A) Automatic transmission control system, starter |
| 7 | (7.5) Airbag, engine management system, fuel filter heater |
| 8 | (7.5A) Bi-Fuel System |
| 9 | Air conditioner diode |
| 10 | |
| 11 | (70A) Coolant heater, glow plugs |
| 12 | Empty |
| 13 | Empty |
| 14 | (40A / 50A) Cooling fan motor - 2nd speed, fuel filter heater |
| 15 | Empty |
| 16 | (60A) Anti-lock braking system (ABS) |
| 17 | Empty |
| 18 | (60A) Heated windshield |
| 19 | (40A) Air conditioning system |
| 20 | (60A) Multifunction control module 1 |
| 21 | (60A) Fuse / relay box, instrument panel 2 |
| 22 | (60A) Anti-theft system, horn, light switch |
In the passenger compartment
Fuse box is located to the left of the steering rack, under the protective cover.
On the back of the cover there will be an up-to-date fuse diagram.
| Assignment of the fuses in the passeneger compartment | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Electric motor drive glass lifter rear left door | 25 |
| 2 | Empty | - |
| 3 | Electric motor drive glass lifter rear right door | 25 |
| 4 | Rear window cleaner / washer | 15 |
| 5 | Heated door mirrors | 7.5 |
| 6 | Audio system, power aerial, power door mirrors | 15 |
| 7 | Sound signal | 15 |
| 8 | Cooling Fan Motor Relay, Instrument Cluster | |
| 9 | Rear fog lights | 5 |
| 10 | Fog lights | 15 |
| 11 | Front Left / Rear Left Lamps | 7.5 |
| 12 | Headlight washers | 10 |
| 13 | Right front / rear right side lamps | 7.5 |
| 14 | Empty | - |
| 15 | Empty | - |
| 16 | Anti-lock braking system (ABS) | 5 |
| 17 | Front right door power window motor | 25 |
| 18 | Automatic transmission control system, electric drive relay, lift glass, brake lights | 15 |
| 19 | Multifunction control unit 1, reversing lights | 15 |
| 20 | Empty | - |
| 21 | Empty | - |
| 22 | High beam lamp (left) | 10 |
| 23 | Front left door lift glass motor | 25 |
| 24 | High beam lamp (right) | 10 |
| 25 | Air conditioning system, sunroof | 20 |
| 26 | Accessory power connector | 10 |
| 27 | Seat heater | 15 |
| 27 | Heater / air conditioner | 20 |
| 28 | Low beam lamp (left) | 10 |
| 29 | Audio system, cigarette lighter renault megan scenic | 15 |
| 30 | Low beam lamp (right) | 10 |
| 31 | Empty | |
| 32 | Jumper - headlights | |
| Lower section of the block | ||
|
||
| A | Direction indicators / hazard warning lights | 15 |
| B | Multifunctional control unit 1 | 5 |
| C | central locking | 20 |
| D | Windshield wiper | 20 |
| E | Power windows | 25 |
| F | Heated door mirrors, heated rear window | 30 |
| Relay circuit on the back of the unit | |
|---|---|
|
|
| No. | Decoding |
| A | headlight washer pump |
| B | daytime lighting system - headlights |
| C | daytime lighting system - front / rear lamps |
| D | daytime lighting system - main relay |
