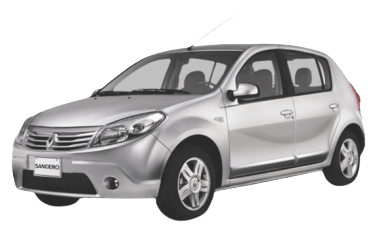

Dacia Sandero is a subcompact hatchback produced on the same platform as Renault Logan. The off-road version of this model is known as the Sandero Stepway. Renault Sandero 1st generation was produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015. After, the car was updated and in 2014, 2015, 2016, 2017, 2018, 2019, 2020 and to the present, the 2nd generation is delivered.
We provide information with a description of Dacia Sandero I fuses and relays, their locations, photographs and block diagrams.
In the passenger compartment
Fuse box is located at the end of the instrument panel.
| Assignment of the fuses in the passenger compartment | |
|---|---|
|
|
| № (Аmps) | Description |
| F01 (20A) | Windshield cleaner; rear window heating relay coil |
| F02 (5A) | Instrument cluster power supply; winding of the relay K5 of the fuel pump and the ignition coil; power supply of the ECU of the engine control system from the ignition lock |
| F03 (20A) | Brake light lamps; reversing light bulbs; windshield washer |
| F04 (10A) | Electrical circuits: airbag control unit; direction indicator lamps; diagnostic connector of the engine management system; immobilizer coils |
| F09 (10A) | Electrical circuits: headlight lamps of the left headlight unit (low beam); headlight dipped beam indicator in the instrument cluster; headlight washer pump |
| F10 (10A) | Headlight lamps of the right headlight unit (low beam) |
| F11 (10A) | Headlight lamps of the left headlight unit (high beam); headlight high beam indicator in the instrument cluster |
| F12 (10A) | Headlight lamps of the right headlight unit (high beam) |
| F13 (30A) F14 (30A) |
Circuits of electric windows of rear and front doors, respectively |
| F15 (10A) | ABS ECU |
| F17 (15A) | Signal |
| F18 (10A) | Side light bulbs of the left headlight unit; side light lamps for the left rear light; license plate lighting lamps; illumination of the instrument cluster and controls on the instrument panel, console and floor tunnel lining; switching unit buzzer |
| F19 (7.5A) | Side light bulbs for the right headlamp; side light lamps for the right rear light; glove compartment lamps |
| F20 (7.5A) | Lamps and signaling device for turning on the rear fog lamp |
| F21 (5A) | Circuit of heating elements for outside rear-view mirrors |
| F28 (15A) | Interior lampshade; luggage compartment lamp; constant power supply of the head unit of sound reproduction |
| F29 (15A) | Electrical circuits: alarm switch; direction indicator switch; intermittent operation of the windshield wiper; central lock control; diagnostic connector of the engine management system |
| F30 (20A) | Central locking power circuit |
| F31 (15A) | Fog lamp relay coil K8 |
| F32 (30A) | Rear window defogger relay power circuit |
| F36 (30A) | Power circuit of relay K1 heater fan |
| F37 (5A) | Circuits of electric drives of external rear-view mirrors |
| F38 (10A) | Cigarette lighter Dacia / Renault Sandero; power supply of the head unit of sound reproduction from the ignition switch |
| F39 (30A) | Heater fan relay coil circuit |
In the engine compartment
Fuse box located near the battery.
| Assignment of the fuses in the engine compartment box | |
|---|---|
|
|
| № (Amps) | Description |
| F01 (60A) | Electrical circuits: power supply of the ignition lock and all consumers supplied from the lock; outdoor light switch |
| F02 (30A) | Power circuit of the relay K3 of the cooling fan (on a car without air conditioning) |
| F03 (25A) | Power circuits: relay K5 of the fuel pump and ignition coil; main relay K6 engine management system |
| F04 (5A) | Electrical circuits: constant power supply to the ECU of the engine control system; winding of the main relay K6 of the engine management system |
| F05 (15A) | Not used |
| F06 (60A) | Passenger compartment fuse box power supply circuit |
| F07 (40A) | Power circuits: air conditioner relay K4; relay K3 low speed cooling fan (on a car with air conditioning); relay K2 high speed cooling fan (on a car with air conditioning) |
| F08 (50A) F09 (25A) |
ABS ECU Circuits |
Relay assignment
- K1 - stove fan relay, heater fan motor. See information about F36.
- K2 - high speed cooling fan relay (for cars with air conditioning), radiator cooling fan motor.
- KZ - low speed relay for cooling fan (for cars with air conditioning) or relay for radiator cooling fan (for cars without air conditioning), cooling fan motor (for cars with air conditioning - through a resistor).
- K4 - air conditioner relay, compressor electromagnetic clutch.
- See information about F36.
- K5 - fuel pump relay and ignition coil.
- K6 - the main relay of the engine control system, oxygen concentration sensor, speed sensor, fuel injectors, e / m adsorber purge valve, relay coils K2, KZ, K4.
- K7 - headlight washer pump relay.
- K8 - fog lamp relay. See information about F31.
