Most electrical circuits on this French minivan are protected by fuses. High-current consumers are connected via relays. Fuses and circuit protection components are housed in distribution boxes located in the passenger compartment and under the hood.

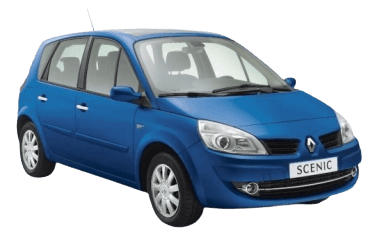

The diagram information applies to second-generation Renault Scénic models (chassis code JM; C platform) covering model years 2003 through 2009.
Engine Compartment
Main Fuse Box
To gain access, remove the battery and upper tray. Unscrew bolt (1) and disconnect electrical connectors (2).
Access overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 3 | Starter solenoid relay | 25 |
| 4 | A/C compressor clutch | 10 |
| 5A | Electric steering column lock | 15 |
| 5C | Reversing lights | 10 |
| 5D | Engine control unit (ECU) and electric steering column lock (+ ignition supply) | 5 |
| 5E | Airbag ECU and Electric Power Steering (+ ignition supply) | 5 |
| 5F | + Ignition supply (passenger compartment): Gear selector position indicator, cruise control and speed limiter, cabin fuses and relays, auxiliary heater relay, diagnostic connector (OBD), electrochromic rearview mirror, rain and solar radiation sensors (where fitted), alarm ECU, parking assistance ECU, audio system | 7.5 |
| 5H | Automatic transmission (+ ignition supply) | 5 |
| 5G | Not used (or + ignition supply for LPG system, if equipped) | 10 |
| 6 | Heated rear window | 30 |
| 7A | Right-hand side lights, parking sensor switch, ESP/stability control switch, gear selector position indicator, electronic parking brake switch | 7.5 |
| B7 | Left-hand side lights, cigarette lighter, central locking and hazard warning switches, headlight leveling switch, A/C control panel, audio system, multifunction display, central communication unit, CD changer, driver power window switch, power mirror switch, rear window lockout switch, front passenger power window switch, rear power window switches, navigation system ECU, heated seat elements (driver and passenger) | 7.5 |
| 8A | Right headlight (high beam) | 10 |
| B8 | Left headlight (high beam) | 10 |
| 8C | Right headlight (low beam), headlight range control unit, right headlight range control actuator, xenon ECU | 10 |
| 8D | Left headlight (low beam), left headlight range control actuator | 10 |
| 9 | Windscreen wiper motor | 25 |
| 10 | Front fog lights | 20 |
| 11 | Engine cooling fan (low speed) | 40 |
| 13 | ABS/ESP ECU | 25 |
| 15 | Automatic transmission + battery feed (or LPG system supply, if equipped) | 20 |
| 16 | Spare | 10 |
Auxiliary Fuse Panel
Located above the main fuse box.
| Diagram | |
|---|---|
|
|
| No. | Rating & Description |
| 1 | 70A - Auxiliary heater relay 2 |
| 2 | 60A - Passenger compartment fuse and relay box |
| 3 | 40A - Auxiliary heater relay 1 |
| 4 | 70A - Electric power steering (EPS) |
| 5 | 50A - ABS ECU |
| 6 | 70A - Passenger compartment fuse and relay box |
| 7 | 20A - Diesel fuel filter heater relay |
| 8 | 70A - Preheating control unit (glow plugs) |
| 9 | Spare |
Power Fuse Panel
High-current fuses are located on the positive battery terminal.
Component key:
- Passenger compartment electronic control unit (30A)
- Engine compartment switching unit (350A petrol / 400A diesel)
- Engine compartment switching unit (30A)
Passenger Compartment
Main Fuse Box
Located on the driver’s side of the dashboard.
Behind the access cover (left-hand drive models).
Behind the glove compartment (right-hand drive models).
Access overview.
| Passenger Compartment Fuse Assignments | ||
|---|---|---|
|
||
| No. | Description | A |
| C | Blower motor / interior fan | 40 |
| D | One-touch rear power windows or power window relay (left-hand drive) | 40 |
| E | Electric sunroof | 20 |
| F | ABS/ESP ECU, yaw rate and lateral acceleration sensor | 10 |
| G | Audio system, headlight washer pump relay, front cigarette lighter, seat heaters, windscreen washer pump, diesel fuel heater relay, A/C control panel, A/C ECU, electrochromic rearview mirror, alarm system, central communication unit | 15 |
| H | Brake lights | 15 |
| I | Xenon ECU power supply relay, xenon headlight actuator power supply unit, glove compartment light | 5 |
| J | Driver power window | 25 |
| K | Front passenger power window, power window relay (right-hand drive) | 25 |
| L | Consumer isolation fuse: audio system, power door mirrors, alarm system, instrument cluster, center console | 20 |
| M | Horn, diagnostic connector (OBD), headlight washer pump relay | 15 |
| N | Rear windscreen wiper motor | 15 |
| O | UCH (Passenger Compartment Control Unit), A/C ECU, brake light relay (B) | 20 |
| T | Secondary cigarette lighter / 12V accessory socket | 20 |
| S | Interior temperature sensor fan, electrochromic rearview mirror, rain and light sensors | 3 |
| U | Central locking / internal door lock switch | 20 |
| V | Spare | - |
| W | Heated door mirrors | 7.5 |
| A | Power window relay or xenon headlight relay | 40 |
| B | Brake light relay | 40 |
Auxiliary Fuse Box
Located beneath the front passenger seat. To gain access, unclip the frame (1) and press the tabs (2) to remove the drawer unit.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Electronic parking brake | 25 |
| 2 | Heated front seats (driver and passenger) | 20 |
| 3 | Spare | 10 |
| 4 | Center console accessory power sockets, console lock motor, and storage compartment light | 10 |
| 5 | Rear passenger 12V power sockets (second row) | 10 |
| 6 | Front passenger 12V power sockets (first row) | 10 |
| 7 | Auxiliary load relay (secondary power feed for fuses 2, 4, 5, and 6) | 50 |
