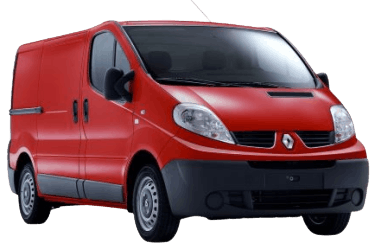

Fuses and relays Renault Trafic 2 (JL/FL; 2001-2014)

The Renault Trafic range includes commercial panel vans and passenger minivans. First introduced in 1981, the model line remains in production across successive generations. It has also been marketed as the Nissan Primastar and Opel/Vauxhall Vivaro. Below is technical information regarding the fuse and relay panels for second-generation Renault Trafic models produced from 2001 to 2014 (chassis codes JL, FL; X83 platform; model years 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014). Production of the third-generation Renault Trafic began in 2015.

The location, layout, and component assignments may vary depending on the destination market, model year, and equipment configuration.

General Component Locations

Locations of electronic control units and major components.

1	ABS electronic control unit – underfloor
2	Air conditioning / heater control module
3	12V Battery
4	Data Link Connector (DLC / Diagnostic port)
5	Engine Control Module (ECM)
6	Engine compartment fuse/relay box
7	Instrument panel fuse/relay box 1
8	Instrument panel fuse/relay box 2
9	Underfloor fuse/relay box
10	Glow plug control relay
11	Blower motor resistor – inside heater assembly
12	Horn
13	Inertia fuel shut-off switch
14	Body Control Module (BCM) – Functions: Anti-theft alarm, central locking, heated rear window, immobilizer, turn signals, interior lighting, windshield wiper/washer
15	Navigation control module
16	Ambient air temperature sensor – right door mirror
17	Parking assist control module
18	SRS airbag control module
19	Transmission Control Module (TCM) – Automated Shift Manual (ASM)
20	Vehicle Speed Sensor (VSS) – on transmission (select models)

Passenger Compartment

The main fuse panel is located behind the lower dash panel on the driver's side.

A component assignment diagram is attached to the inside of the protective cover.

Fuse Box Diagram
No.	Rating / Circuit Protected
1	15A – Audio system, lighting relay, alarm system, multi-function display, navigation ECU, tachograph
2	10A – Interior lighting
3	15A – Front fog light relay
4	15A – Horn, exterior light switch, turn signal switch, fog light switch
5	25A – Horn, exterior light switch, turn signal switch, fog light switch
6	30A – Windshield wipers and washers
7	10A – Engine ECU, manual transmission ECU, starter relay, fuel pump relay
8	25A – Cabin heater blower motor
9	10A – Central locking, Diagnostic connector (DLC), Instrument cluster, steering angle sensor
10	30A – Central locking system
11	15A – Turn signals / Hazard flasher
12	30A – Heated rear window and heated mirror relay
13	25A – Horn, exterior light switch, turn signal switch, fog light switch
14	25A – Auxiliary heating system electric coolant pump relay, auxiliary air distribution unit
15	15A – Reverse light switch, fuel heater relay, backup lights, windshield wipers
16	10A – Central locking, heated rear window switch, glove box light, instrument cluster, climate control module, headlight leveling switch
17	10A – Vehicle speed sensor, steering angle sensor, ABS ECU, ESP ECU
18	15A – HVAC control module, wiper/washer controls, audio system, parking light relay, low beam relay, rear wiper, display
19	10A – Brake light switch, diagnostic connector (DLC), SRS airbag ECU, parking assist ECU, rain/light sensor, ESP switch
20	15A – Cabin heater, auxiliary heater relay, heated seat switches
21	30A – Power windows
22	30A – Rear window wiper motor and relay
23	10A – High beam headlights
24	25A – Rear/passenger climate control panel, auxiliary heater coolant pump relay
25	5A – Time-delay battery load shed relay / interior light power management
26	10A – Heated exterior power mirrors
27	15A Cigarette lighter fuse (Renault Trafic) – Front power socket / cigarette lighter, 1st row accessory power
28	25A – Blower motor (HVAC), climate control panel
29	10A – Multi-function display, daytime running light (DRL) main relay, audio system, navigation ECU
30	15A – Front 12V auxiliary power socket (1st row)
31	15A – Rear 12V auxiliary power socket (2nd row)
32	15A – Horn
33	10A – Front fog lights
34	10A – Parking/position lights (Right side)
35	10A – Parking/position lights (Left side), instrument cluster illumination
36	10A – Low beam (Right headlight)
37	10A – Low beam (Left headlight)
38	10A – High beam (Right headlight)
39	10A – High beam (Left headlight)

Fuse Box 2 is located on the right side beneath the steering column. Its specific configuration depends on the vehicle's production year. Additional relay carriers may also be located behind the instrument panel.

• Heated rear window relay;
• Rear window wiper/washer relay;
• Rear wiper relay;
• Main ignition circuit relay;
• Heated windshield relay;
• Front fog light relay.

Engine Compartment

The main engine compartment fuse box is situated on the left side under a protective cover.

Diagram (Type 1)
No.	Circuit Description	Rating (A)
F1A	Automated Shift Manual transmission (ASM)	30
F1B	Spare	70
F1C	Auxiliary coolant heater	60
F1D		60
F1E	Spare	40
F1F	Engine cooling fan motor	60
F2A	Spare	60
F2B	Not used	-
F2C	Spare	60
F2D	Spare	60
F2E	Spare	40
F2F	Engine cooling fan motor	40
F1	Engine Control Module (ECM)	25
F2	Spare	15
F3	A/C compressor magnetic clutch	10
F4	Petrol engines: Fuel pump fuse	20
F5	Spare
F6	Automated Shift Manual transmission (ASM)	20
F7	Automated Shift Manual transmission (ASM)	5
F8	Not used	-
F9	Auxiliary power connector	15
F10		15
F11	Air conditioning / heating system	5
F12	Auxiliary heater	20
1	Not used	-
2	Not used	-
3	Not used	-
4	A/C compressor magnetic clutch relay	-
5	Not used	-
6	Not used	-
7	Engine management relay	-
8	Not used	-
9	Auxiliary ignition circuits relay	-
10	Fuel filter heater relay	-
11	Not used	-
12	Transmission hydraulic pump relay	-
13	Starter motor relay	-
14	Not used	-

Diagram (Type 2)
No.	Circuit Description	Rating (A)
FA	Spare	60
FB	Not used	-
FC	Auxiliary power circuits	40
FD	Cabin heater blower motor	40
FE	G9U engine: Engine cooling fan motor	40
FF	ABS / ESP control module	40
F01	Spare	70
F1	Spare	15
F2	A/C compressor magnetic clutch	15
F03	Spare	50/60
F3	Spare	30
F04	Spare	60
F	Except F4R engine: Auxiliary heater	25
F05	Ignition switch circuits	60
F5	Automated Shift Manual transmission (ASM)	5
F06	ABS / ESP control module	40/60
F6	Automated Shift Manual transmission (ASM)	20
F7		30
F8	Not used	-
1	Not used	-
2	Not used	-
3	Not used	-
4	Not used	-
5	A/C compressor magnetic clutch relay	-
6	Diesel engines: Fuel filter heater relay	-
7	Not used	-
8	Not used	-
9	Engine management relay	-
10	Not used	-
11	Starter motor relay	-
12	Not used	-

Diagram (Type 3)
No.	Circuit Description	Rating (A)
FA	Spare	60
FB	Spare	50
FC	Heated windshield	50
FD	Cabin heater blower motor	40
FE	Not used	-
FF	Not used	-
F01	Spare	70
F1	Air conditioning system	30
F02	Spare	50
F2	Auxiliary heater	25
F03	Engine cooling fan motor	50
F3	Not used	-
F04	Spare	60
F4	Spare	15
F05	Ignition switch circuits	60
F06	ABS / ESP control module	60
1	Not used	-
2	Engine management relay	-
3	Not used	-
4	Renault Trafic fuel pump relay	-
5	Not used	-
6	A/C compressor magnetic clutch relay	-
7	Not used	-
8	Auxiliary heater diode	-

A high-current primary fuse module is mounted directly on the positive battery terminal.
