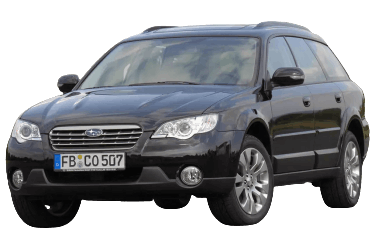

The third generation Subaru Outback has been restyled with minor changes, as usual, affecting some exterior elements, including optics. The interior has also undergone minor adjustments. The most interesting offer for the European buyer was the appearance of a 150-horsepower diesel version - the Subaru Legacy and Outback models became the world's first cars with a boxer diesel engine. Their official premiere took place at the Geneva Motor Show in March 2008. Petrol models, as before, are represented by atmospheric units of 2.5 liters (165 hp or 173 hp since 2007) and a six-cylinder 3.0 l (245 hp).
The power supply circuits of the Japanese car are protected by fuses. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. Considered diagrams Subaru Outback (BP) 3rd generation 2006, 2007, 2008, 2009 release.
In the engine compartment
Fuse box located near the battery.
General view of the block.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| A | FWD connector (AT vehicles - except Turbo and 3.0 liter models) | |
| B | Main fuse | |
| 1 | ABS unit, Vehicle dynamics control unit | 30 |
| 2 | Main fan | 25 |
| 3 | Additional fan (except 3.0 liter models) | 25 |
| 4 | Main fan (3.0 liter models) | 25 |
| 5 | Spare | 20 |
| 6 | Headlamp (right side) | 15 |
| 7 | Headlamp (left side) | 15 |
| 8 | Standby light | 20 |
| 9 | Horn | 15 |
| 10 | Heated rear window | 25 |
| 11 | Fuel pump fuse | 15 |
| 12 | Automatic transmission control module | 15 |
| 13 | engine control module | 7.5 |
| 14 | Direction indicator and alarm | 15 |
| 15 | Parking switch | 20 |
| 16 | alternator | 7.5 |
In the passenger compartment
Fuse box located to the left of the steering wheel behind a plastic cover.
Photo is an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Cargo Fan, Trailer Hitch Connector | 20 |
| 2 | Empty | - |
| 3 | Door lock | 15 |
| 4 | Front wiper defroster relay, sunroof | 15 |
| 5 | Combined counter | 15 |
| 6 | Remote controlled rearview mirrors, seat heater relay, vanity mirror light | 7.5 |
| 7 | Combined counter, built-in unit | 15 |
| 8 | Stop lamp | 20 |
| 9 | Heated mirrors, front wiper anti-icing | 20 |
| 10 | Power supply (battery) | 7.5 |
| 11 | Direction indicator block, Clock | 7.5 |
| 12 | Automatic Transmission Unit, SRS Airbag System (Sub), Engine Control Unit, Integral Unit | 15 |
| 13 | Cargo power outlet | 20 |
| 14 | Side light, Rear light, Rear combination light | 15 |
| 15 | Empty | - |
| 16 | lighting | 15 |
| 17 | Seat heating | 15 |
| 18 | Standby light | 10 |
| 19 | Right headlight relay | 7.5 |
| 20 | Outback Cigarette Lighter Fuse | 10 |
| 21 | Starter relay | 7.5 |
| 22 | Air conditioning, Rear window defogger relay coil | 15 |
| 23 | Rear wiper, Rear window washer | 15 |
| 24 | Audio system, Clock | 15 |
| 25 | SRS airbag system (basic) | 15 |
| 26 | Power window relay | 15 |
| 27 | Blower fan | 15 |
| 28 | Blower fan | 15 |
| 29 | Fog lights | 15 |
| 30 | Front wiper, Front wiper washer | 30 |
| 31 | Automatic air conditioning, built-in unit | 7.5 |
| 32 | Left headlight relay | 7.5 |
| 33 | ABS / vehicle dynamics control unit | 7.5 |
