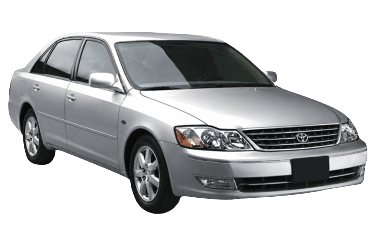

This article provides detailed fuse box diagrams and assignments for the second-generation Toyota Avalon (K platform; XX20 chassis: 1999, 2000, 2001, 2003, and 2004 model years).
Fuse No. 53 in the passenger compartment fuse box protects the cigarette lighter circuit.
Engine Compartment
The engine compartment fuse box is located on the left side of the engine bay. Remove the protective cover to access the fuses.
| Diagram | ||
|---|---|---|
 |
||
| No. | Circuit Protected | Rating (A) |
| 1 | Unlisted (models with daytime running lights) | 10 |
| Right headlight, high-beam indicator (models without daytime running lights) | 15 | |
| 2 | Unlisted (models with daytime running lights) | 10 |
| Left headlight, front fog lights (models without daytime running lights) | 15 | |
| 3 | Right headlight (low beam) (models with daytime running lights) | 15 |
| 4 | Left headlight (low beam) (models with daytime running lights) | 15 |
| 5 | Vehicle Skid Control (VSC) system / ABS | 5 |
| 6 | Daytime Running Light (DRL) system | 7.5 |
| 7 | Not used | 30 |
| 8 | Not used | 15 |
| 9 | Not used | 25 |
| 10 | Not used | 10 |
| 11 | Charging system | 5 |
| 12 | Power supply for “TAIL”, “ECU-B”, and “RADIO” fuses | 30 |
| 13 | Anti-theft system | 10 |
| 14 | Turn signal lights | 15 |
| 15 | Air/Fuel (A/F) ratio sensor | 25 |
| 16 | Power door lock system | 15 |
| 17 | Horn, anti-theft system | 10 |
| 18 | SRS airbag system, multiport fuel injection system, starting system, charging system, A/F ratio sensor, fuel pump | 10 |
| 19 | Multiport fuel injection system, Mass Air Flow (MAF) sensor, oxygen sensor, Evaporative Emission (EVAP) control system, Electronic Throttle Control System (ETCS), engine control system | 7.5 |
| 20 | Anti-lock Braking System (ABS) | 25 |
| 21 | Vehicle Skid Control (VSC) system | 25 |
| 22 | Multiport fuel injection system, fuel pump | 15 |
| 23 | Multiport fuel injection system | 15 |
| 56 | 40 | |
| 57 | Air conditioning system | 50 |
| 58 | Electric cooling fans | 30 |
| 59 | Electric cooling fans | 30 |
| 60 | Starting system | 40 |
| 63 | Anti-lock Braking System (ABS), “ABS No. 4” fuse | 60 |
| 64 | Power supply for “HTR”, “A/C”, “ABS No. 2”, “ABS No. 3”, “RDI”, “CDS”, “AM1”, “ABS”, and “ABS No. 4” fuses | 120 |
Passenger Compartment
The interior fuse box is located behind the lower instrument panel cover on the driver’s side.
Accessing the fuse box.
| Diagram | ||
|---|---|---|
 |
||
| No. | Circuit Protected | Rating (A) |
| 26 | Electric cooling fans | 5 |
| 27 | Air conditioning system, anti-theft system, power seats, combination meter, power windows (driver and front passenger), multiplex communication system | 7.5 |
| 28 | Parking lights, license plate lights, taillights, rear side marker lights, tail light failure warning light, engine control system | 10 |
| 29 | Heated seats | 20 |
| 30 | Power window (front passenger) | 20 |
| 31 | Vehicle Skid Control (VSC) system, rear window defogger, cruise control system, shift lock system, Anti-lock Braking System (ABS), auto-dimming rearview mirror, automatic headlight control system, power seats, tail light failure warning light, automatic transmission position indicators, power outlet, power window (driver), brake warning light, power moonroof | 10 |
| 32 | Air conditioning system | 10 |
| 33 | Front fog lights | 15 |
| 34 | Turn signal lights | 7.5 |
| 35 | Air conditioning system | 10 |
| 36 | Audio system, multi-information display | 15 |
| 37 | Combination meter and gauges, audio system, cigarette lighter, air conditioning system, hazard warning lights, electronically controlled transmission (ECT) system, power mirrors, multi-information display, glove box light, instrument panel illumination, illumination brightness control, power outlet | 5 |
| 38 | Power window (driver) | 25 |
| 39 | Accessory power outlet (ACC) | 15 |
| 40 | Audio system, power mirrors, multi-information display, shift lock system, multiplex communication system | 5 |
| 41 | SRS airbag system | 10 |
| 42 | Heated outside mirrors, engine control system | 10 |
| 43 | Accessory power outlet (IG) | 15 |
| 44 | Backup lights | 10 |
| 45 | On-Board Diagnostics (OBD) system | 7.5 |
| 46 | Stop lights, high-mounted stop light, Anti-lock Braking System (ABS), shift lock system, cruise control system, Vehicle Skid Control (VSC) system, engine control system | 15 |
| 47 | Interior lights, front map lights, door courtesy lights, ignition key cylinder light, vanity mirror lights, garage door opener, door-ajar warning light, illuminated entry system, rear map lights, automatic light control system, trunk compartment light, keyless entry system, multiplex communication system | 7.5 |
| 48 | Not used | 5 |
| 49 | Power window (rear left) | 20 |
| 50 | Power window (rear right) | 20 |
| 51 | Windshield wipers and washer | 25 |
| 52 | Anti-lock Braking System (ABS), cruise control system, multi-information display, anti-theft system, Vehicle Skid Control (VSC) system, combination meter, multiplex communication system | 10 |
| 53 | Cigarette lighter / accessory socket | 15 |
| 54 | Anti-theft system, power trunk opener, multiplex communication system | 25 |
| 55 | Power moonroof | 30 |
| 61 | Rear window defogger, noise filter | 40 |
| 62 | Power seats | 30 |
