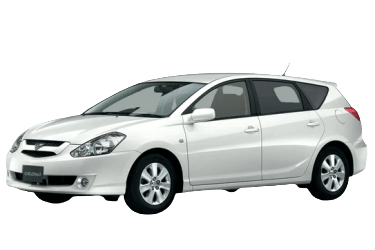

Fuses and relays Toyota Caldina (T240; 2002–2007)

Most electrical power supply circuits on this vehicle are protected by fuses. High-current consumers—such as headlights, cooling fan motors, and the fuel pump—are routed through relays. Protective fuses and relays are housed in junction blocks located under the hood and in the passenger compartment.

This fuse diagram applies to 2002–2007 Toyota Caldina (chassis codes 241 / 246; Toyota MC platform) 2WD & 4WD models equipped with 1AZ-FSE (2.0L D-4), 1ZZ-FE (1.8L), and 3S-GTE (2.0L Turbo) engines.

Passenger Compartment

Component Locations (Dashboard / Instrument Panel): 1 – Passenger-side junction block, 2 – Fuel pump relay, 3 – Multiplex network control module, 4 – Engine control unit (ECU), 5 – Parking assist ECU, 6 – Shift lock solenoid, 7 – ABS control module (models with VSC or standard ABS through 01/2005), 8 – SRS airbag control unit, 9 – Air conditioning control unit, 10 – Headlight leveling control unit, 11 – Driver-side junction block, 12 – Fog lamp relay, 13 – Turn signal / hazard flasher relay, 14 – Intermittent wiper relay.

General view – Driver-side fuse box.

Diagram
Code	Circuit / Protected Components	Rating (A)
ECU-ACC	Power distribution Power mirrors Key-in-ignition and headlights-on warning system Audio system, navigation system, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist Clock Air conditioning system	7.5
ECU-IG	Power distribution Charging system Electric cooling fan (1ZZ-FE) Automatic transmission control system and shift lever position indicator illumination (3S-GTE) Anti-lock braking system (Standard / Sport through 01/2005, models with TRC and VSC) Shift lock system Seat belt warning system Audio system, navigation system, and rearview camera Audio, navigation, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist (models through 12/2003) Audio system, navigation system, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist (models 12/2003–01/2005) Audio system, navigation system, parking assist, and rearview camera (models from 01/2005) Headlights (models with HID/xenon headlights from 01/2005)	7.5
PANEL	Power distribution Clock Fog lamps Reverse lamps	7.5
RR FOG	Power distribution Rear fog lamps	7.5
A / C	Power distribution Seat belt warning system Audio, navigation, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist (models through 12/2003) Clock Air conditioning system Rear window defogger and heated mirrors	10
GAUGE	Power distribution Charging system Engine management system Automatic transmission control system and shift lever position indicator illumination Anti-lock braking system (Standard / Sport through 01/2005, models with TRC and VSC) SRS airbag system Power windows Power door locks Key-in-ignition and headlights-on warning system Seat belt warning system Power sunroof Instrument cluster Audio system, navigation system, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist Headlights (HID/xenon models from 01/2005) Turn signal and hazard warning flasher Automatic headlight control system Instrument panel illumination Reverse lamps Air conditioning system Wiper de-icer	10
MIR HTR	Power distribution Rear window defogger and heated mirrors	10
STOP	Power distribution Engine management system Automatic transmission control system and shift lever position indicator illumination (1ZZ-FE) Anti-lock braking system (Standard / Sport through 01/2005, models with TRC and VSC) Shift lock system Brake lights	10
CIG	Power distribution Cigarette lighter	15
FR DEF	Power distribution Wiper de-icer	15
FR FOG	Power distribution Front fog lamps	15
IGN	Power distribution Ignition system Engine management system Automatic transmission control system and shift lever position indicator illumination Anti-lock braking system (Standard / Sport through 01/2005, models with TRC and VSC) SRS airbag system Engine immobilizer system Instrument cluster	15
RR WIP	Power distribution Rear window wiper and washer	15
TAIL	Power distribution Key-in-ignition and headlights-on warning system Front fog lamps Instrument panel illumination Tail lamps	15
WIPER	Power distribution Windshield wiper and washer system	20
DOOR	Power distribution Interior lighting	30
FR P / W	Power distribution Front power windows Power door locks	30
PWR	Power distribution Power windows	30
DEF	Power distribution Rear window defogger	30

Engine Compartment

Component Locations (Engine Compartment): 1 – Fuel pump relay, 2 – ABS relay box, 3 – Engine compartment relay box No. 2, 4 – Engine compartment fuse box No. 1, 5 – Front SRS airbag sensor.

Fuse Box No. 1

General view.

Diagram
Code	Circuit / Protected Components	Rating (A)
ABS No. 3	Anti-lock braking system (ABS) (models with TRC and VSC, Sport through 01/2005)	7.5
DOME	Power distribution Interior lighting	10
ECU-B	Power distribution Charging system Engine management system Automatic transmission control system and shift lever position indicator illumination Anti-lock braking system (models with TRC and VSC, Sport through 01/2005) Audio, navigation, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist (if equipped) Clock Automatic headlight control system Interior lighting Instrument panel illumination Air conditioning system	10
H-LP LH HI	Power distribution Left headlight (high beam)	10
H-LP RH HI	Power distribution Instrument cluster Right headlight (high beam)	10
HORN	Power distribution Horn	10
TURN-HAZ	Power distribution Turn signal and hazard warning flasher	10
EFI2	Power distribution Ignition system (1AZ-FSE) Engine management system (1AZ-FSE through 01/2005) Engine management system (1AZ-FSE from 01/2005)	15
ETCS	Power distribution Engine management system (1AZ-FSE through 01/2005) Engine management system (1AZ-FSE from 01/2005) Automatic transmission control system and shift lever position indicator illumination (1AZ-FSE)	15
H-LP LH LO	Power distribution Left headlight (low beam)	15
H-LP RH LO	Power distribution Right headlight (low beam)	15
EFI	Power distribution Engine management system (1ZZ-FE, 1AZ-FSE through 01/2005, 1AZ-FSE from 01/2005, 3S-GTE) Automatic transmission control system and shift lever position indicator illumination (1ZZ-FE) Engine immobilizer system	20
RAD # 1	Power distribution Audio, navigation, parking assist, rearview camera, Blind Corner Monitor, and Lane Keeping Assist (if equipped)	20
ABS No. 2	Power distribution Anti-lock braking system (TRC and VSC models, Standard, Sport through 01/2005)	25
AM1	Power distribution	25
AM2	Power distribution	30
CDS	Power distribution Electric cooling fan (1AZ-FSE)	30
DCC	Power distribution	30
RDI	Power distribution Electric cooling fan (1ZZ-FE) Electric cooling fan (1AZ-FSE)	30
ABS No. 1	Power distribution Anti-lock braking system (Standard)	40
CDS	Power distribution Electric cooling fan (3S-GTE)	40
HTR	Power distribution Manual air conditioning Automatic air conditioning	40
MAIN	Power distribution Key-in-ignition and headlights-on warning system Instrument cluster Headlights Fog lamps Automatic headlight control system	40
RDI	Power distribution Electric cooling fan (3S-GTE)	40
ABS No. 1	Power distribution Anti-lock braking system (models with TRC and VSC, Sport through 01/2005)	50
ALT	Power distribution Charging system Key-in-ignition and headlights-on warning system Clock Fog lamps Automatic headlight control system Instrument panel illumination Tail lamps Rear window defogger and heated mirrors	120
ALT	Power distribution Charging system Key-in-ignition and headlights-on warning system Clock Fog lamps Automatic headlight control system Instrument panel illumination Tail lamps Rear window defogger and heated mirrors	140

Relay Box No. 2

Diagram.

ST 7.5A Power distribution Starter system Engine management system (1ZZ-FE, 1AZ-FSE, 3S-GTE) Automatic transmission control system and shift lever position indicator illumination (3S-GTE)

ABS Relay Box

Diagram.
