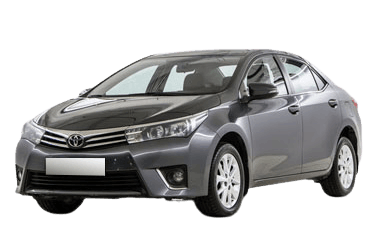

Fuses and relays Toyota Corolla (E180; 2012–2018)

Toyota Corolla E180 represents the 11th generation of the Corolla model range and was produced in 2012, 2013, 2014, 2015, 2016, 2017, and 2018. During this production run, it received a facelift. In this article, we provide a detailed guide to the fuses and relays for the Toyota Corolla (chassis codes E180/E170/E160; New MC platform), including fuse box diagrams and component location maps. The fuse responsible for the cigarette lighter is highlighted in bold.

The exact location and function of individual fuses and relays in power distribution boxes may vary depending on vehicle specification and trim level. Always refer to the fuse box cover diagram on your specific vehicle.

Engine Compartment Fuse & Relay Boxes

Under-hood component layout:

1. Glow plug relay;
2. Fuse and relay box;
3. Generator control unit;
4. Glow plug control module;
5. Radiator fan control unit;
6. Fuel injector control module;
7. Headlamp washer relay;
8. Engine Control Module (ECM);
9. Brake control module (MMT);
10. Relay box (LHD);
11. Brake control module;
12. Relay box (RHD)

Main Fuse Box

Location.

Type 1

Fuse arrangement.

No.	Rating - Circuit Protected
1	7.5A DOME - Luggage compartment illumination, vanity mirror lamps, door courtesy lamps, interior dome lamps, map lamps, footwell illumination
2	20A RAD NO.1 - Audio system, navigation system, park assist system
3	10A ECU-B - Instrument cluster, auxiliary battery, steering angle sensor, double door lock, keyless entry system, Smart Entry & Start system
4	D.C.C
5	10A ECU-B2 - Smart Entry & Start system, air conditioning system, power windows, CAN gateway module
6	7.5A EFI MAIN NO.2 - Multiport fuel injection system (SFI)
7	Empty
8	Empty
9	Empty
10	20A STRG LOCK - Electric steering column lock
11	Empty
12	30A ST - Starting system
13	5A ICS / ALT-S - Charging system
14	10A TURN-HAZ - Turn signal lamps, hazard warning lamps
15	5A ECU-B NO.3 - Electric Power Steering (EPS)
16	7.5A AM2 NO.2 - Starting system
17	Empty
18	50A ABS NO.1 - ABS, Vehicle Stability Control (VSC)
19	30A CDS FAN - Condenser fan
20	40A RDI FAN - Radiator cooling fan
21	30A H-LP CLN - Headlamp washers
22	120A TO IP J/B — Fuses: "ECU-IG NO.2", "HTR-IG", "WIPER", "RR WIPER", "WASHER", "ECU-IG NO.1", "ECU-IG NO.3", "SEAT HTR", "AM1", "DOOR", "STOP", "FR DOOR", "POWER", "RR DOOR", "RL DOOR", "OBD", "ACC-B", "RR FOG", "FR FOG", "DEF", "TAIL", "SUNROOF", "DRL"
23	Empty
24	Empty
25	Empty
26	50A P / I - Fuses: "HORN", "IG2", "FUEL PMP"
27	Empty
28	50A FUEL HTR - Fuel heater
29	50A EFI MAIN - Multiport fuel injection system (SFI)
30	80A EPS - Electric Power Steering (EPS)
31	80A GLOW - Glow plug preheating system
32	Empty
33	15A IG2 - Fuses: "IGN", "METER"
34	15A HORN - Horn, anti-theft alarm system
35	30A FUEL PUMP - Fuel pump fuse
36	Empty
37	30A H-LP MAIN - Fuses: "H-LP LH LO", "H-LP RH LO", "H-LP LH HI", "H-LP RH HI"
38	40A BBC - Stop & Start system
39	30A HTR SUB NO.3 - PTC auxiliary heater
40	Empty
41	30A HTR SUB NO.2 - PTC auxiliary heater
42	50A HTR - Air conditioning system, climate control heater blower
43	50A HTR SUB NO.1 - PTC auxiliary heater
44	30A DEF - Rear window defogger, heated side mirrors
45	25A STV HTR - PTC auxiliary heater
46	30A ABS NO.2 - ABS, Vehicle Stability Control (VSC)
47	Empty
48	Empty
49	10A DRL - Daytime running lamps
50	Empty
51	10A H-LP LH LO - Low-beam headlamp (left)
52	10A H-LP RH LO - Low-beam headlamp (right)
53	7.5A H-LP LH HI - High-beam headlamp (left)
	5A RDI EFI - Radiator cooling fan
54	7.5A H-LP RH HI - High-beam headlamp (right)
	5A CDS EFI - Condenser fan
55	7.5A EFI NO.1 - Multiport fuel injection system (SFI), Stop & Start system
56	15A EFI NO.2 - Multiport fuel injection system (SFI)
57	10A MIR HTR - Multiport fuel injection system (SFI), heated side mirrors
58	20A EFI NO.4 - Multiport fuel injection system (SFI)
59	5A CDS EFI - Condenser fan
60	5A RDI EFI - Radiator cooling fan
R1	Radiator fan relay (FAN NO.2)
R2	Radiator fan relay (FAN NO.3)
R3	Electric Power Steering relay (EPS)
R4	Stop lamp relay (STOP LP)
R5	Starter relay (ST NO.1)
R6	Rear window defogger relay (DEF)
R7	Engine Control Module relay (EFI MAIN)
R8	Headlamp relay (H-LP)
R9	Dimmer relay
R10	Up to Nov 2016: Daytime Running Lamp relay (DRL)
	From Nov 2016: Radiator fan relay (FAN NO.1)
R11	Up to Nov 2016: Radiator fan relay (FAN NO.1)
	From Nov 2016: Fuel heater relay (FUEL HTR)

Type 2

Overview.

Fuse Box Diagram
No.	Rating - Circuit Protected
1	10A ECU-B NO.2 - Air conditioning system, power windows, Smart Entry & Start system, power mirrors, instrument cluster
2	5A ECU-B NO.3 - Electric Power Steering (EPS)
3	7.5A AM2 - Multiport fuel injection system (SFI), starting system, fuse: "IG2"
4	30A D / C CUT - Fuses: "DOME", "ECU-B NO.1", "RADIO"
5	10A HORN - Horn
6	20/25 / 30A EFI-MAIN - Multiport fuel injection system (SFI), fuses: "EFI NO.1", "EFI NO.2", fuel pump
7	5A ICS / ALT-S - Charging system
8	10A ETCS - 1ZR-FAE, 1NR-FE, 1ZR-FE, 2ZR-FE, 8NR-FTS: Electronic Throttle Control System (ETCS)
	20A EDU - 1AD-FTV: Multiport fuel injection system (SFI) injector driver unit
9	10A TURN & HAZ - Except 8NR-FTS: Instrument cluster, turn signal lamps
	30A ST - 8NR-FTS: Starting system
10	15A IG2 - Instrument cluster, multiport fuel injection system (SFI), Supplemental Restraint System (SRS airbags)
11	20A EFI-MAIN NO.2 - 1AD-FTV: Multiport fuel injection system (SFI)
	15A INJ / EFI-B - Gasoline models: Multiport fuel injection system (SFI)
	10A ECU-B NO.4 - 1ND-TV, Sedan (1AD-FTV): Multiport fuel injection system (SFI)
	20A ECU-B NO.4 - 8NR-FTS: Multiport fuel injection system (SFI)
	7.5A DCM / MAYDAY - 1NR-FE (from April 2016): Telematics transceiver unit (eCall/DCM)
12	30A EFI-MAIN NO.2 - Except 8NR-FTS: Multiport fuel injection system (SFI)
	7.5A DCM / MAYDAY - Sedan (1ZR-FE, 1ZR-FAE, 2ZR-FE): Telematics transceiver unit (eCall/DCM)
	10A EFI-MAIN NO.2 - Sedan (1ND-TV): Multiport fuel injection system (SFI)
13	30A ST - Except 8NR-FTS: Starting system
	10A TURN & HAZ - 8NR-FTS: Instrument cluster, turn signal lamps
14	30/40A H-LP MAIN - Fuses: "H-LP RH-LO", "H-LP LH-LO", "H-LP RH-HI", "H-LP LH-HI" - Headlamps
15	30A VLVMATIC - Valvematic system, multiport fuel injection system (SFI)
16	80A EPS - Electric Power Steering (EPS)
17	10A ECU-B NO.1 - Keyless entry system, Body Control Module (BCM), VSC, Smart Entry & Start system, digital clock
18	7.5A DOME - Interior dome lamps, vanity mirror lamps, luggage compartment lamps, Body Control Module (BCM)
19	20A RADIO - Audio system
20	10A DRL - Daytime running lamps
21	15A STRG HTR - Heated steering wheel
22	30A ABS NO.2 - ABS, Vehicle Stability Control (VSC)
23	40A RDI - Radiator cooling fan
24	Empty
25	30 / 50A DEF - Rear window defogger, heated side mirrors
26	50A ABS NO.1 - ABS, Vehicle Stability Control (VSC)
27	50A HTR - Air conditioning system
28	120 / 140A ALT - Generator / Charging system
29	10A EFI NO.2 - Multiport fuel injection system (SFI)
30	10 / 15A EFI NO.1 - Multiport fuel injection system (SFI)
31	10 / 20A EFI-NO.3 - Multiport fuel injection system (SFI)
32	10A MIR-HTR - Multiport fuel injection system (SFI), heated side mirrors
33	10 / 15A H-LP RH-LO - Low-beam headlamp (right)
34	10 / 15A H-LP LH-LO - Low-beam headlamp (left)
35	7.5 / 10A H-LP RH-HI - High-beam headlamp (right)
36	7.5 / 10A H-LP LH-HI - High-beam headlamp (left), instrument cluster
37	15 / 20A EFI NO.4 - Multiport fuel injection system (SFI)
38	Empty
39	Empty
40	Empty
41	15A AMP - Audio system amplifier
42	Empty
43	20A EFI-MAIN NO.2 - Multiport fuel injection system (SFI)
44	20A STRG LOCK - Electric steering column lock
45	50A AMT - Automated Manual Transmission (AMT) control module
46	40A BBC - Stop & Start system
	50A AMT - Automated Manual Transmission (AMT) control module
47	80A GLOW - Glow plug preheating system
48	30A PTC HTR NO.2 - PTC auxiliary heater
49	30A PTC HTR NO.1 - PTC auxiliary heater
50	30A H-LP CLN - Headlamp washers
51	30A ABS NO.1 - ABS, Vehicle Stability Control (VSC)
52	30A CDS FAN - Condenser fan
53	30A PTC HTR NO.3 - PTC auxiliary heater
54	Empty
55	10A S-HORN - Security horn / anti-theft system
56	25A STV HTR - PTC auxiliary heater
	20A DEICER - (1ZR-FE, 1ZR-FAE, 2ZR-FE, 1NR-FE): Windshield wiper de-icer
Option A
57	10A EFI NO.5 - 1ND-TV (from May 2015): Multiport fuel injection system (SFI)
58	Empty
Option B
57	15A EFI NO.6 - 1ND-TV (from May 2015): Multiport fuel injection system (SFI)
58	15A EFI NO.7 - 1ND-TV (from May 2015): Multiport fuel injection system (SFI)

Relay Box #10 / #12

Layout & Functions:

• R1 - Empty
• R2 - PTC auxiliary heater relay (HTR SUB NO.1)
• R3 - PTC auxiliary heater relay (HTR SUB NO.2)
• R4 - PTC auxiliary heater relay (HTR SUB NO.3)

Passenger Compartment Fuse & Relay Boxes

Component Map:

1. Electric steering lock actuator
2. Instrument Panel Fuse Box / Body Control Module (BCM)
3. Adaptive Front-lighting System (AFS) ECU
4. Power Steering Control Module
5. Relay box
6. LHD: Cruise Control ECU
7. Transmission Control Module (TCM)
8. CAN Gateway Module
9. Windshield wiper relay
10. Stop & Start ECU
11. Park Assist / Parktronic ECU
12. LHD (Corolla): Hands-free / Cellular Transceiver Module
13. Shift Interlock Control Module
14. Airbag ECU (SRS)
15. A/C Amplifier / Climate Control Module
16. RHD: Double Door Lock Relay
17. Hatchback, Wagon: Audio Amplifier Module

Passenger Compartment Fuse Box

Located under the driver-side dashboard.

General view.

Fuse Box Diagram
No.	Rating - Circuit Protected
1	15A P / OUTLET - 12V Auxiliary Power Outlet
2	7.5A OBD - On-Board Diagnostics port (OBD-II connector)
3	7.5A STOP - Stop lamps, multiport fuel injection system (SFI), High-Mounted Stop Lamp (CHMSL), ABS, VSC, shift interlock system
4	7.5A FOG RR - Rear fog lamps, instrument cluster
5	20A D / L NO.3 - Central door locking system
6	20A S / ROOF - Electric sunroof
7	7.5A FOG FR - Front fog lamps, instrument cluster
8	5A AM1 - Fuses: "IG1 RLY", "ACC RLY"
9	10A D / L NO. 2 - Trunk release actuator
10	20A DOOR NO. 2 - Power windows
11	20A DOOR R / R - Power window (rear right)
12	20A DOOR R / L - Power window (rear left)
13	15A WASHER - Windshield washer pump
14	25A WIPER NO.2 - Windshield wipers and washer system, charging system
15	15A WIPER RR - Rear window wiper
16	25A WIPER NO. 1 - Windshield wipers
17	15A CIG - Cigarette lighter socket
18	7.5A ACC - Power side mirrors, Body Control Module (BCM), digital clock, audio system
19	5A SFT LOCK-ACC - Shift interlock system
20	10A TAIL - Parking lamps, license plate lamps, front fog lamps
21	7.5A PANEL - Headlamp switch, instrument panel backlighting, glove box lamp, Body Control Module (BCM)
22	5A WIPER-S - Charging system
23	7.5A ECU-IG NO.1 - Radiator cooling fan, Adaptive Front-lighting System (AFS), charging system, ABS, VSC
24	7.5A ECU-IG NO.2 - Parking lamps, multiport fuel injection system (SFI), Adaptive Front-lighting System (AFS)
25	7.5A ECU-IG NO.3 - Multiport fuel injection system (SFI), auto-dimming rearview mirror, sunroof, shift interlock, headlamp washers, Adaptive Front-lighting System (AFS)
26	7.5A HTR-IG - Air conditioning system, rear window defogger
27	7.5A ECU-IG NO.4 - Body Control Module (BCM), front passenger seat belt reminder, power side mirrors
28	5A ECU-IG NO.5 - Electric Power Steering (EPS)
29	7.5A IGN - Smart Entry & Start system, multiport fuel injection system (SFI), steering column lock
30	15A S / HTR - Heated front seats
31	5A METER - Instrument cluster
32	7.5A A / BAG - Supplemental Restraint System (SRS airbags)

Note: Fuses No. 1 and No. 17 supply power to the 12V auxiliary power outlet and cigarette lighter circuits.

Auxiliary fuses are mounted on top of the main junction block.

1. 30A P / SEAT - Power seat / seat heaters
2. Empty
3. Empty
4. 30A DOOR NO.1 - Power windows

Relay Box #5

• R1 - Front fog lamp relay (FR FOG)
• R2 - Security horn relay (S-HORN)
• R3 - Empty
• R4 - 12V Power outlet relay (PWR OUTLET)
• R5 - Dome lamp battery saver relay (DOME CUT)
