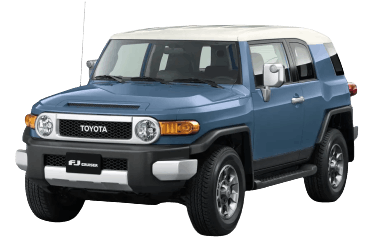

The Toyota FJ Cruiser is a modern homage to the legendary 40-Series Land Cruiser off-road vehicle produced from the 1960s through the 1980s. The "FJ" name originates from Toyota's famous F-series gasoline engine family combined with the letter "J" (standing for Jeep/4x4, a classic designation for Toyota off-roaders). This article provides detailed fuse box diagrams and relay locations for the first-generation Toyota FJ Cruiser (chassis code GSJ15; F2 platform) covering model years 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018, 2019, 2020, 2021, 2022.
Below are the locations, photos, and assignments for the power distribution centers. Fuses for the Cigarette Lighter and Fuel Pump are highlighted in bold text.
Engine Compartment
The main fuse box and two auxiliary relay blocks are located near the battery.
Main Fuse Box
General view of the main fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Description | A |
| F1 | Spare | 10 |
| F2 | 15 | |
| F3 | TOWING TAIL - Trailer tail lamps | 15 |
| F4 | OFFROAD LP - Auxiliary off-road lamps | 15 |
| F5 | Stop lamps, high-mounted stop lamp, Anti-lock Braking System (ABS), Traction Control (TRAC), Active Traction Control (A-TRAC), Vehicle Stability Control (VSC), Auto LSD, multiport fuel injection system, shift lock system | 10 |
| F6 | AUX LP - High-beam auxiliary lamps | 15 |
| F7 | OBD - On-Board Diagnostics II system | 7.5 |
| F8 | HEAD (LO RH) - Right low-beam headlamp (models with DRL) or right headlamp (models without DRL) | 10 |
| F9 | HEAD (LO LH) - Left low-beam headlamp (models with DRL) or left headlamp (models without DRL) | 10 |
| F10 | HEAD (HI RH) - Right high-beam headlamp | 10 |
| F11 | HEAD (HI LH) - Left high-beam headlamp | 10 |
| F12 | EFI NO. 2 - Multiport fuel injection system | 10 |
| F13 | DRL - Daytime Running Lights system | 7.5 |
| F14 | DEFOG - Rear window defogger | 30 |
| F15 | DEFOG NO. 2 - Multiport fuel injection system | 7.5 |
| F16 | DOME - Interior lamps, luggage compartment lamp, clock | 10 |
| F17 | RADIO NO. 1 - Audio system | 20 |
| F18 | ECU-B - Air conditioning system, multiplex communication system (CAN), Supplemental Restraint System (SRS airbags), occupant detection system | 10 |
| F19 | ALT-S - Charging system sensor | 7.5 |
| F20 | HORN - Horn | 10 |
| F21 | A/F HEATER - Air-fuel ratio sensor heater, multiport fuel injection system | 15 |
| F22 | TRN-HAZ - Turn signal lights, hazard warning flashers | 15 |
| F23 | ETCS - Electronic Throttle Control System, multiport fuel injection system | 10 |
| F24 | EFI - "EFI NO. 2" fuse, Engine Control Module (ECM) | 20 |
| F25 | DR/LCK - Power door lock system, multiplex communication system | 20 |
| F26 | TOWING - Trailer towing converter | 15 |
| F27 | RADIO NO. 2 - Audio system | 20 |
| F39 | AM1 - "ACC", "ECU-IG", "IG1", "RR WSH", "FR WIP-WSH", "4WD/DIFF", and "STA" fuses | 50 |
| F40 | J/B - "TAIL" and "PWR RELEASE" circuits | 50 |
| F41 | ABS MTR - Anti-lock Braking System (ABS), Vehicle Stability Control (VSC), Traction Control (TRAC), Active Traction Control (A-TRAC), Auto LSD | 40 |
| F42 | AM2 - "IGN" and "GAUGE" fuses, multiport fuel injection system, starter system | 30 |
| F43 | ABS SOL - ABS solenoid valve, Vehicle Stability Control (VSC), Traction Control (TRAC), Active Traction Control (A-TRAC), Auto LSD | 30 |
| F46 | ALT - "AM1", "AC 115V", "DEFOG", "DEFOG NO. 2", "STOP", "OBD", "J/B", "TOWING TAIL", "AUX LP", and "OFFROAD LP" fuses | 120 |
| F47 | HEATER - Air conditioning system, blower motor | 60 |
| Relay Assignment | ||
| R1 | Starter relay | |
| R2 | MG CLT - A/C magnetic clutch relay | |
| R3 | AUX LP - Auxiliary high-beam lamp relay | |
| R4 | HEATER - Blower motor relay | |
| R5 | TOWING TAIL - Trailer tail lamp relay | |
| R6 | A/F HEATER - Air-fuel ratio sensor heater relay | |
| R7 | EFI - Engine management main relay | |
| R8 | DOME - Interior lamp relay | |
| R9 | C/OPN - Circuit opening relay | |
| R10 | RADIO NO. 1 - Audio power relay | |
| R11 | HEAD (LO LH) - Low-beam headlamp relay | |
| R12 | HEAD (HI LH) - High-beam headlamp relay | |
| R13 | STOP LP CTRL - Stop lamp control relay | |
| R14 | HEAD - Main headlamp relay | |
| R15 | OFFROAD LP - Auxiliary off-road lamp relay | |
| R16 | DEFOG - Rear window defogger relay | |
| R17 | Toyota FJ Cruiser Fuel Pump Relay | |
Auxiliary Relay Blocks
Overview and component descriptions.
| Relay Block No. 2 | |
|
|
| F19 | DRL - Daytime running lights relay |
| F20 | DIM - Headlamp dimmer relay |
| Relay Block No. 3 | |
|
|
| F45 | 115V AC power outlet circuit fuse (80 A) |
| R18 | 115V AC power inverter relay |
Passenger Compartment
The interior fuse box is located behind the kick panel cover on the driver's side.
Diagram example from the fuse box cover.
General view of the interior fuse panel.
| Toyota FJ Cruiser Passenger Compartment Fuse Assignment | ||
|---|---|---|
|
||
| No. | Circuit / Description | A |
| F28 | IGN - Multiport fuel injection system, ABS, Vehicle Stability Control (VSC), Traction Control (TRAC), Auto LSD, SRS airbags | 10 |
| F29 | GAUGE - Instrument cluster gauges and indicators | 7.5 |
| F30 | FR WIP-WSH - Windshield wipers and washer | 30 |
| F31 | 4WD/DIFF - Four-wheel drive control system, rear differential lock | 20 |
| F32 | PWR OUTLET - 12V accessory power socket, FJ Cruiser cigarette lighter fuse | 15 |
| F33 | RR WSH - Rear window wiper and washer, multiplex communication system | 15 |
| F34 | ECU-IG - Anti-lock Braking System (ABS), Vehicle Stability Control (VSC), Traction Control (TRAC), Auto LSD, multiport fuel injection system, cruise control, power door locks, shift lock system, multiplex communication system | 10 |
| F35 | IG1 - Turn signal lights, air conditioning system, charging system, clutch start switch, ABS, TRAC, A-TRAC, VSC, Auto LSD, back-up lamps, parking assist sensors, rear differential lock, accessory power socket | 15 |
| F36 | STA - Starter system, clutch start cancel switch | 7.5 |
| F37 | TAIL - Tail lamps, license plate lamps, side marker lamps, instrument panel illumination control | 10 |
| F38 | ACC - Shift lock system, power mirrors, audio system, accessory power outlet, clock, multiplex communication system | 7.5 |
| F44 | POWER - Power windows | 30 |
| Relay Assignment | ||
| R21 | Horn relay | |
| R22 | Tail / parking lamp relay | |
| R23 | Power window relay | |
| R24 | DC power socket relay | |
