Most electrical power circuits in this crossover are protected by fuses. High-current components—such as headlamps, cooling fan motors, and the fuel pump—are switched via relays. Circuit protection devices are housed in distribution boxes located in the passenger compartment and engine compartment.

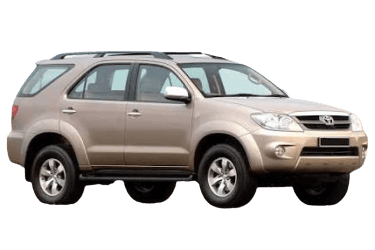

Applicable models: Toyota Fortuner (chassis codes AN50, AN60; IMV platform) model years 2004–2015.
Engine Compartment
Component Locations: 1. Fuse box; 2. Headlamp washer relay; 3. Right-hand drive: Brake control module (ECU); 4. Left-hand drive: Injector driver module (EDU); 5. Secondary air injection control module; 6. Condenser cooling fan relay (CDS FAN); 7. Right-hand drive: Injector driver module (EDU); 8. Left-hand drive: Brake control module (ECU).
Fuse Box
Location diagram.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit / Description | Rating (A) |
| 1 | Spare | 25 |
| 2 | 15 | |
| 3 | 10 | |
| 4 | Front fog lamps | 15 |
| 5 | Horn | 10 |
| 6 | Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 25 |
| 7 | Unused | - |
| 8 | Up to 06/2011: Right-hand headlamp (low beam) | 20 |
| From 06/2011: Right-hand headlamp (low beam) | 15 | |
| 9 | Up to 06/2011: Left-hand headlamp (low beam) | 20 |
| From 06/2011: Left-hand headlamp (low beam) | 15 | |
| 10 | Up to 06/2011: Right-hand headlamp (high beam) and right-hand headlamp (low beam) | 20 |
| From 06/2011: Right-hand headlamp (high beam) and right-hand headlamp (low beam) | 15 | |
| 11 | Up to 06/2011: Left-hand headlamp (high beam) and left-hand headlamp (low beam) | 20 |
| From 06/2011: Left-hand headlamp (high beam) and left-hand headlamp (low beam) | 15 | |
| 12 | Up to 08/2013: Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 7.5 |
| From 08/2013: Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 10 | |
| 13 | Unused | - |
| 14 | Up to 08/2008: Door courtesy switches, power door locks, wireless remote control system, steering angle sensor, headlamps | 7.5 |
| From 08/2008: Door courtesy switches, power door locks, wireless remote control system, steering angle sensor, headlamps | 10 | |
| 15 | Up to 08/2013: Audio system | 15 |
| From 08/2013: Audio system | 20 | |
| 16 | Interior lamps, personal/reading lamps, combination meter, clock, multi-information display, wireless remote control system, daytime running lamps, fog lamps | 7.5 |
| 17 | Exhaust emission control system | 20 |
| 18 | Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 10 |
| 19 | Charging system | 7.5 |
| 20 | Hazard warning lamps, turn signal indicators | 15 |
| 21 | Unused | - |
| 22 | Air conditioning system | 7.5 |
| 23 | Fuses: "ECU-B", "DOME", "RAD" | 30 |
| 24 | 1KD-FTV, 5L-E: Auxiliary heater | 50 |
| 1GR-FE: Headlamp washers | 50 | |
| 25 | Seat heaters | 30 |
| 26 | Radiator cooling fan | 30 |
| 27 | Up to 08/2008: ABS, TRC, VSC | 40 |
| From 08/2008: Rear air conditioning system | 40 | |
| 28 | Up to 08/2009: Air conditioning system, fuse: "A/C" | 40 |
| From 08/2009: Air conditioning system, fuse: "A/C" | 50 | |
| 29 | ABS, TRC, VSC | 40 |
| 30 | Up to 08/2008: Rear air conditioning system | 30 |
| From 08/2008: ABS, TRC, VSC | 40 | |
| 31 | Charging system, fuses: "PWR SEAT", "HLP CLN", "FR HTR", "AM1", "IG1", "PTC NO.1", "PTC NO.2", "PWR OUT", "STOP", "TAIL", "OBD" | 100 |
| 32 | Glow plug preheating system | 80 |
| 33 | Fuses: "FOG", "HORN", "EFI" | 50 |
| 34 | Starter motor, "ST", "IGN", "INJ", "MET" | 30 |
| 35 | Fuses: "H-LP RH", "H-LP LH", "H-LP RL", "H-LP LL" | 40 |
| 36 | 2TR-FE: Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 50 |
| 1KD-FTV: Headlamp washers | 50 | |
| Relays | ||
| R1 | Headlamp dimmer relay (DIM) (headlamp switch) | |
| R2 | HID: Headlamps Halogen: Cooling fan |
|
| or | ||
| R1 | Starter relay | |
| R2 | 1GR-FE, 2TR-FE : Air-fuel ratio (A/F) sensor relay 1KD-FTV, 5L-E : Glow plug relay (GLOW) |
|
| R3 | 1GR-FE, 2TR-FE: Fuel pump relay | |
Passenger Compartment
Component Locations : 1. Fuse box; 2. Four-wheel drive control unit (rear differential lock); 3. Air conditioning compressor clutch relay; 4. Turn signal flasher relay; 5. CAN junction connector; 6. Parking light relay; 7. Engine control module (ECM/ECU); 8. Wireless remote control / keyless entry receiver; 9. Headlamp leveling ECU; 10. Theft deterrent control module / engine immobilizer; 11. Relay box; 12. Transmission control module (TCM); 13. Air conditioning control unit; 14. Transponder key amplifier; 15. Shift lock control ECU; 16. Airbag sensor assembly (SRS ECU); 17. Air conditioning amplifier.
Fuse Box No. 1
Location photo (LHD models).
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| 1 | Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 15 |
| 2 | Data link connector (DLC / OBD-II) | 7.5 |
| 3 | Stop lamps, high-mount stop lamp, multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI), ABS, TRC, VSC, shift lock system | 10 |
| 4 | Instrument panel illumination, front fog lamps, headlamp leveling system, parking lamps, license plate lamps, multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI), multi-information display, daytime running lights, automatic light control system | 10 |
| 5 | Auxiliary power outlet | 15 |
| 6 | Starting system, combination meter, multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 7.5 |
| 7 | Air conditioning system | 10 |
| 8 | Combination meter, DPF system | 7.5 |
| 9 | Cigarette Lighter Fuse (Toyota Fortuner) | 15 |
| 10 | Audio system, auxiliary power outlet, clock, power mirrors, shift lock control system, multi-information display | 7.5 |
| 11 | Multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI), SRS airbag system, fuel pump | 7.5 |
| 12 | Windshield wiper and washer | 20 |
| 13 | Air conditioning system, charging system, rear differential lock system, ABS, TRC, VSC, hazard warning lamps, turn signals, back-up lamps, multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI), shift lock control system, rear window defogger, headlamps, door courtesy switches, power door locks, wireless remote control system, steering angle sensor, daytime running lights, cruise control, headlamp washers, seat heaters, heated outside rearview mirrors, multi-information display, passenger seat belt reminder indicator | 10 |
| Reverse Side | ||
|
||
| 1 | Rear differential lock system, ABS, TRC, VSC, fuses: "ACC", "CIG", "ECU-IG & GAUGE", "WIP" | 40 |
| 2 | Fuses: "PWR", "S-HTR", "4WD", "DOOR", "DEF", "MIR HTR" | 40 |
| Relays | ||
| R1 | Auxiliary power outlets | |
| R2 | Heater / blower motor | |
| R3 | Integration relay | |
Relay Box No. 11
Located behind the glove box.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | Rating (A) |
| 1 | Power door locks, power windows | 25 |
| 2 | Rear window defogger, multiport fuel injection system / sequential multiport fuel injection system (MFI/SFI) | 20 |
| 3 | Unused | - |
| 4 | Rear differential lock system, ABS, TRC, VSC | 20 |
| 5 | Power windows | 30 |
| Relays | ||
| R1 | Ignition (IG1) | |
| R2 | Rear window defogger | |
Chassis & Body Components
Component Locations:
- Rear heater relay;
- Parking assist control module (Parktronic)
