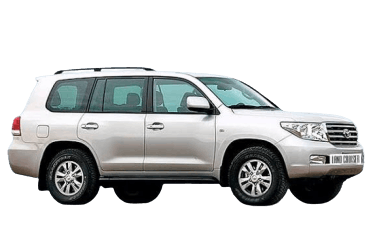

Like previous generations, the Toyota Land Cruiser 200 is built on a heavy-duty body-on-frame platform, which was upgraded to meet stricter safety standards while significantly increasing frame rigidity and torsional strength. Up front, the SUV features a coil-spring double-wishbone suspension, while the rear utilizes a live axle with control arms and a sway bar. The overall styling retains the model's signature rugged profile, updated with modern headlight assemblies and flared side body panels for a wider stance. For the North American market, the Land Cruiser 200 is powered by a 5.7-liter V8 engine featuring multi-port fuel injection and Dual VVT-i.
This article provides detailed fuse box diagrams and circuit assignments for the Seventh generation Toyota Land Cruiser 200 (chassis code J200), covering model years 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, and 2021.
Passenger Compartment
Main Fuse Box
Located on the driver's side, below the instrument panel behind a removable trim cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | A |
| 1 | Cigarette Lighter / Power Outlet | 15 |
| 2 | Reverse lamps (Backup lights) | 10 |
| 3 | Audio system, clock, power door locks, Smart Key / "Entry & Start" system, fog lamps, headlights, instrument illumination, interior lights, multi-information display, navigation system, parking assist, power windows, rear fog lamps, power mirrors, power sunroof, clearance lamps, anti-theft system | 7.5 |
| 4 | Instrument panel backlighting, tail lamps | 10 |
| 5 | Anti-lock Braking System (ABS), air conditioning, Active Traction Control (A-TRC), auto-dimming rearview mirror, clock, Crawl Control, power door locks, Smart Key system, fog lamps, headlights, Hill-start Assist Control (HAC), interior lighting, power windows, rear fog lamps, power mirrors, power sunroof, stop lamps, clearance lamps, anti-theft system, Variable Gear Ratio Steering (VGRS), Vehicle Stability Control (VSC) | 10 |
| 6 | Electric winch (if equipped) | 5 |
| 7 | Cool box / Refrigerator, A/C condenser fan, A/C compressor magnetic clutch, rear window defogger | 10 |
| 8 | Tail lamps, license plate lamps, fog lamps, trailer wiring harness, clearance lamps | 15 |
| 9 | Windshield wipers | 30 |
| 10 | Windshield washers | 20 |
| 11 | Rear window wiper / washer | 15 |
| 12 | Four-wheel drive system (4WD) | 20 |
| 13 | LH-IG : ABS, A-TRC, charging system, Crawl Control, cruise control, Downhill Assist Control (DAC), automatic transmission control system, engine control module (ECM), windshield wiper de-icer, rear window defogger, Hill-start Assist Control (HAC), mirror heaters, power driver seat, turn signals and hazard warning lamps, Vehicle Stability Control (VSC) | 5 |
| 14 | ECU-IG No. 1: ABS, A-TRC, audio system, Crawl Control, Downhill Assist Control (DAC), windshield wipers and washers, headlight cleaners, Hill-start Assist Control (HAC), multi-information display, parking assist, power driver seat, power tilt and telescopic steering column, Pre-Collision System (PCS), Vehicle Stability Control (VSC) | 5 |
| 15 | Power sunroof | 25 |
| 16 | Rear right power window | 20 |
| 17 | Heated exterior mirrors, rear window defogger, power mirrors | 15 |
| 18 | Rear left power window | 20 |
| 19 | Front left power window | 20 |
| 20 | Front right power window | 20 |
| 21 | Fog lamps | 7.5 |
| 22 | Air conditioning system | 7.5 |
| 23 | Spare fuse | 5 |
| 24 | Power tilt and telescopic steering column | 15 |
| 25 | Power front seats | 30 |
| 26 | Auxiliary power outlet / Accessory socket | 15 |
| 27 | Data Link Connector 3 (DLC3 / OBD-II) | 7.5 |
| 28 | Pre-Collision System (PCS / PSB) | 30 |
| 29 | Power door locks, Smart Key system, fog lamps, headlights, interior lighting, power windows, rear fog lamps, power sunroof, clearance lamps, anti-theft system, power mirrors | 25 |
| 30 | Power front seats | 30 |
| 31 | Unused | 15 |
Auxiliary Fuse Box
Located on the front passenger side lower dashboard.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component | A |
| 1 | Unused: RSF LH, B/DR CLSR RH, B/DR CLSR LH, RSF RH | 30 |
| 2 | 30 | |
| 3 | 30 | |
| 4 | 30 | |
| 5 | Double door lock system (if equipped) | 20 |
| 6 | Active Height Control system (AHC / ANS-B No. 1) | 20 |
| 7 | Active Height Control system (AHC / ANS-B No. 2) | 10 |
| 8 | ECU-IG No. 4 : Variable Gear Ratio Steering (VGRS), Active Height Control (AHC), Adaptive Variable Suspension (AVS) | 5 |
| 9 | Unused | 10 |
| 10 | Front seat heaters | 20 |
| 11 | Adaptive Front-lighting System (AFS) [Unused] | 5 |
| 12 | ECU-IG No. 3 [Unused] | 5 |
| 13 | Audio system, multi-information display | 10 |
Engine Compartment
Main Fuse Box
Located on the right (passenger) side of the engine compartment.
Fuse box cover access view.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit | A |
| 1 | A/F (Gasoline models): Cruise control, automatic transmission control, engine management system (ECM) | 15 |
| EFI MAIN2 (Diesel models): Cruise control system, automatic transmission control system, engine management system (ECM) | 15 | |
| 2 | Horn | 10 |
| 3 | Cruise control system, automatic transmission control system | 25 |
| 4 | Electronic fuel injection (EFI) system, ignition system | 30 |
| 5 | Rear air conditioning system (if equipped) | 50 |
| 6 | Front left seat ventilation system (if equipped) | 25 |
| 7 | Second-row seat heaters (if equipped) | 20 |
| 8 | Windshield wiper de-icer | 20 |
| 9 | A/C condenser fan | 25 |
| 10 | Trailer tail lamps (if equipped) | 30 |
| 11 | Power second-row seats (if equipped) | 30 |
| 12 | Alternator noise filter capacitor | 10 |
| 13 | Fog lamps | 15 |
| 14 | Smart Key system, engine immobilizer / anti-theft system | 5 |
| 15 | Front right seat ventilation system (if equipped) | 25 |
| 16 | Stop lamps, ABS, Vehicle Stability Control (VSC), trailer wiring harness, automatic transmission control system, 4WD system, anti-theft system | 15 |
| 17 | (Gasoline models) Trailer brake controller | 30 |
| (Diesel models) Idle speed boost system (Power Heat) | 7.5 | |
| 18 | (Diesel models) Rear heater blower motor | 50 |
| 19 | (Diesel models) PTC electric heater No. 1 | 50 |
| 20 | (Diesel models) PTC electric heater No. 2 | 50 |
| 21 | (Diesel models) PTC electric heater No. 3 | 50 |
| 22 | Spare fuse | 40 |
| 23 | Trailer towing wiring harness | 40 |
| 24 | Variable Gear Ratio Steering (VGRS) | 40 |
| 25 | Headlight cleaners (if equipped) | 30 |
| 26 | Rear window defogger | 30 |
| 27 | Active Height Control (AHC), Adaptive Variable Suspension (AVS) | 60 |
| 28 | Front heater blower motor | 50 |
| 29 | Unused | 30 |
| 30 | LH-J/B : Anti-theft system, rear fog lamps, clearance lamps, automatic lighting system, power tailgate system, Smart Key system, fog lamps, interior lighting, turn signal cancel mechanism, trailer wiring harness | 150 |
| 31 | (Except models with 1GR-FE engine) Charging system | 180 |
| 32 | (Gasoline models) Engine control module (ECM), automatic transmission control system, cruise control system | 50 |
| (Diesel models) Engine control module (ECM), automatic transmission control system, cruise control system | 80 | |
| 33 | (Gasoline models) Unused | 50 |
| (Diesel models) Engine control module (ECM), automatic transmission control system, cruise control system | 80 | |
| 34 | Headlights, automatic headlight leveling system | 40 |
| 35 | Anti-lock Braking System (ABS No. 1) | 50 |
| 36 | Anti-lock Braking System (ABS No. 2) | 30 |
| 37 | Starter system (ST) | 30 |
| 38 | Engine immobilizer system, Smart Key system | 7.5 |
| 39 | AM2 : Power door locks, Smart Key system, fog lamps, headlights, interior lighting, power windows, rear fog lamps, power sunroof, clearance lamps, anti-theft system, power mirrors | 5 |
| 40 | Smart Key system, interior lamps, anti-theft system | 7.5 |
| 41 | ECU-B2: Customized body electronics system | 5 |
| 42 | Unused | 5 |
| 43 | Unused | 7.5 |
| 44 | Trailer towing wiring harness | 30 |
| 45 | Power door locks, Smart Key system, fog lamps, headlights, interior lamps, power windows, rear fog lamps, power sunroof, tail lamps, anti-theft system, power mirrors | 25 |
| 46 | Electric steering lock system | 20 |
| 47 | Turn signal lamps, hazard warning lamps | 15 |
| 48 | EFI MAIN2 (Gasoline models): Engine control module (ECM), automatic transmission control system, cruise control system | 20 |
| F/PUMP (Diesel models): Fuel pump | 20 | |
| 49 | Engine control module (ECM), automatic transmission control system, cruise control system | 10 |
| 50 | ALT-S charging system sensor | 5 |
| 51 | Audio head unit / Stereo | 30 |
| 52 | Navigation system (if equipped) | 10 |
| 53 | ECU-B1: ABS, Active Height Control (AHC), Adaptive Variable Suspension (AVS), A-TRC, instrument cluster, cool box, Crawl Control, cruise control, double door lock system, Downhill Assist Control (DAC), automatic transmission control, engine control module (ECM), Smart Key system, fog lamps, windshield wipers/washers, headlights, Hill-start Assist Control (HAC), 4WD system, parking assist, power tilt/telescopic steering column, Pre-Collision System (PCS), rear fog lamps, power sunroof, SRS airbag system, tail lamps, anti-theft system, Vehicle Stability Control (VSC), Variable Gear Ratio Steering (VGRS) | 5 |
| 54 | Clock, interior lamps | 5 |
| 55 | Left headlight (high beam) | 15 |
| 56 | Left headlight (low beam), headlight leveling control unit | 15 |
| 57 | INJ: Fuel injection system, ignition system | 10 |
| 58 | MET : ABS, Active Height Control (AHC), Adaptive Variable Suspension (AVS), A-TRC, charging system, instrument cluster, Crawl Control, cruise control, Downhill Assist Control (DAC), automatic transmission control, engine control module (ECM), Smart Key system, fog lamps, windshield wipers/washers, headlights, Hill-start Assist Control (HAC), interior illumination, 4WD system, parking assist, Pre-Collision System (PCS), rear fog lamps, power sunroof, SRS airbag system, clearance lamps, anti-theft system, VGRS, Vehicle Stability Control (VSC) | 5 |
| 59 | IGN : ABS, A-TRC, Crawl Control, cruise control, Downhill Assist Control (DAC), automatic transmission control, engine control module (ECM), Smart Key system, Hill-start Assist Control (HAC), SRS airbag system, anti-theft system, Vehicle Stability Control (VSC) | 10 |
| 60 | Right headlight (high beam) | 15 |
| 61 | Right headlight (low beam) | 15 |
| 62 | EFI No. 2: Cruise control system, automatic transmission control system, engine control module (ECM) | 7.5 |
| 63 | Rear air conditioning system (if equipped) | 7.5 |
| 64 | (Diesel models) Cruise control system, automatic transmission control system, engine control module (ECM) | 7.5 |
| 65 | Heated exterior mirrors | 5 |
| Relay Box Assignments | |
|---|---|
|
|
| No. | Description |
| 1 | Rear window defogger |
| 3 | Trailer clearance lamps |
| 4 | Auxiliary ignition circuit |
| 8 | (Gasoline models) Fuel pump control unit relay |
| 9 | Anti-theft system |
| 10 | Fog lamps |
| 12 | Starter interlock relay |
| 13 | A/C condenser fan motor |
| 14 | Heater blower motor |
| 15 | Stop lamps |
| 16 | A/C compressor magnetic clutch |
| 17 | Windshield wiper de-icer |
| 18 | Auxiliary heater |
| 19 | Starter motor |
| 20 | Headlight high beam |
| 21 | Headlight low beam |
| 22 | Active height / suspension control system |
Auxiliary Fuse Block
Located on the left (driver) side of the engine compartment.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Protected Component | A |
| 1 | HWD1 (Headlight Washer No. 1) | 30 |
| 2 | TOW BRK (Trailer Brake Controller) | 30 |
| 3 | RR P/SEAT (Power Rear Seats) | 30 |
| 4 | PWR HTR (Power Heater / PTC) | 7.5 |
| 5 | Windshield wiper de-icer | 20 |
| 6 | Alternator noise filter capacitor | 10 |
| 7 | Security alarm horn | 5 |
| 8 | Seat heaters | 25 |
| 9 | Fuel heater (Diesel models) | 10 |
| 10 | Trailer lighting | 30 |
| 11 | HWD2 (Headlight Washer No. 2) | 30 |
